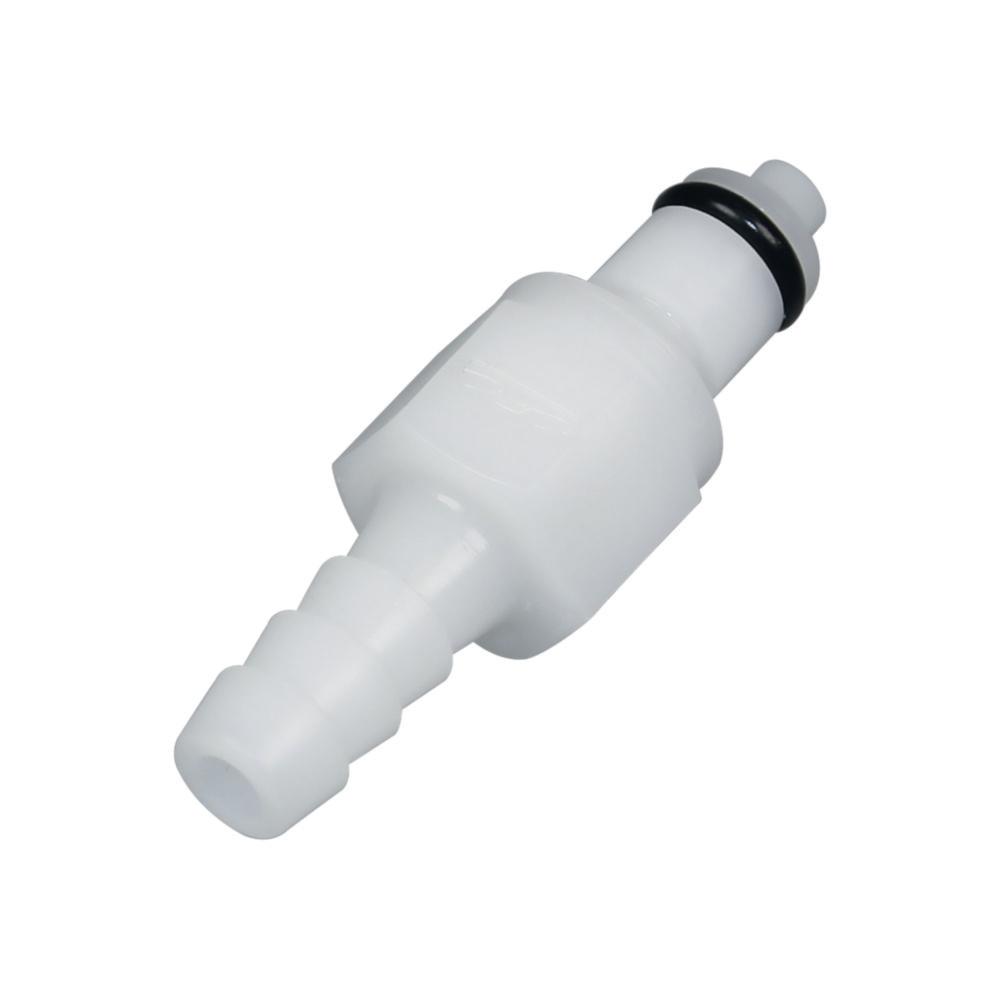

Colder 3/16" Hose Barb Valved In-Line Acetal Coupling Insert
Product overview
The Colder 3/16" Hose Barb Valved In-Line Acetal Coupling Insert is designed for standard applications such as optical testing equipment, analytical equipment for chemicals, medical equipment, and gas testing systems. The coupling elements are fitted with a valve, allowing both sides to close tightly when disconnected.
Key Features:
- Brand: Colder
- Product Type: Valved in-line coupling insert
- Connection: 3/16" hose barb
- Material: Acetal main components and stop valve
- Component Material: Stainless steel 316 unlocking button, springs, and pins
- O-Ring Material: Buna-N
- Operation: Unlocking button for one-handed operation
- Design: Integrated connections for short installation lengths and fast installation
- Valve: With stop valve
- Compatibility: Combinable with MC Series couplings
- Application: Suitable for optical testing, analytical chemical equipment, medical equipment, and gas testing systems
This Colder acetal coupling insert is suitable for applications requiring a compact, valved connection with secure shut-off when disconnected.
Frequently Asked Questions
1. What is the Colder 3/16" Hose Barb Valved In-Line Acetal Coupling Insert used for?
It is designed for standard applications such as optical testing equipment, analytical equipment for chemicals, medical equipment, and gas testing systems. The coupling elements are fitted with a valve, allowing both sides to close tightly when disconnected.
2. Is the Colder 3/16" Hose Barb Valved In-Line Acetal Coupling Insert suitable for optical testing, analytical chemical equipment, medical equipment, and gas testing systems?
Yes. It is designed for optical testing, analytical chemical equipment, medical equipment, and gas testing systems, and offers a connection of 3/16" hose barb to support this kind of work.
3. What connection does the Colder 3/16" Hose Barb Valved In-Line Acetal Coupling Insert have?
It has a connection of 3/16" hose barb, and is supplied under manufacturer part number PMCD2203.
4. What is the Colder 3/16" Hose Barb Valved In-Line Acetal Coupling Insert made from and what features does it include?
It is made from acetal main components and stop valve. It is compatible with combinable with MC Series couplings. It also offers stainless steel 316 unlocking button, springs, and pins, buna-N and unlocking button for one-handed operation.
5. How does the Colder 3/16" Hose Barb Valved In-Line Acetal Coupling Insert compare with the SCAT Quick Coupling Set II, Includes 360179 Quick Couplings (f) & 360190 Quick Coupling (m)?
For tubing applications, the Colder 3/16" Hose Barb Valved In-Line Acetal Coupling Insert is differentiated by connection 3/16" hose barb and material Acetal main components and stop valve. The SCAT Quick Coupling Set II, Includes 360179 Quick Couplings (f) & 360190 Quick Coupling (m) from SCAT is another named option in the same product category. Compare the required specifications, compatibility and workflow requirements before selection.
Product Specifications
- HS Code #39174000
- ColourWhite
- ConnectionTubing nozzle
- Connection int. Ø3/16", 4,8 mm
- Length47.8 mm
- MaterialAcetal
- Max. temp. resistance82 °C
- Min. temp. resistance-40 °C
- Nominal width1/8"
- Operating pressure8.3 bar
- Temperature resistance-40 ... 82 °C
- TypePMCD2203
- UNSPSC41121815
