Representative Image

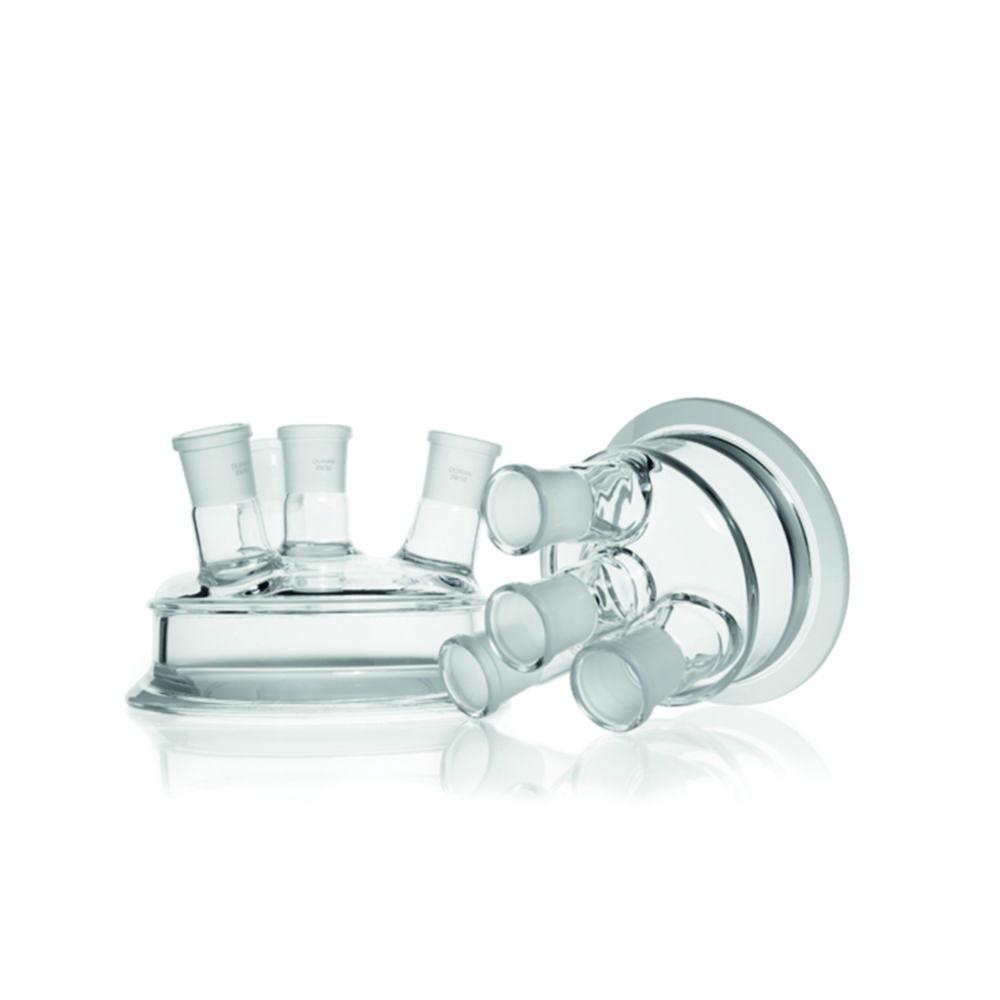

DWK Duran Flat Flange Lid, DN 100, Center Neck NS 29/32, Side Necks 3 x NS 29/32 Angled

DN

Ground size centre neck

Height

Side necks oblique

Side necks straight

Specifications

Compare models
HS Code #
70172000
Autoclavable
Yes
DN
100
Ground size centre neck
NS 29/32
Height
125 mm
Material
DURAN® glass
Max. pressure
1 bar
Side necks oblique
3 x NS29/32
UNSPSC
41104812

$632.56

Inc. GST

Available soon

Product description

The DWK Duran Flat Flange Lid, DN 100, is designed for use with flat flange vessels in laboratory applications. Manufactured from high-quality Duran borosilicate glass 3.3, this lid offers exceptional chemical and thermal resistance. It features a central neck (NS 29/32) and three angled side necks (NS 29/32), allowing for versatile connections to various laboratory apparatus. The lid ensures a tight closure due to standard ground joints and is autoclavable for sterilization, making it ideal for reactions, distillations, and evaporations requiring pressure or vacuum conditions.

Key Features:

  • Brand: DWK Duran
  • Material: Duran borosilicate glass 3.3 for superior chemical and thermal resistance
  • Design: DN 100 flange with central neck NS 29/32 and three angled side necks NS 29/32
  • Dimensions: Flange outer diameter 138 mm; height 125 mm
  • Operating Pressure: Up to 1 bar at 250°C
  • Standards Compliance: Complies with Glass Type I / neutral glass as per USP, EP, and JP
  • Autoclavable: Suitable for sterilization processes

The DWK Duran Flat Flange Lid, DN 100, Center Neck NS 29/32, Side Necks 3 x NS 29/32 Angled is a practical choice for laboratories requiring dependable quality, reliable performance, and consistent day-to-day use.
