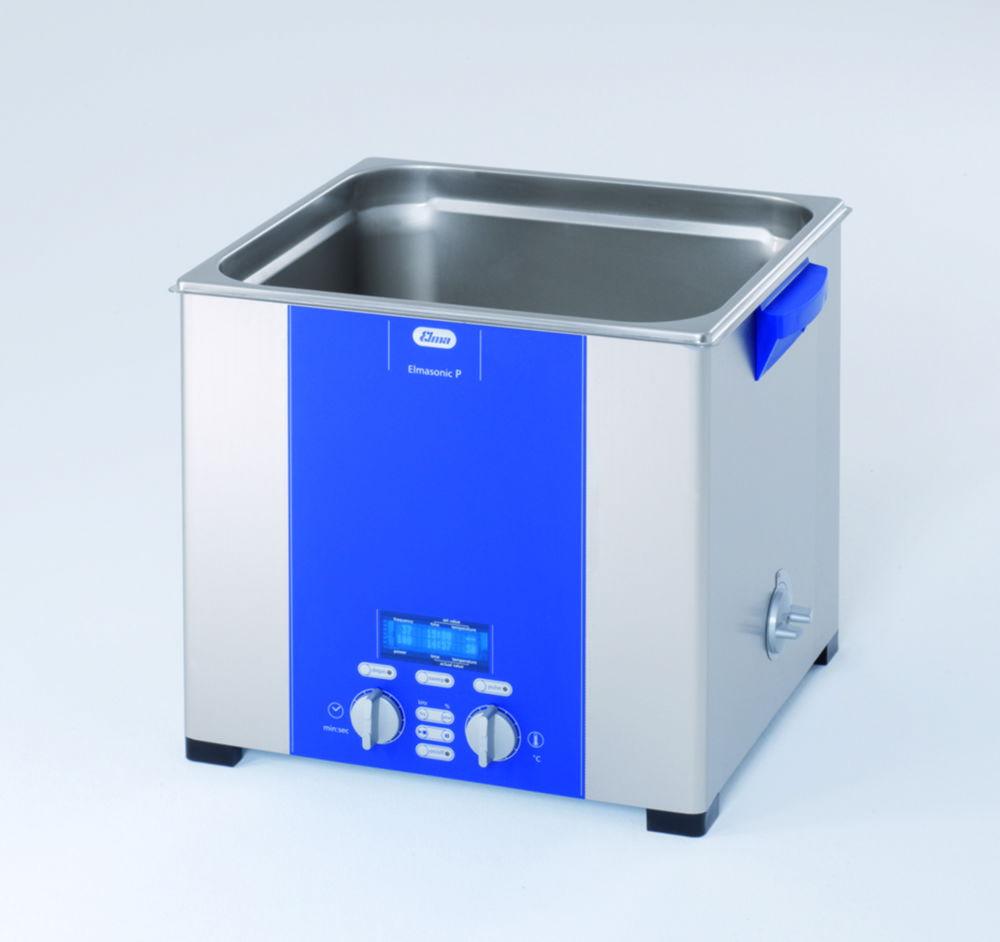

Elma Elmasonic P 180 H Ultrasonic Cleaning Unit 18.0L 390x340x321mm, 37/80 kHz, 230V
Sold by: John Morris Scientific Pty Ltd
Available Soon
Part #: 6.242 715Manufacturer #: 101 3804-001
Estimated shipping time:Contact us via live chat or via contact us page
See the available (5) variant productsProduct overview
The Elma Elmasonic P 180 H Ultrasonic Cleaning Unit offers advanced cleaning technology with an 18.0L capacity. With adjustable ultrasonic frequencies of 37/80 kHz, this unit is ideal for delicate and precise cleaning of laboratory instruments and components. It features efficient power regulation, pulse and sweep functions, and a degas function for optimized cleaning results in laboratory environments.
Key Features:
- Brand: Elma
- Capacity: 18.0 liters
- Ultrasonic Frequency: 37 kHz (standard) and 80 kHz (high frequency for delicate items)
- Dimensions: 390x340x321mm
- Power: 330W ultrasonic power with 1000W heating capacity
- Voltage: 230V
- Temperature Range: 30°C to 80°C
- Functions: Pulse, Sweep, and Degas functions
This unit is perfect for laboratories that require precise cleaning of instruments, offering flexibility and power to ensure spotless results every time.
Product Specifications
- HS Code #84798997
- Depth int.270 mm
- Ext. dim. (WxDxH)390 x 340 x 321 mm
- Ext. depth340 mm
- Ext. height321 mm
- Ext. width390 mm
- Heating capacity1000 W
- Height int.195 mm
- Int. Dim. (WxDxH)300 x 270 x 195 mm
- Int. width300 mm
- IP codeIP 20
- Max. temperature80 °C
- Min. temperature30 °C
- Nominal capacity17.8 l
- OperationPush-buttons/rotary knobs
- Plug typeEU
- Temperature30 ... 80 °C
- TypeP 180 H
- Type of auxiliary energyMains connection
- Ultrasonic frequency37 kHz
- Ultrasonic power330 W
- Warranty2 years
- Weight8.5 kg
- With stopcockYes
- Manufacturer Article Number101 3804-001
Downloads
- Brochure_Elmasonic_P_ENDownload
- PP_Elmasonic_P30H_EN Data SheetDownload
- PP_Elmasonic_P30SE_EN Data SheetDownload
- PP_Elmasonic_P60H_EN Data SheetDownload
- PP_Elmasonic_P70H_EN Data SheetDownload
- PP_Elmasonic_P120H_EN Data SheetDownload
- PP_Elmasonic_P180H_EN Data SheetDownload
- PP_Elmasonic_P300H_EN Data SheetDownload
- Elma P Series Instruction ManualDownload
Elma Elmasonic P 180 H Ultrasonic Cleaning Unit 18.0L 390x340x321mm, 37/80 kHz, 230V
$4,541.25
Variant products
Products related to this item (5)
product | Mfr # | Part # | Product name | Plug type | Type | Price | Availability | |
101 3810-001 | 7.653 627 | Elma Elmasonic P 300 H Ultrasonic Cleaning Unit 28.0 Ltr. 568x340x321 mm, 37/80 KHz, 230 V | EU | P 300 H | $5,273.26 | |||
101 3737-001 | 6.240 431 | Elma Elmasonic P 30 H Ultrasonic Cleaning Unit, 2.75 L, 300x179x221 mm, 37/80 KHz, 230 V | EU | P 30 H | $1,984.10 | |||
101 3761-001 | 6.250 079 | Elma Elmasonic P 60 H Ultrasonic Cleaning Unit 5.75 L, 365x186x271 mm, 37/80 kHz, 230 V | EU | P 60 H | $2,735.74 | |||
101 3735-001 | 6.240 062 | Elma Elmasonic P 70 H Ultrasonic Cleaning Unit, 6.9L, 568x179x221mm, 37/80 kHz, 230V | EU | P 70 H | $2,914.33 | |||
101 3777-001 | 6.240 091 | Elma Elmasonic P 120 H Ultrasonic Cleaning Unit, 12.75L, 365x278x321 mm, 37/80 KHz, 230V | EU | P 120 H | $4,123.23 |
