Representative Image

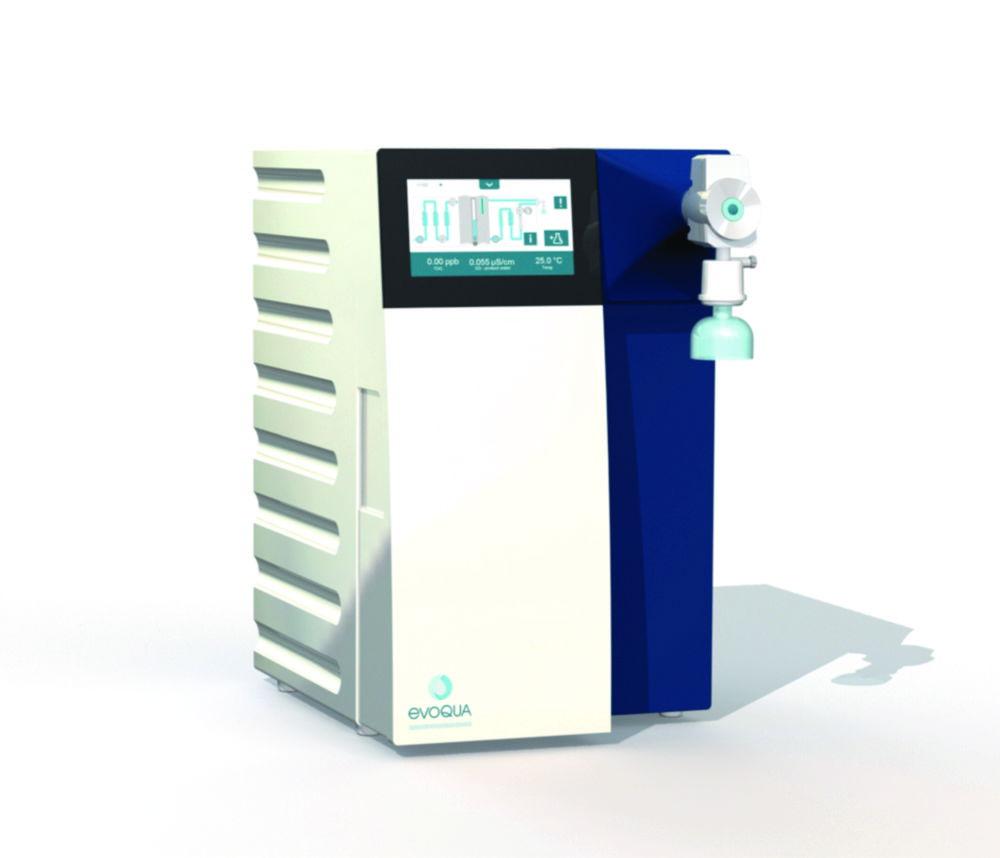

Evoqua Ultra Clear™ TP ED UV UF TM

Brand:Evoqua

Type

Specifications

Compare models
Depth
550 mm
Dimensions (WxDxH)
340 x 550 x 535 mm
Power supply frequency
50/60 Hz
Height
535 mm
Max. pressure
5 bar
Max. voltage
240 V
Min. pressure
0.1 bar
Min. voltage
100 V
Power supply
100 ... 240 V, 50/60 Hz
Pressure
0.1 ... 5 bar

$17,189.01

Inc. GST

Available soon

Product description

The Evoqua Ultra Clear™ TP ED UV UF TM is an advanced ultrapure water purification system designed for laboratories requiring Type I water from deionized water sources. This system integrates ultraviolet (UV) sterilization, ultrafiltration (UF), and Total Organic Carbon (TOC) monitoring to ensure consistent high-quality water output. It is optimized for deionised water feed with conductivity less than 20 µS/cm and delivers up to 2 L/min of ultrapure water. The system includes user-guided, integrated disinfection and energy-saving modes, with temperature compensation that can be switched off. Wall mounting capability allows flexible installation.

Key Features:

  • Brand: Evoqua
  • Model: Ultra Clear™ TP ED UV UF TM
  • Part Number: W3T276074
  • Water Quality: Delivers ASTM Type I water with resistivity of 18.2 MΩ·cm (0.055 µS/cm)
  • TOC Level: < 3 ppb
  • Endotoxin Content: < 0.001 EU/ml
  • Flow Rate: Up to 2 L/min for ultrapure water
  • Display: 7" multi-color touch screen for intuitive operation
  • Connectivity: USB, SD card, printer, and Modbus interface
  • Dimensions (W x D x H): 340 x 550 x 535 mm
  • Weight: 23 kg
  • Power Supply: 100–240 V, 50/60 Hz
  • Additional Features: Integrated disinfection mode, energy-saving mode, temperature compensation can be switched off, wall mounting possible

Scope of Supply:

  • Ultrapure water system
  • 1 set of modules and filters

This system is ideal for applications requiring high-purity water, such as molecular biology, analytical chemistry, and microbiology, ensuring reliable and efficient performance.



Frequently Asked Questions

1. What is the Evoqua Ultra Clear™ TP ED UV UF TM used for?

It is an advanced ultrapure water purification system designed for laboratories requiring Type I water from deionized water sources. This system integrates ultraviolet (UV) sterilization, ultrafiltration (UF), and Total Organic Carbon (TOC) monitoring to ensure consistent high-quality water output. It is optimized for deionised water feed with conductivity less than 20 µS/cm and delivers up to 2 L/min of ultrapure water. The system includes user-guided, integrated disinfection and energy-saving modes, with temperature compensation that can be switched off. Wall mounting capability allows flexible installation.

2. Is this product suitable for laboratories requiring Type I water from deionized water sources?

Yes. It is designed for laboratories requiring Type I water from deionized water sources, and offers a TOC level of < 3 ppb and an endotoxin content of < 0.001 EU/ml to support this kind of work.

3. What TOC level and endotoxin content does this product have?

It has a TOC level of < 3 ppb, an endotoxin content of < 0.001 EU/ml and a flow rate of up to 2 L/min for ultrapure water.

4. What water quality and connectivity does this product offer?

It offers the following key features: ASTM Type I water with resistivity of 18.2 MΩ·cm (0.055 µS/cm), USB, SD card, printer, and Modbus interface, integrated disinfection mode, energy-saving mode, temperature compensation can be switched off, wall mounting possible and ultrapure water system.
