Representative Image

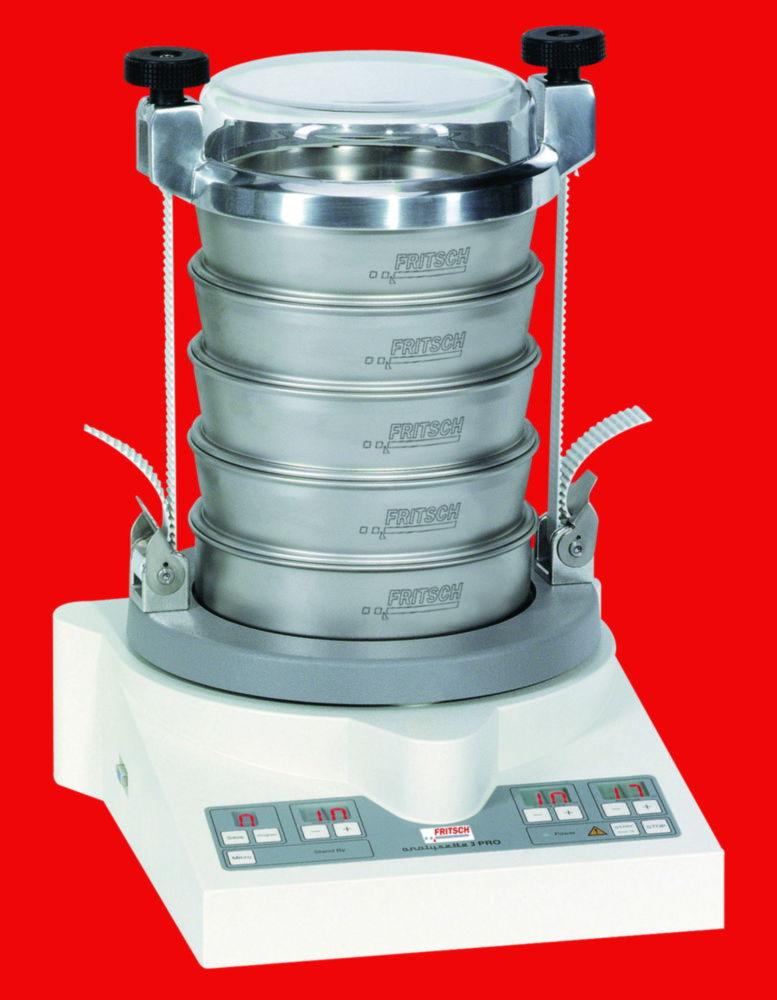

Fritsch Vibratory Sieving Machine "Analysette 3" Pro without Accessories, for Sieve Diameter 200 mm or 8" Max no. of Sieves 10x50 or 20x25 mm High

Brand:Fritsch

Amplitude

Min. amplitude

Type

Specifications

Compare models
HS Code #
84798200
Amplitude
0.1 ... 3 mm
Depth
400 mm
Dimensions (WxDxH)
370 x 400 x 200 mm
Power supply frequency
50/60 Hz
Height
200 mm
Max. amplitude
3 mm
Max. feed quantity
2000 g
Max. measurement
63 mm
Max. sieve stack height
550 mm
Max. sieve stack mass
3 kg

$9,261.44

Inc. GST

Available soon

Product description

The Fritsch Vibratory sieving machine "analysette 3" Pro, without accessories, is designed for high-precision sieving of dry, coarse to fine powders. This model is suitable for sieve diameters of up to 200 mm (8 inches) and can accommodate up to 10 sieves of 50 mm high or 20 sieves of 25 mm high. The machine is ideal for material analysis in research, quality control, and laboratories requiring high throughput and precision in particle size distribution testing.

Key Features:

  • Brand: Fritsch
  • Model: Analysette 3 Pro
  • Sieve Diameter: 200 mm (8 inches)
  • Max No. of Sieves: 10x50 mm high or 20x25 mm high
  • Configuration: Supplied without accessories for flexible use
  • Application: Ideal for sieving powders, granulates, and bulk materials in research and industrial laboratories

This sieving machine offers reliable, reproducible results with easy operation, ensuring effective material classification for your laboratory needs.

Accessories

Accessories for sieve shakers ANALYSETTE 3 PRO and SPARTAN, for dry sieving

ProductDescriptionUNSPSCMfr#Part#AvailabilityPrice
Clamping lid, Plexiglas for 8" / 200mm diam. sieves4110500031.2020.009.826 404$919.07
Sieve pan, stainless steel 200mm diam., 50mm high4110500031.1000.039.826 444$284.65
Sieve pan, stainless steel 8" diam., 2" high4110500031.1020.039.826 406$284.65
Interposed sieve pan made of stainless steel 200mm diam., 50mm height4110500031.1300.039.826 939$383.26
Clamping lid, POM plastic (without window) for all test sieves up to 200mm / 8" diam.4110500031.2050.009.826 405$615.82
Interposed sieve pan made of stainless steel 8" diam., 2" height4110500031.1320.039.826 940$383.26
Sieve tensioning system TorqueMaster (incl. clamping lid and electrical tool)4110500031.2100.009.826 943$5,086.54

Accessories for sieve shakers ANALYSETTE 3 PRO and SPARTAN, for wet sieving

ProductDescriptionUNSPSCMfr#Part#AvailabilityPrice
Sieve pan, stainless steel with outlet, 8" diam., 2" high4110500031.1120.039.826 449$1,036.28
Interposed sieve ring with 3 nozzles for test sieves 200mm diam.4110500031.0240.009.826 447$3,116.29
Sieve pan, stainless steel with outlet 200mm diam., 50 mm high4110500031.1100.039.826 446$1,036.28
Clamping lid, Plexiglas with 2 rotation nozzles for test sieves 8" / 200mm diam.4110500031.0400.009.826 401$2,426.06
Interposed sieve ring with 3 nozzles for test sieves 8" diam.4110500031.0250.009.826 450$3,116.29

Compare similar models

Vibratory sieving machine "analysette 3",Pro w/o accessories,for sieve diameter 200 mm or 8" max no. of sieves 10x50 or 20x25 mm high

Manufacturer P/N

03.7020.00

Part Number

9.826 402

Manufacturer

Fritsch

Amplitude

0.1 ... 3 mm

Vibratory sieving machine "analysette 3",Spartan w/o accessories,for sieve diameter 200 mm or 8", max no. of sieves 10x50 mm or 20x25 mm high

Manufacturer P/N

03.8020.00

Part Number

9.826 403

Manufacturer

Fritsch

Amplitude

0.5 ... 3 mm

Frequently asked questions

It is designed for high-precision sieving of dry, coarse to fine powders. This model is suitable for sieve diameters of up to 200 mm (8 inches) and can accommodate up to 10 sieves of 50 mm high or 20 sieves of 25 mm high. The machine is ideal for material analysis in research, quality control, and laboratories requiring high throughput and precision in particle size distribution testing.
