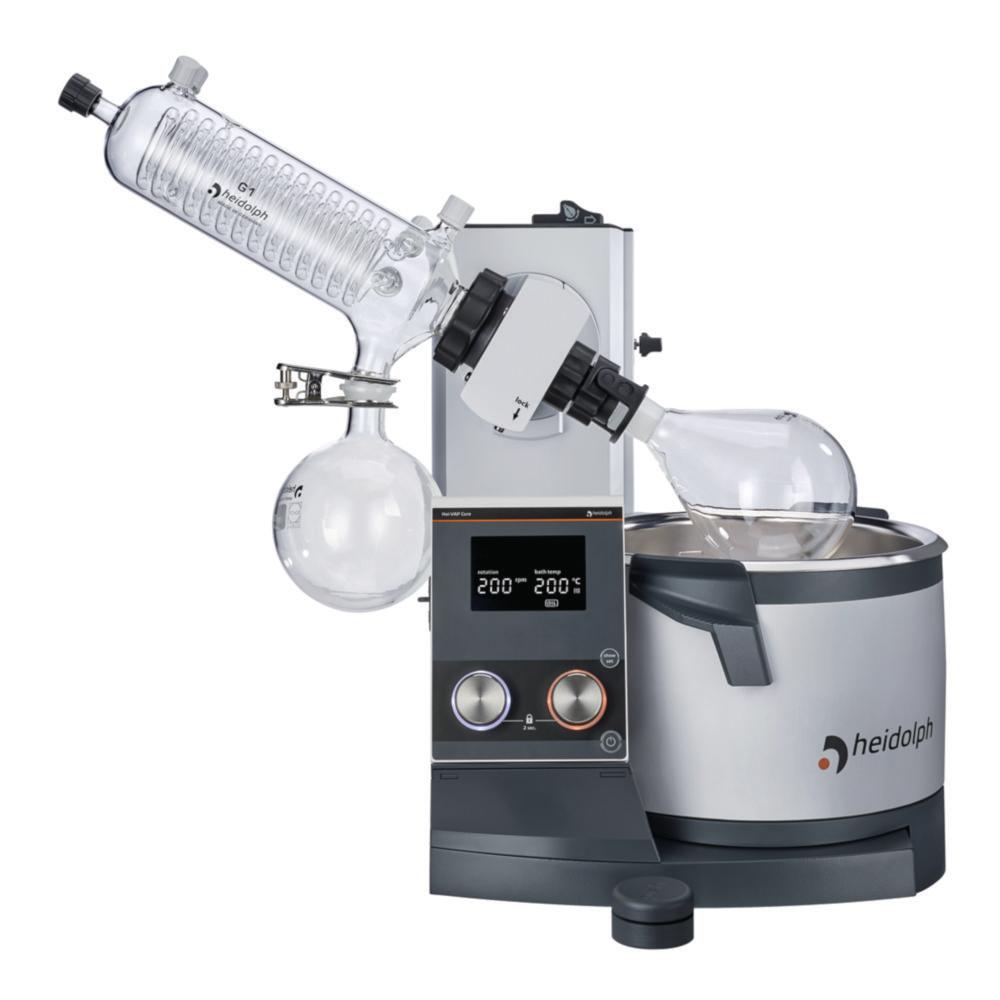

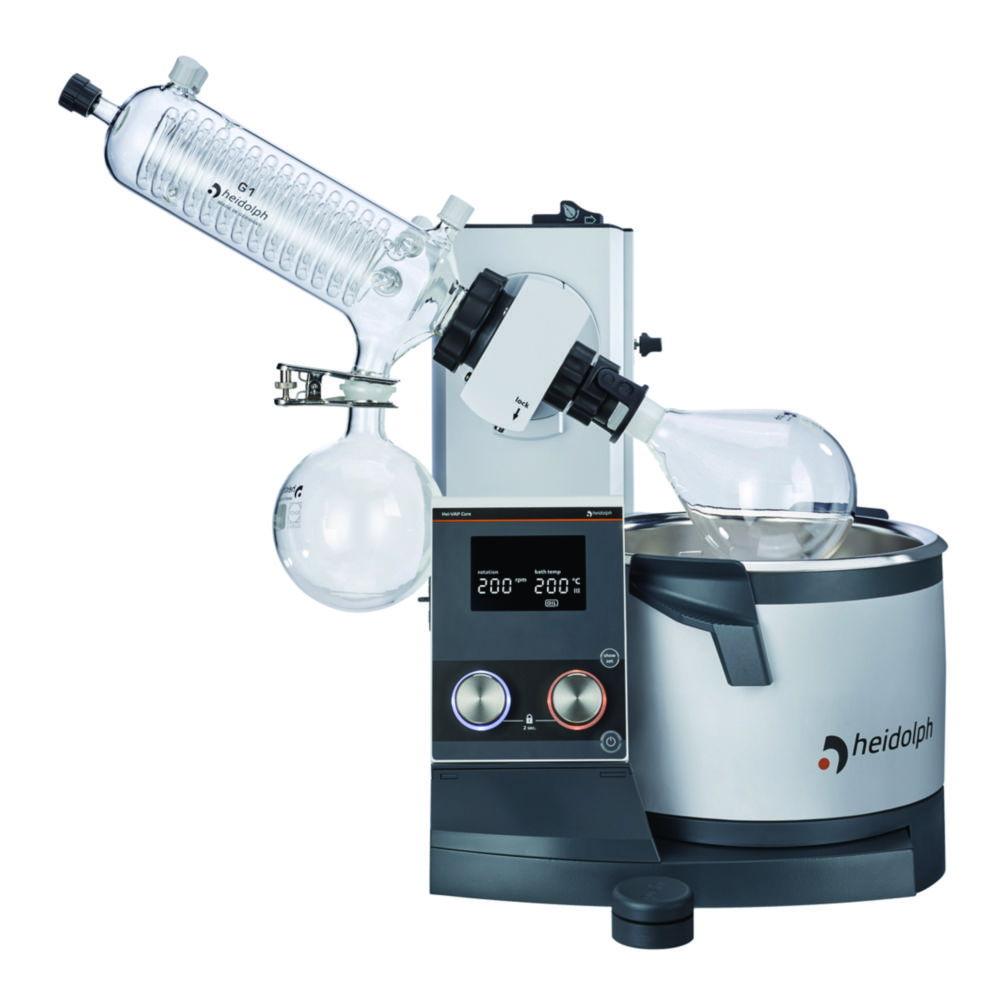

Heidolph Rotary Evaporator Hei-VAP Core HL G1, Hand Lift, with G1 Diagonal Cooler G1 (EU-Plug)

Brand:Heidolph

Glassware

Plug type

Type

Specifications

Compare models
HS Code #
84194000
Condenser
Diagonal
Cooling surface
1400 cm²
Glassware
Without coating
Lift
Manual
Max. speed
280 1/min
Max. temperature
210 °C
Max. voltage
230 V
Max. volume bath
4.5 l
Min. speed
10 1/min
Min. temperature
RT

$8,577.67

Inc. GST

Available soon

Product description

The Heidolph Rotary Evaporator Hei-VAP Core HL G1 with hand lift and G1 diagonal cooler is an excellent choice for laboratories requiring efficient solvent evaporation with precise temperature control. The hand lift feature provides ease of operation, while the G1 diagonal cooler ensures optimal cooling performance during distillation. The EU-plug version is ideal for European electrical systems, ensuring compatibility across labs in Europe. This high-performance system is perfect for both small and medium-scale laboratory applications.

Key Features:

  • Brand: Heidolph
  • Model: Hei-VAP Core HL G1
  • Lift Mechanism: Hand lift for manual flask positioning and flexibility
  • Cooling System: G1 diagonal cooler for efficient temperature control
  • Plug Type: EU plug for European electrical systems
  • Display & Controls: Clear digital display for monitoring current values and separate button to show set values
  • Operation: Two separate knobs to adjust rotation speed and heating temperature with LED ring light indicators
  • Safety & Convenience: Activated lock feature to prevent inadvertent changes; residual heat indicator (>50 °C)
  • Ergonomics: Heating bath handles optimized for secure grip
  • Adjustability: Immersion depth adjustable up to 155 mm; evaporating flask tilt angle adjustable from 20° to 80°
  • Sealing Technology: Grease-free operation with innovative sealing
  • Ventilation: Ventilation cap with PTFE inlet, free of ground joints; optional replenishment valve available
  • Additional Features: Standby button stops all functions and lifts flask on motor lift models; optional cable extension with detachable operating panel for use outside fume hoods

Scope of Supply:

  • Flask clamp Easy-Clip
  • Vapour tube
  • Ventilation cap
  • Heating bath
  • 1-l receiving flask
  • 1-l evaporating flask
  • Supplied condenser as indicated

Heidolph's Hei-VAP Core HL G1 rotary evaporator offers precise control, effective cooling, and ease of use, making it a top choice for advanced laboratory distillation tasks.

Downloads

Accessories

Heating bath liquid

ProductCapacityMax. temperatureMfr#Part#AvailabilityPrice
5 l+220 °C569-00600-004.652 675$2,955.50
20 l+90 °C569-00610-009.812 665—

Evaporator flasks for Rotary Evaporators Hei-VAP Series

ProductNominal capacityUNSPSCMfr#Part#AvailabilityPrice
250 ml41104800514-72000-007.047 221$200.22
500 ml41104800514-73000-007.047 222$219.71
100 ml41104800514-71000-007.047 220$166.56
50 ml41104800514-70000-006.206 660$294.13
1000 ml41104800514-74000-007.047 172$262.24

Compare similar models

Rotary Evaporator Hei-VAP Core HL G1 hand lift with G1 diagonal cooler G1 (EU-Plug)

Manufacturer P/N

571-01100-00

Part Number

4.666 085

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core HL G1B hand lift (EU-Plug)

Manufacturer P/N

571-01110-00

Part Number

4.666 090

Manufacturer

Heidolph

Glassware

Coated

Rotary Evaporator Hei-VAP Core HL G1-CH hand lift (CH-Plug)

Manufacturer P/N

571-01100-04

Part Number

4.666 127

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core HL G1B-UK hand lift (UK-Plug)

Manufacturer P/N

571-01110-03

Part Number

4.666 112

Manufacturer

Heidolph

Glassware

Coated

Rotary Evaporator Hei-VAP Core HL G1-UK hand lift (UK-Plug)

Manufacturer P/N

571-01100-03

Part Number

4.666 107

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core HL G1B-CH hand lift (CH-Plug)

Manufacturer P/N

571-01110-04

Part Number

4.666 132

Manufacturer

Heidolph

Glassware

Coated
