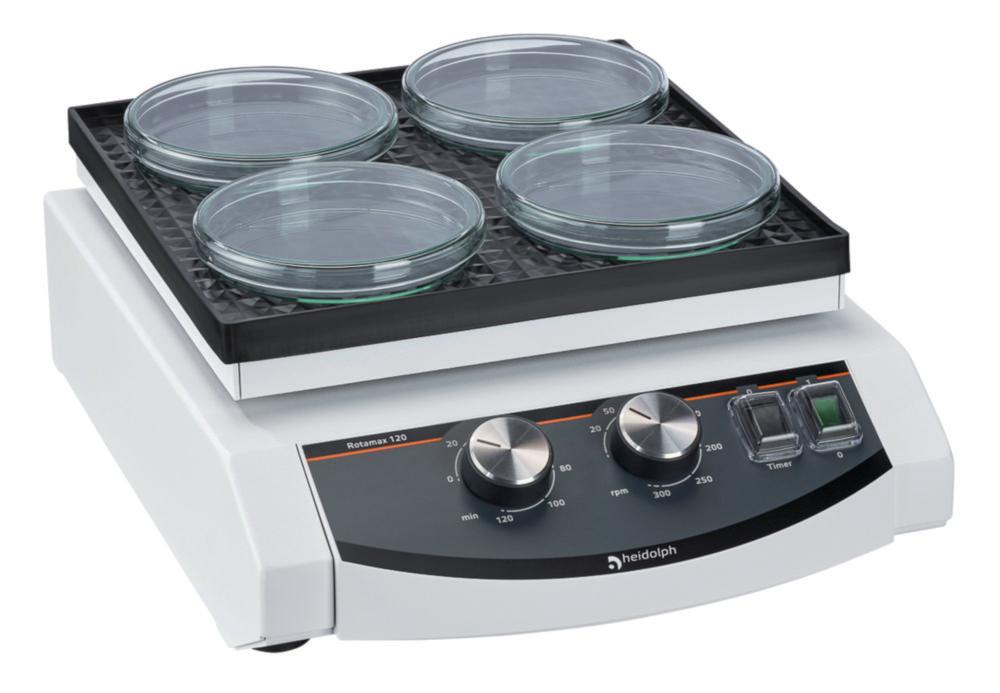

Heidolph Shaker ROTAMAX 120-UK, Compact Orbital Shaker, 220 × 220 mm Platform with Rubber Mat

Brand:Heidolph

Plug type

Specifications

Compare models
HS Code #
84798200
Depth
310 mm
Depth moving table
220 mm
Dimensions (WxDxH)
245 x 310 x 125 mm
Display
Analogue
Power supply frequency
50/60 Hz
Height
125 mm
IP code
IP 30
Max. loading capacity
2 kg
Max. permitted ambient temp.
31 °C
Max. relative humidity rate
80 %

$3,070.25

Inc. GST

Available soon

Product description

Heidolph Shaker ROTAMAX 120-UK, Compact Orbital Shaker, 220 × 220 mm Platform with Rubber Mat is designed for efficient and space-saving mixing applications in modern laboratories. Ideal for culture plates and small vessels, this compact unit ensures uniform agitation for up to 16 Erlenmeyer flasks when equipped with optional attachments. Its stable design and safety features make it perfect for continuous operation in biological, chemical, or analytical settings.

Key Features:

  • Brand: Heidolph
  • Platform Size: 220 × 220 mm usable surface with rubber mat for secure placement
  • Speed Control: Analog control for continuously adjustable speed
  • Timer: Analog process timer from 1 to 120 minutes with audible alarm
  • Safety: Overtemperature sensor automatically shuts off the unit to prevent heat damage
  • Motor Design: Insulated drive system prevents sample heating during operation
  • Stability: Low center of gravity ensures smooth operation even at high speeds
  • Application: Suitable for culture plates and general laboratory mixing tasks

Note: Attachments are not included – please order separately.

The Heidolph ROTAMAX 120-UK offers compact performance, dependable operation, and exceptional versatility, making it an excellent choice for laboratories seeking reliable orbital mixing in limited spaces.

Accessories

Accessories for shakers and mixers

ProductDescriptionForMfr#Part#AvailabilityPrice
Attachment for 10 test tubes 10 or 60mm ?Reax Top, Reax Control549-01000-009.730 045$123.96
Adapter for 20 test tubes dia. 10 to 18mmReax 2549-21000-009.730 222$824.60
Frame for tension roller only. Supplied without tension rollerUnimax 2010, Promax 2020, Polymax 2040549-50000-009.839 811$432.96
Tension roller and frame complete. Order at least 2Unimax 2010, Promax 2020, Polymax 2040549-58000-009.839 812$174.26
Universal perforated platform 2000Unimax 2010, Promax 2020, Polymax 2040549-59000-009.839 813$441.94
Attachment with 2 tension rollersVibramax 100, Rotamax 120549-81000-009.839 844$303.61
Test tube stand for up to 6 Eppendorf vessels (1.5ml)Reax Top, Reax Control549-04000-006.229 903$118.57
V2A support rod with vessel holderReax Top, Reax Control549-20000-009.730 021$255.11
Attachment for up to 4 conical separating funnels, 50ml or 100mlUnimax 1010, Duomax 1030, Polymax 1040, Promax 1020549-78000-009.839 871$749.15
Set of holders for four 0.5I bottlesReax 20/4, Reax 20/8, Reax 20/12549-27000-009.839 809$219.18
Universal perforated platform 1000Unimax 1010, Duomax 1030, Polymax 1040, Promax 1020549-59200-009.839 814$326.97
Spare tension rollerVibramax 100, Rotamax 12011-008-007-087.078 546$120.37
Tension plate for caps allows for the use of common bottles with dia. 94mmReax 20/4, Reax 20/8, Reax 20/1211-001-001-817.055 418$35.93
Attachment with 2 tension rollersUnimax 1010, Duomax 1030, Polymax 1040, Promax 1020549-70000-009.839 869$635.97
Size 2 separatory funnel clamp for platform 2000 (2000 ml - max. 2 per platform)Unimax 2010, Promax 2020, Polymax 2040549-61000-009.839 827$522.79
Size 1 separatory funnel clamp for platform 2000 (250 ml - max. 4, 500/1000ml - max. 3 per platform)Unimax 2010, Promax 2020, Polymax 2040549-57000-009.839 823$416.79
Universal adapter (for flasks, bottles, test tube racks, etc.)Reax 2549-30000-009.730 223$1,144.38
Spare tension rollerUnimax 1010, Duomax 1030, Polymax 1040, Promax 1020549-71000-009.839 870$172.47
Set of holders for four 1I bottlesReax 20/4, Reax 20/8, Reax 20/12549-26000-009.839 808$170.67
Multi-storey attachment. Includes perforated platform 2000 and 4 supporting rodsUnimax 2010, Promax 2020, Polymax 2040549-62000-009.839 826$786.88
Tray 100 with universal boringsVibramax 100, Rotamax 120549-59100-006.229 800$233.55

Heating module for Incubator 1000, Suitable for Heidolph Shakers

ProductPlug typeType of auxiliary energyMfr#Part#AvailabilityPrice
EUMains connection549-90010-009.839 875$2,942.70
CHMains connection549-90010-024.703 300$2,942.70
UKMains connection549-90010-014.703 299$2,942.70

Compare similar models

Shaker ROTAMAX 120-UK 220 x 220 mm useable space with rubber mat -Standard-

Manufacturer P/N

544-41200-06

Part Number

9.839 799

Manufacturer

Heidolph

Plug type

UK

Shaker, orbital rotary shaking ROTAMAX 120 shaking frequency 200-300 1/min useful area 220x220 mm

Manufacturer P/N

544-41200-00

Part Number

9.839 837

Manufacturer

Heidolph

Plug type

EU

Shaker ROTAMAX 120-CH 220 x 220 mm useable space with rubber mat  -Standard-

Manufacturer P/N

544-41200-02

Part Number

9.839 798

Manufacturer

Heidolph

Plug type

CH

Frequently asked questions

it is designed for efficient and space-saving mixing applications in modern laboratories. Ideal for culture plates and small vessels, this compact unit ensures uniform agitation for up to 16 Erlenmeyer flasks when equipped with optional attachments. Its stable design and safety features make it perfect for continuous operation in biological, chemical, or analytical settings.
