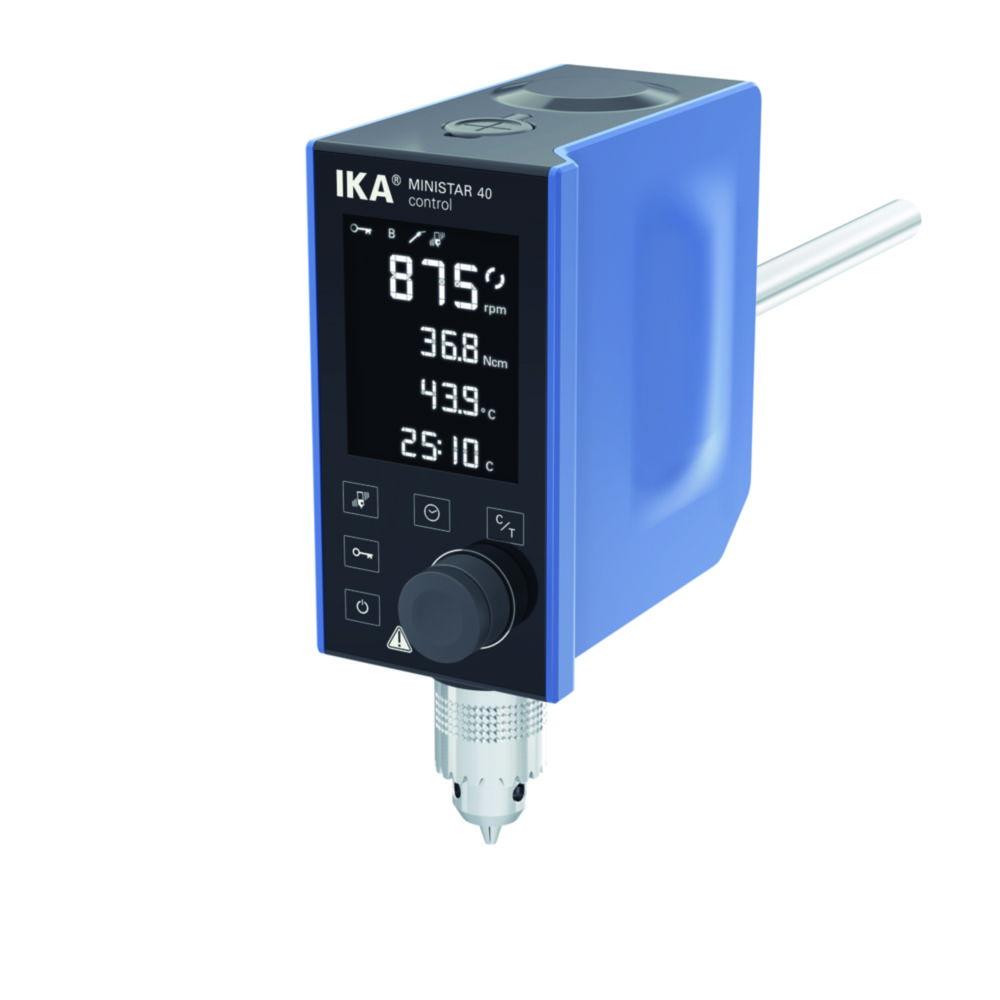

IKA Electronic Overhead Stirrer Ministar 40 Control IP 54
Representative image only

IKA Electronic Overhead Stirrer Ministar 40 Control IP 54

Sold by: John Morris Scientific Pty Ltd
Available Soon
Part #: 6.310 245Manufacturer #: 0025001989
Estimated shipping time:Contact us via live chat or via contact us page

$3,699.33

See the available (2) variant products
Product overview

The IKA Electronic Overhead Stirrer Ministar 40 Control is designed for efficient and reliable stirring in laboratory applications. With a robust design and an IP 54 protection rating, this stirrer is ideal for use in harsh environments. It offers precise control and is equipped with a high-performance motor, ensuring stable and consistent stirring even at high viscosities. Perfect for laboratories requiring precision in sample mixing, the Ministar 40 Control is a versatile and durable solution for various research and analytical tasks.

Key Features:

  • Brand: IKA
  • Model: Ministar 40 Control
  • Motor: High-performance motor for reliable stirring
  • Control: Electronic control for precise adjustments
  • Protection Rating: IP 54 for dust and water resistance
  • Application: Ideal for laboratory stirring applications with high viscosity liquids
  • Display: Hardened glass display for maximum visibility and chemical resistance
  • Safety: Vibration sensors detect deviations from permissible thresholds and automatically stop the process
  • Connectivity: USB and Bluetooth interfaces for documenting parameters and installing firmware updates
  • Software Integration: Easy connection to labworldsoft®
  • Temperature Measurement: PT1000 sensor for direct measurement in the medium with display
  • Speed Control: Continuously adjustable speed with microprocessor-controlled speed governor for constant rotational speed despite viscosity changes
  • Additional Features: Key lock function, integrated timer, chemical-resistant housing
  • Warranty: 10 years

Scope of supply: Overhead stirrer including temperature sensor PT1000

The IKA Ministar 40 Control is a dependable tool for laboratories that demand precision, durability, and advanced stirring control.

Product Specifications
  • HS Code #84798200
  • Clamping range0.5 ... 8 mm
  • Depth154 mm
  • Dimensions (WxDxH)70 x 154 x 193 mm
  • DisplayDigital
  • Power supply frequency50/60 Hz
  • Height193 mm
  • IP codeIP 54
  • Max. clamping width8 mm
  • Max. speed1000 1/min
  • Max. stirring capacity25 l
  • Max. temperature350 °C
  • Max. torque40 Ncm
  • Max. Viscosity30000 mPa·s
  • Max. voltage240 V
  • Min. clamping width0.5 mm
  • Min. speed0 1/min
  • Min. temperature-10 °C
  • Min. voltage100 V
  • Power supply100 ... 240 V, 50/60 Hz
  • Rated capacity69 W
  • Speed0 ... 1,000 1/min
  • Temperature-10 ... 350 °C
  • TypeMINISTAR 40 control
  • Type of auxiliary energyMains connection
  • Warranty10 years
  • Weight1.72 kg
  • Width70 mm
  • With connection ext. temperature sensorYes
  • With timerYes
Downloads
  • IKA Micro-Ministar Overhead Stirrer BrochureDownload
  • IKA Ministar 20 Control Data SheetDownload
  • IKA Ministar 40 Control Data SheetDownload
  • IKA Ministar 80 Control Data SheetDownload
  • IKA Microstar Control Instruction ManualDownload
