Representative Image

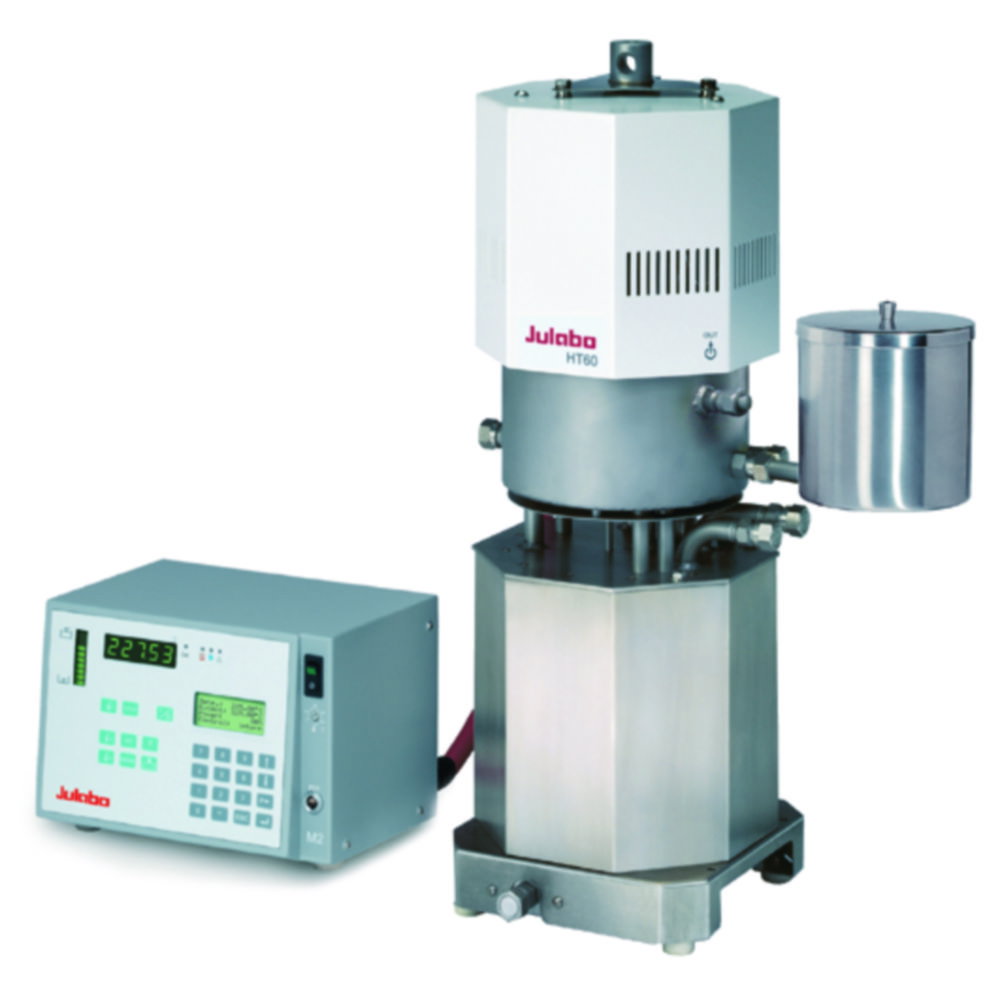

Julabo High Temperature Thermostat HT60-M2 Forte HT, 2 L, Without C.U. Cooling Unit, 70°C to 400°C

Brand:JULABO

Power supply frequency

Heating capacity

Max. voltage

Power supply

Type

Weight

Specifications

Compare models
Ext. dim. (WxDxH)
230 x 230 x 580 mm
Ext. depth
230 mm
Ext. height
580 mm
Ext. width
230 mm
Power supply frequency
50 Hz
Heating capacity
7 kW
IP code
IP 21
Max. delivery pressure
1.2 bar
Max. temperature
400 °C
Max. voltage
400 V·3/N/PE

$51,286.18

Inc. GST

Available soon

Product description

The Julabo High Temperature Thermostat HT60-M2 Forte HT, 2 L, Without C.U. Cooling Unit, 70°C to 400°C provides precise and reliable temperature control for demanding laboratory, pilot plant and industrial applications. Its compact, closed construction helps prevent the formation of oil fumes, even at high temperatures, while its powerful heating capacity enables short heat-up times. Automatic heat-up and cracking protection support a long service life for the bath fluid, and the automatic venting system allows the entire system to be filled without trapped air.

Key Features:

  • Brand: Julabo
  • Model: Forte HT60-M2
  • Temperature Range: 70°C to 400°C for demanding high-temperature applications
  • Filling Volume: 2 litres
  • Cooling Unit: Supplied without a C.U. cooling unit
  • Temperature Control: Self-optimising ICC cascade temperature control for precise regulation
  • Pump Capacity: Adjustable flow rate from 14 to 18 litres per minute
  • Display: Illuminated LCD display for clear monitoring and operation
  • Level Monitoring: Electronic level indicator
  • Programming: Integrated programmer with memory for six profiles and up to 60 program steps per profile
  • Temperature Correction: ATC function for simple temperature calibration and correction
  • Construction: Compact, closed design helps prevent oil fumes at high operating temperatures
  • Fluid Protection: Automatic heat-up and cracking protection help extend bath fluid service life
  • Automatic Venting: Filling system enables bubble-free filling of the complete circulation system
  • Connectivity: RS232 and RS485 interfaces with standby input
  • Integration: Suitable for integration into mini-plant systems and other process installations
  • Classification: Class III (FL) according to DIN 12876-1

This Julabo Forte HT60-M2 High Temperature Thermostat is ideal for laboratories and process facilities requiring rapid heating, accurate temperature control and reliable fluid circulation at temperatures up to 400°C. The unit is supplied without a C.U. cooling unit.

Accessories

Temperature hoses, stainless steel 1.4404, single insulation

ProductTemperature resistanceMaterialMfr#Part#AvailabilityPrice
-50 ... 200 °CStainless steel 1.440489302206.316 371$785.47
-50 ... 200 °CStainless steel 1.440489302216.222 912$988.18
-50 ... 200 °CStainless steel 1.440489302244.686 940$1,877.31
-50 ... 200 °CStainless steel 1.440489302226.224 946$1,232.34
-50 ... 200 °CStainless steel 1.440489302236.206 790$2,215.91

Temperature hoses, stainless steel 1.4404, triple insulation

ProductTemperature resistanceMaterialMfr#Part#AvailabilityPrice
-100 ... 350 °CStainless steel 1.440489302146.070 215$2,494.63
-100 ... 350 °CStainless steel 1.440489302116.100 516$1,587.07
-100 ... 350 °CStainless steel 1.440489302096.100 514$1,002.00
-100 ... 350 °CStainless steel 1.440489302106.100 515$1,216.22
-100 ... 350 °CStainless steel 1.440489302166.327 669$2,215.91

Compare similar models

High temperature termostat HT60-M2 Forte HT, 2 ltr., without C.U. cooling unit temperature range: 70...400°C

Manufacturer P/N

9800062

Part Number

6.300 656

Manufacturer

JULABO

Power supply frequency

50 Hz

High temperature termostat HT30-M1 Forte HT, 2 ltr., without C.U. cooling unit temperature range: 70...400°C

Manufacturer P/N

9800031

Part Number

9.858 400

Manufacturer

JULABO

Power supply frequency

50 Hz

High temperature termostat HT60-M3 working temp. To +400 ° C., pump output 18 l / min - 1.2 bar max.

Manufacturer P/N

9800063

Part Number

6.289 626

Manufacturer

JULABO

Power supply frequency

60 Hz

Frequently asked questions

It provides precise and reliable temperature control for demanding laboratory, pilot plant and industrial applications. Its compact, closed construction helps prevent the formation of oil fumes, even at high temperatures, while its powerful heating capacity enables short heat-up times. Automatic heat-up and cracking protection support a long service life for the bath fluid, and the automatic venting system allows the entire system to be filled without trapped air.
