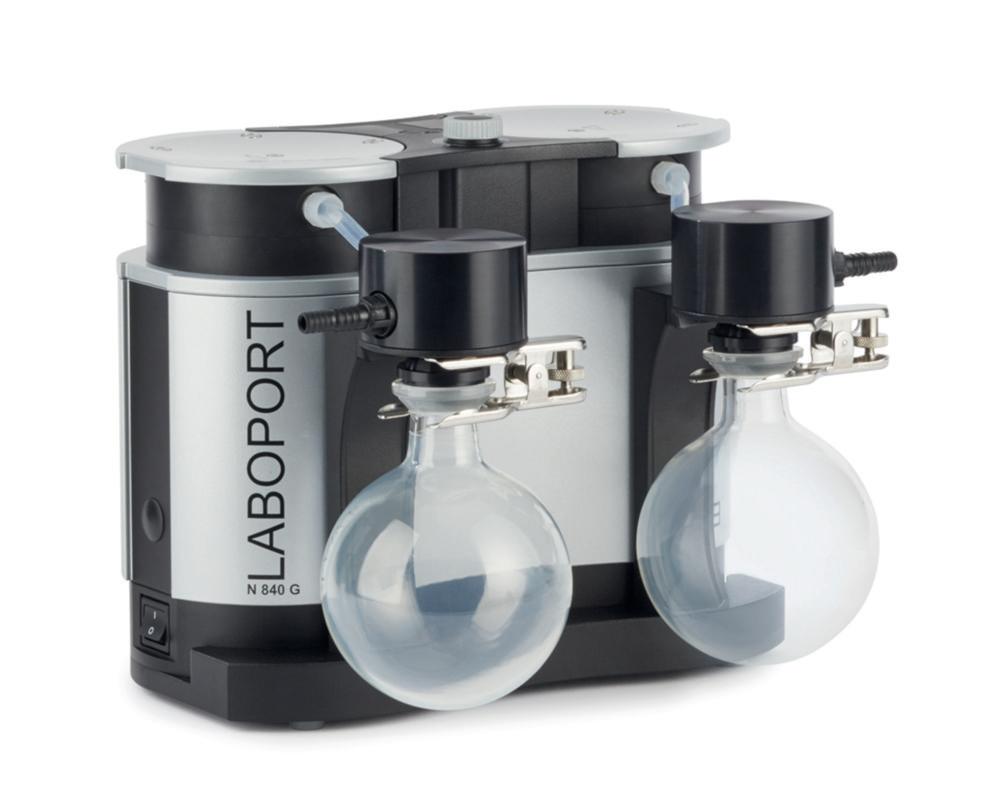

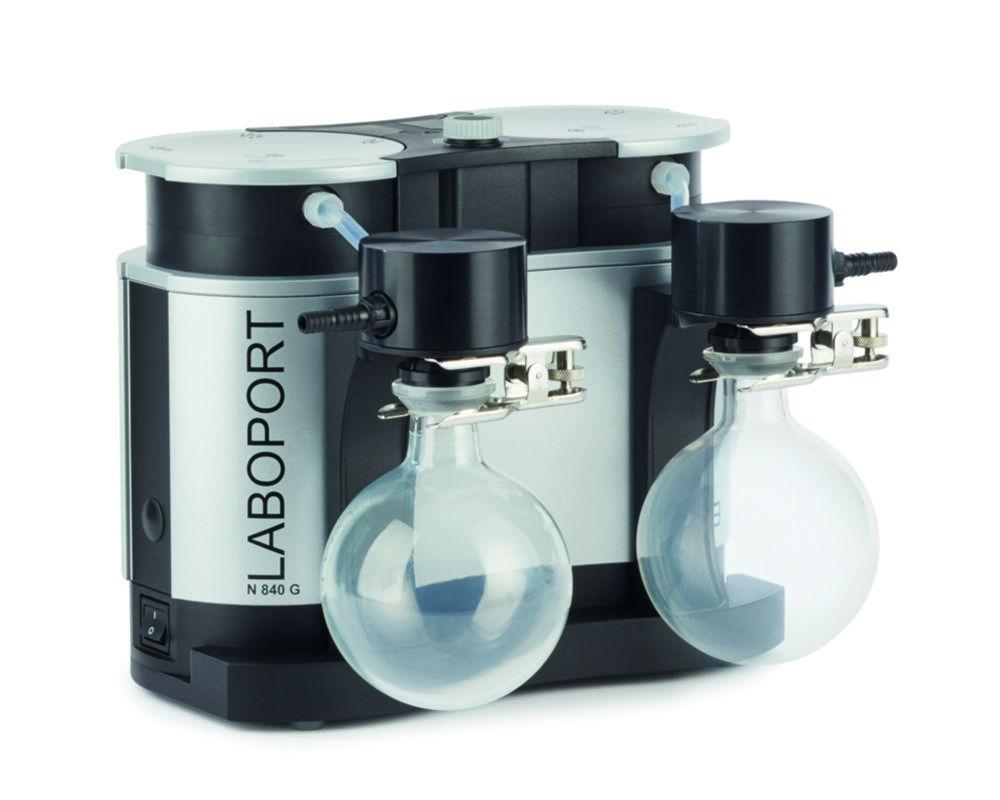

KNF LABOPORT Vacuum Pump System SR 840 G 6mbar, 0.1 bar g, Motor IP 30, 34 l/min, 240 V 50/60 Hz, 299x250x274mm
Product overview
The KNF LABOPORT Vacuum Pump System SR 840 G is a high-performance, oil-free diaphragm vacuum pump designed for laboratory and industrial applications. With a final vacuum of 6 mbar and pressure capability up to 0.1 bar g, this system offers reliable and efficient operation. Its robust IP 30-rated motor delivers a flow rate of 34 l/min, making it suitable for demanding vacuum tasks.
Key Features:
- Brand: KNF
- Model: LABOPORT SR 840 G
- Vacuum: Final vacuum of 6 mbar
- Pressure: Up to 0.1 bar g
- Motor: IP 30 protection class
- Flow Rate: 34 l/min
- Power Supply: 240 V, 50/60 Hz
- Dimensions: 299 × 250 × 274 mm
- Application: Ideal for laboratory vacuum filtration, degassing, and solvent removal
This KNF vacuum pump system is engineered for long-term reliability, quiet operation, and consistent performance in laboratory environments.
Frequently Asked Questions
1. What is the KNF LABOPORT Vacuum Pump System SR 840 G 6mbar, 0.1 bar g, Motor IP 30, 34 l/min, 240 V 50/60 Hz, 299x250x274mm used for?
It is a high-performance, oil-free diaphragm vacuum pump designed for laboratory and industrial applications. With a final vacuum of 6 mbar and pressure capability up to 0.1 bar g, this system offers reliable and efficient operation. Its robust IP 30-rated motor delivers a flow rate of 34 l/min, making it suitable for demanding vacuum tasks.
2. Is this product suitable for laboratory vacuum filtration, degassing, and solvent removal?
Yes. It is designed for laboratory vacuum filtration, degassing, and solvent removal, and offers a pressure of up to 0.1 bar g and a flow rate of 34 l/min to support this kind of work.
3. What pressure and flow rate does this product have?
It has a pressure of up to 0.1 bar g, a flow rate of 34 l/min and a power supply of 240 V, 50/60 Hz.
4. What vacuum and motor does this product offer?
It offers final vacuum of 6 mbar, IP 30 protection class, high level of vapor and condensate compatibility and integrated gas ballast valve.
Product Specifications
- HS Code #84141089
- Connection pressure sideID 10 mm
- Connection suction sideID 8 ... 9,5 mm
- Depth274 mm
- Dimensions (WxDxH)299 x 274 x 250 mm
- Flow rate34 l/min
- Height250 mm
- IP codeIP 30
- Max. permitted ambient temp.40 °C
- Max. voltage240 V
- Min. permitted ambient temperature5 °C
- Min. voltage100 V
- Plug typeEU/UK/CH
- Power supply100 ... 240 V
- Rated capacity100 W
- TypeSR 840 G
- Type of auxiliary energyMains connection
- Ultimate vacuum6 mbar
- UNSPSC40151502
- Weight13.1 kg
- Width299 mm
Downloads
- LabFriend 4.684 032 KNF-LAB-Brochure-EN.pdfDownload
