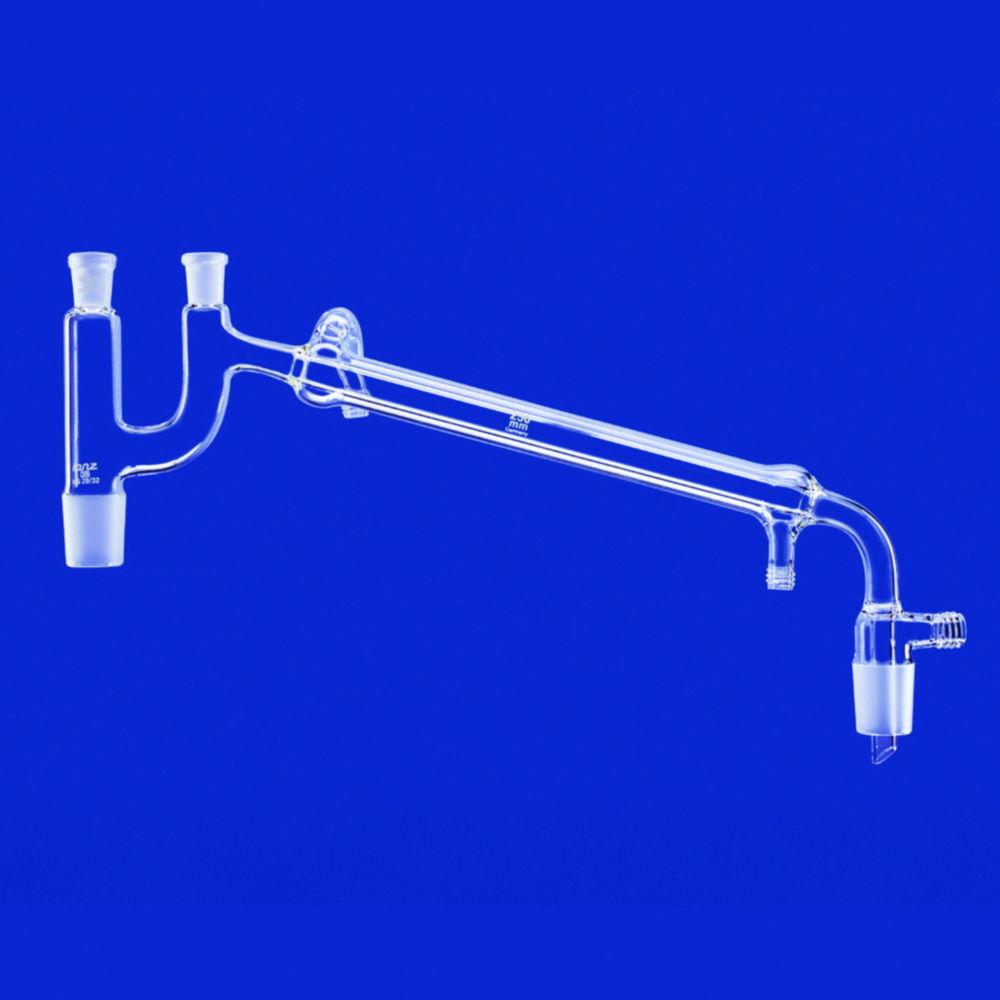

Representative Image

Lenz-Laborglas Distilling Links, Claisen, Cone NS 14/23, Jacket L. 160 mm, Water Connection GL 14, Vacuum Connection GL 18

Cone[s]

Length jacket

Specifications

Compare models
Cone[s]
NS 14/23
Length jacket
160 mm
Material
DURAN® tubing
Socket[s]
NS 14/23
Standard
DIN 12594
Thermometer usable
Yes
Type of construction
Acc. to Claisen
UNSPSC
41104812
With condenser
Yes
With vacuum receiver
Yes

$327.80

Inc. GST

Available soon

Product description

The Lenz-Laborglas Distilling Links, Claisen type, are expertly crafted for precise distillation processes in laboratory environments. Featuring a cone NS 14/23 and a jacket length of 160 mm, this apparatus provides excellent thermal control. It is equipped with a GL 14 water connection for coolant flow and a GL 18 vacuum connection, ensuring secure and efficient operation. Constructed from high-quality borosilicate glass, this distilling link offers exceptional chemical resistance and durability for long-term use.

Key Features:

  • Brand: Lenz-Laborglas
  • Type: Claisen distilling link
  • Joint: Cone NS 14/23
  • Jacket Length: 160 mm
  • Connections: GL 14 (water), GL 18 (vacuum)
  • Material: Borosilicate glass for thermal and chemical resistance
  • Application: Ideal for laboratory distillation requiring precise temperature and vacuum control

This Lenz-Laborglas Claisen distilling link is designed to ensure safe and efficient distillation in demanding research and analytical laboratory applications.

Compare similar models

Distilling Links, Claisen, Cone NS 14/23 Jacket L. Jacket L. 160 mm water connection GL 14, vacuum connection GL 18

Manufacturer P/N

05057211

Part Number

9.012 272

Manufacturer

Lenz-Laborglas

Cone[s]

NS 14/23

Distilling Links, Claisen, Cone NS 29/32 Jacket L. Jacket L. 400 mm water connection GL 14, vacuum connection GL 18

Manufacturer P/N

05057414

Part Number

9.012 279

Manufacturer

Lenz-Laborglas

Cone[s]

NS 29/32

Distilling Links, Claisen, Cone NS 29/32 Jacket L. Jacket L. 250 mm water connection GL 14, vacuum connection GL 18

Manufacturer P/N

05057314

Part Number

9.012 275

Manufacturer

Lenz-Laborglas

Cone[s]

NS 29/32

Distilling Links, Claisen, Cone NS 14/23 Jacket L. Jacket L. 250 mm water connection GL 14, vacuum connection GL 18

Manufacturer P/N

05057311

Part Number

9.012 274

Manufacturer

Lenz-Laborglas

Cone[s]

NS 14/23

Frequently asked questions

It are expertly crafted for precise distillation processes in laboratory environments. Featuring a cone NS 14/23 and a jacket length of 160 mm, this apparatus provides excellent thermal control. It is equipped with a GL 14 water connection for coolant flow and a GL 18 vacuum connection, ensuring secure and efficient operation. Constructed from high-quality borosilicate glass, this distilling link offers exceptional chemical resistance and durability for long-term use.
