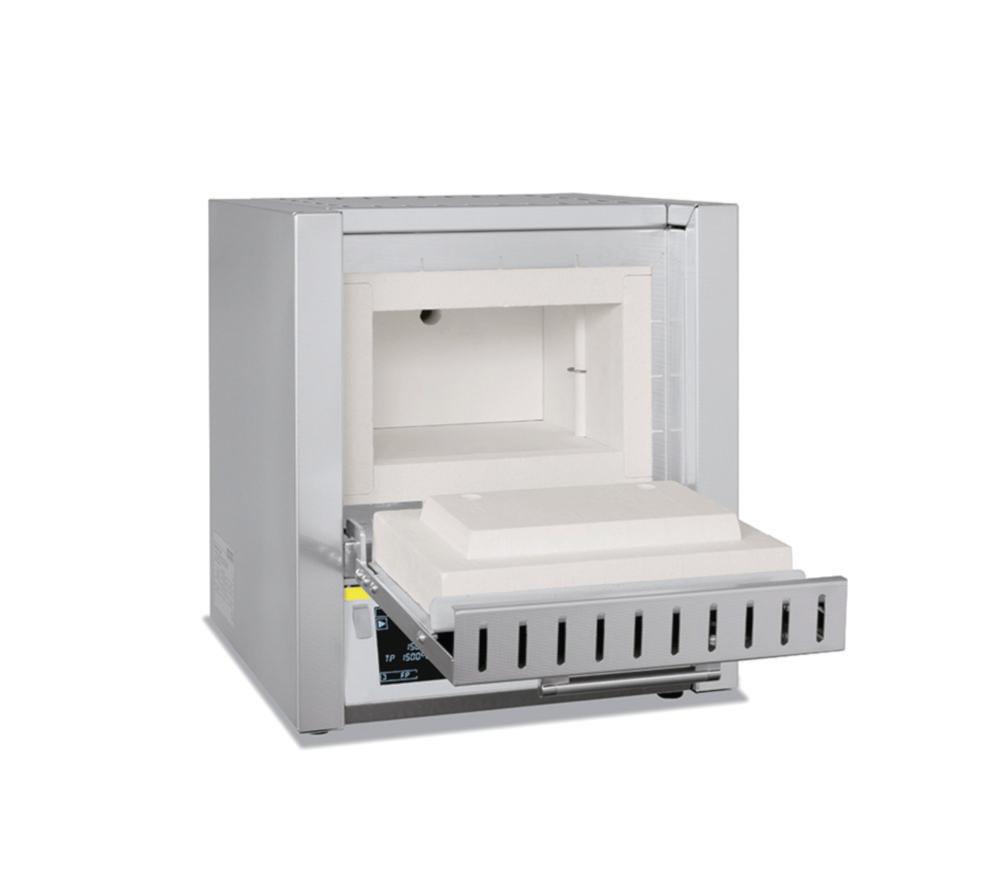

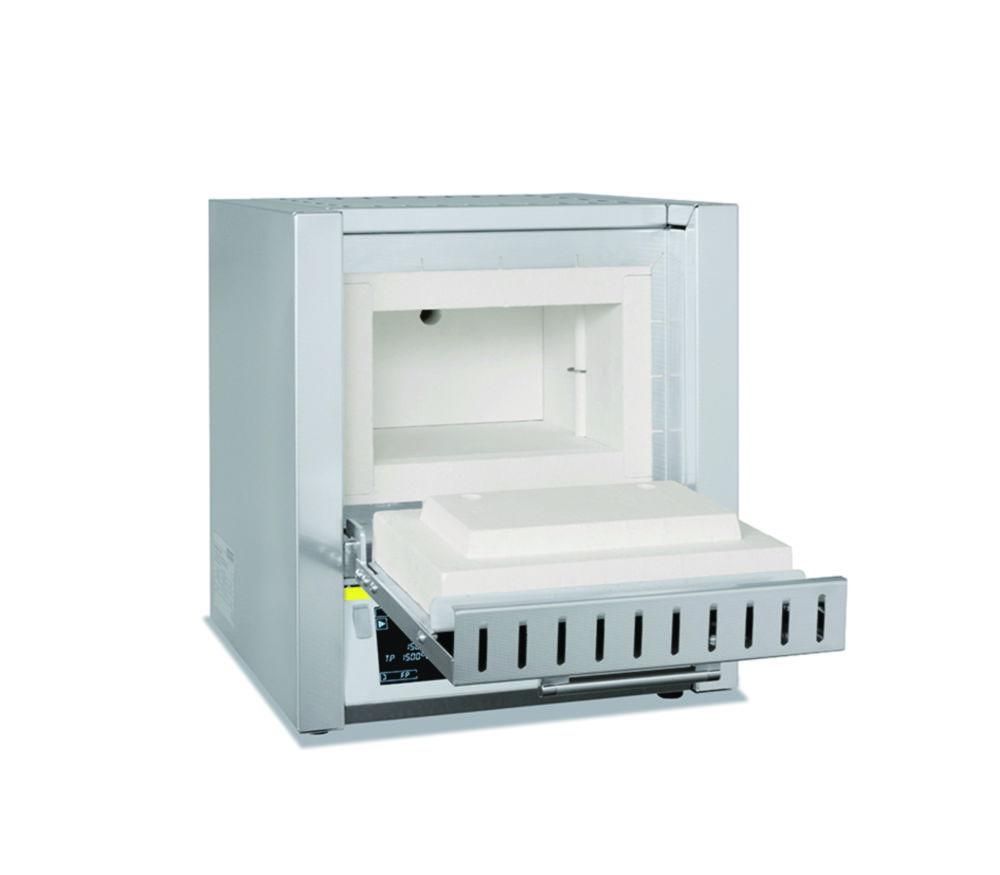

Nabertherm Muffle Furnace L 5/12 C550 with Controller, 230 Volt
Product overview
The Nabertherm Muffle Furnace L 5/12 C550 is a reliable laboratory furnace designed for high-performance thermal processing. Equipped with a B 510 controller, it allows precise temperature control up to 550°C, making it ideal for a variety of applications, including material testing, sample preparation, and heat treatment. With a 230V power supply and robust construction, this furnace provides efficient and consistent heating for laboratory use.
Key Features:
- Brand: Nabertherm
- Model: L 5/12 C550
- Maximum Temperature: 550°C
- Controller: B 510 for accurate temperature regulation
- Power Supply: 230V for reliable performance
- Applications: Suitable for material testing, heat treatment, and laboratory applications
- Design: Durable build with efficient insulation for energy-saving operation
The Nabertherm Muffle Furnace L 5/12 C550 with Controller (230V) offers precise heating and reliable performance for various laboratory processes requiring controlled temperatures.
Frequently Asked Questions
1. What is the Nabertherm Muffle Furnace L 5/12 C550 with Controller, 230 Volt used for?
It is a reliable laboratory furnace designed for high-performance thermal processing. Equipped with a B 510 controller, it allows precise temperature control up to 550°C, making it ideal for a variety of applications, including material testing, sample preparation, and heat treatment. With a 230V power supply and robust construction, this furnace provides efficient and consistent heating for laboratory use.
2. Is this product suitable for material testing, heat treatment, and laboratory applications?
Yes. It is designed for material testing, heat treatment, and laboratory applications, and offers a maximum temperature of 550°C and a power supply of 230V for reliable performance to support this kind of work.
3. What maximum temperature and power supply does this product have?
It has a maximum temperature of 550°C and a power supply of 230V for reliable performance.
4. What controller and design does this product offer?
It offers B 510 for accurate temperature regulation, durable build with efficient insulation for energy-saving operation, ceramic heating plates with integrated heating wire, splash and exhaust protected, easy to replace and heating from two sides (three sides for interior volumes of 24 and 40 l).
Product Specifications
- HS Code #85141980
- Depth int.170 mm
- Type of doorFlap door
- Ext. dim. (WxDxH)385 x 390 x 460 mm
- Ext. depth390 mm
- Ext. height460 mm
- Ext. width385 mm
- Power supply frequency50/60 Hz
- Height int.130 mm
- Int. Dim. (WxDxH)200 x 170 x 130 mm
- Int. width200 mm
- Max. temperature1200 °C
- Max. voltage230 V·1/N/PE
- Nominal capacity5 l
- Plug typeEU
- Power supply230 V·1/N/PE, 50/60 Hz
- Rated capacity2400 W
- TypeL 5/12/C550
- Type of auxiliary energyMains connection
- UNSPSC40101805
- Weight30 kg
