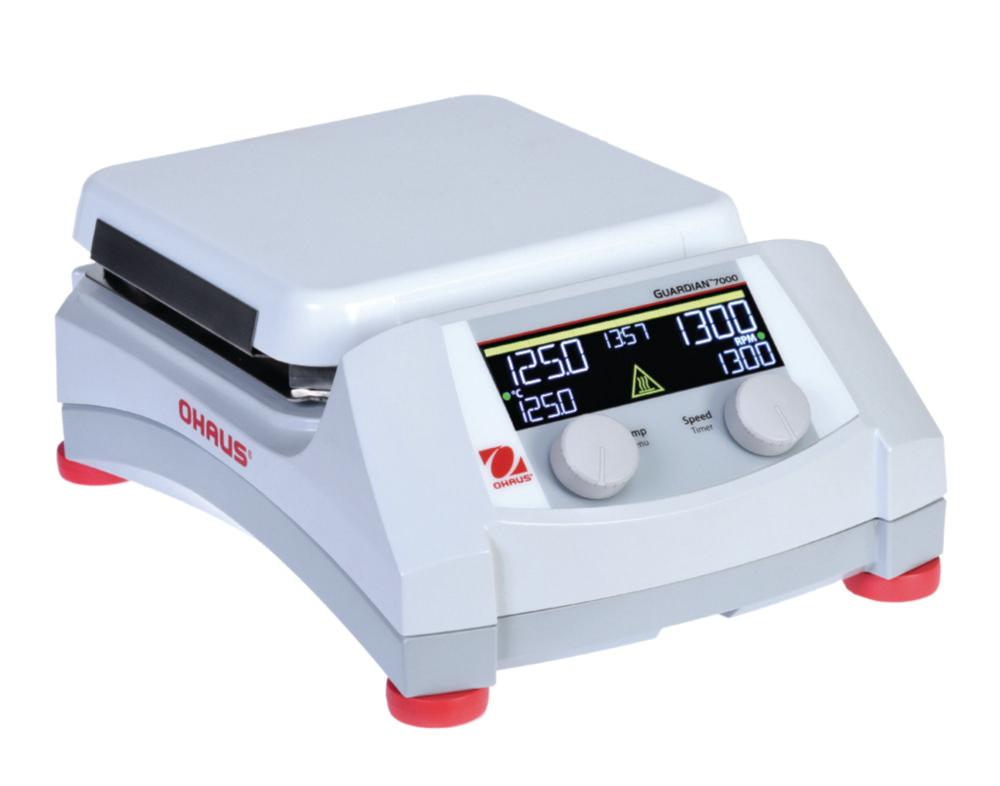

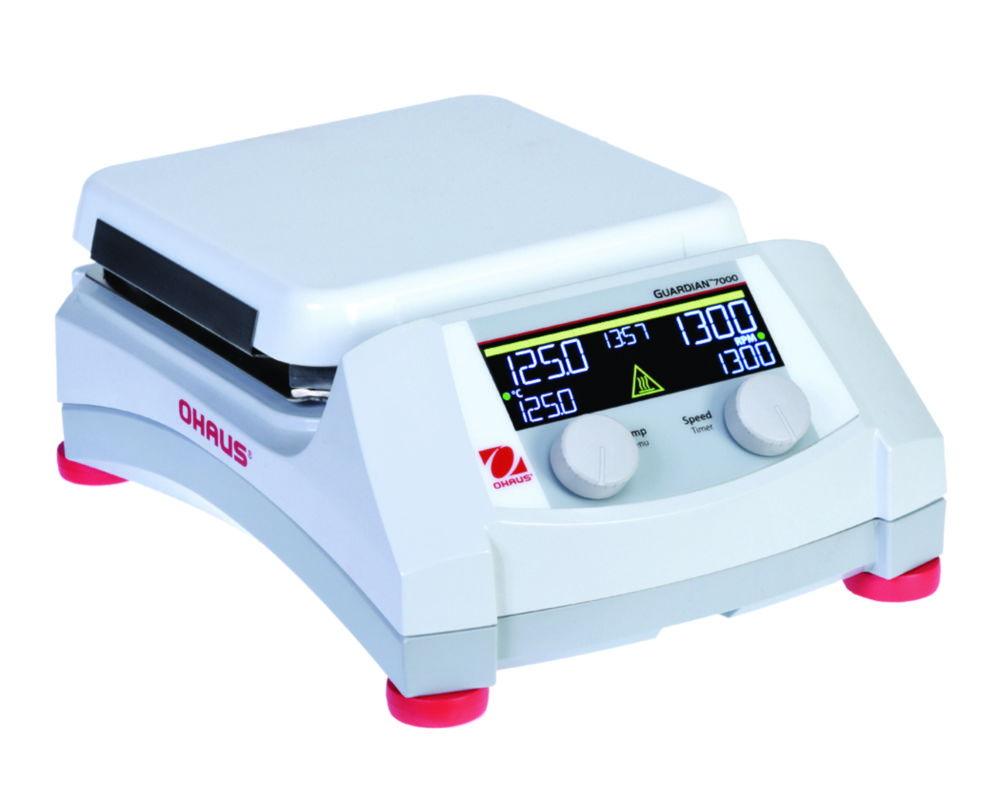

Ohaus Guardian™ 7000 Hotplate-Stirrer e-G71HS07C 15L Ceramic Plate 178×178 mm
Product overview
The Ohaus Guardian 7000 Hotplate-Stirrer e-G71HS07C is engineered for high-performance heating and stirring in laboratory settings. Featuring a 178×178 mm ceramic plate, it offers a 15L capacity with a temperature range from ambient +5°C to 500°C and a stirring speed up to 1,600 rpm. This model is equipped with advanced safety features, including SmartHeat™, SafetyHeat™, SmartPresence™, and SmartLink™ technologies, ensuring optimal performance and user safety. The digital control interface with a backlit LCD display provides intuitive operation, while the chemical-resistant SmartHousing™ design facilitates easy cleaning and durability.
Key Features:
- Brand: Ohaus
- Capacity: 15L
- Plate Construction: Ceramic
- Plate Size: 178×178 mm
- Temperature Range: Ambient +5°C to 500°C
- Speed Range: 60 rpm to 1,600 rpm
- Safety Features: SmartHeat™, SafetyHeat™, SmartPresence™, SmartLink™
- Control: Digital with backlit LCD display
- Dimensions: 309 mm (W) x 223 mm (D) x 122 mm (H)
- Weight: 2.6 kg
- Power Supply: 230V, 50/60 Hz
- SmartRate feature to select fast or slow temperature and speed ramp rates
- SmartHousing stays cool to the touch and is chemical-resistant
- Timer: 1 min to 99 h 59 min
Scope of Supply
- Magnetic stirrer
- Temperature sensor
- In-use cover
This hotplate-stirrer is ideal for applications requiring precise temperature control and efficient stirring in a compact and robust design.
Product Specifications
- HS Code #84198998
- Colour housingWhite
- Depth309 mm
- Depth working area178 mm
- Dimensions (WxDxH)223 x 309 x 122 mm
- DisplayDigital
- Power supply frequency50/60 Hz
- Heating capacity1242 W
- Heating temperaturRT +5 ... 500 °C
- Height122 mm
- IP codeIP 21
- Material stirring surfaceCeramic
- Max. heating temperature500 °C
- Max. permitted ambient temp.40 °C
- Max. relative humidity rate80 %
- Max. speed1600 1/min
- Max. stirring capacity15 l
- Max. voltage230 V
- Min. heating temperature+5 °C
- Min. permitted ambient temperature5 °C
- Min. speed60 1/min
- No. of stirring positions1
- Permitted ambient temperature5 ... 40 °C
- Plug typeEU
- Power supply230 V, 50/60 Hz
- Speed60 ... 1,600 1/min
- Typee-G71HS07C
- Type of auxiliary energyMains connection
- UNSPSC41103806
- Weight2600 g
- Width223 mm
- Width working area178 mm
- With timerYes
- Working area (WxD)178 x 178 mm
