Representative Image

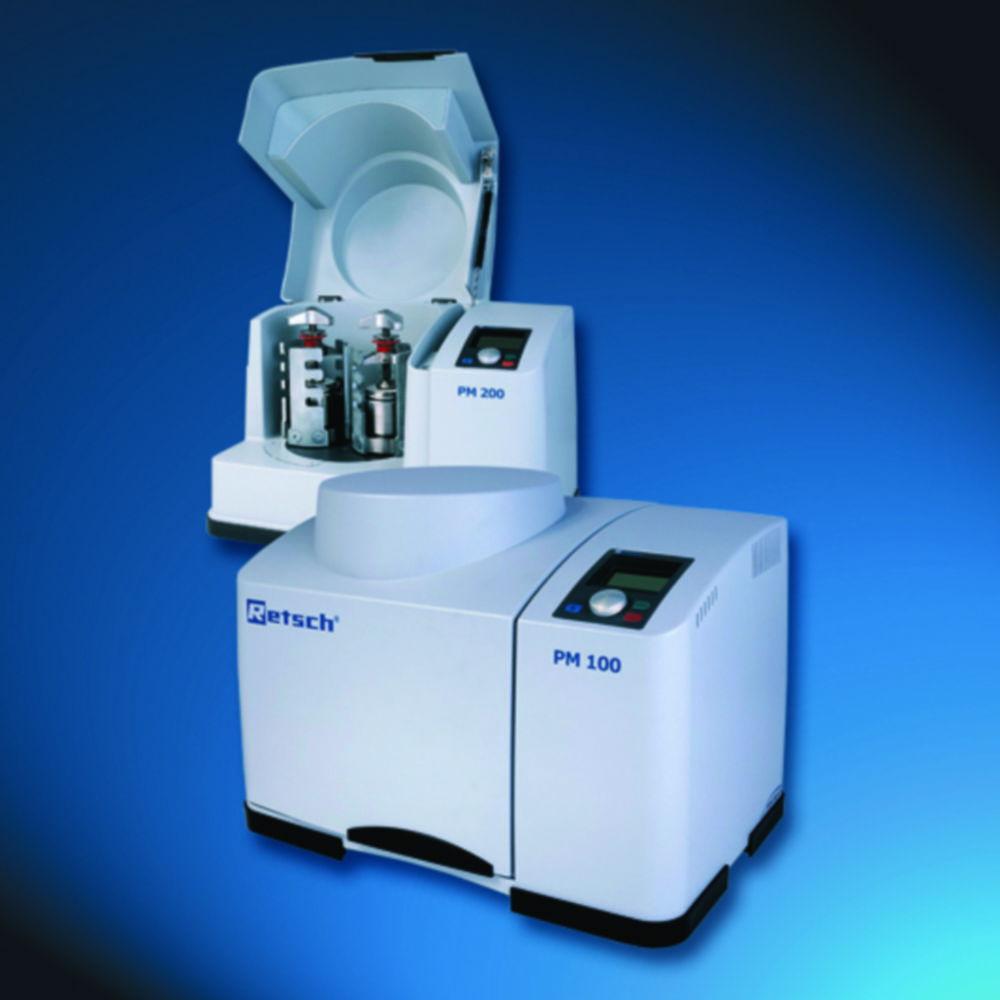

Retsch Planetary Ball Mill PM 100, 230V, 50/60Hz

Brand:Retsch

Depth

Dimensions (WxDxH)

Feed particle size

Feed quantity

Height

Max. feed particle size

Max. feed quantity

Max. speed

Min. speed

No. of milling positions

Rated capacity

Speed

Type

Weight

Width

Specifications

Compare models
HS Code #
84742000
Depth
415 mm
Dimensions (WxDxH)
630 x 415 x 468 mm
Feed particle size
10 mm
Feed quantity
220 ml
Power supply frequency
50/60 Hz
Height
468 mm
Max. feed particle size
10 mm
Max. feed quantity
220 ml
Max. final fineness
1 µm
Max. speed
650 1/min

$22,681.04

Inc. GST

Available soon

Product description

The Retsch Planetary Ball Mill PM 100 230V, 50/60Hz is designed for mixing and grinding soft, medium-hard, extremely hard, brittle, and fibrous materials. This Retsch mill is used whenever high degrees of fineness down to the submicron range are required in a short time. In addition to dry and wet grinding, it is suitable for colloidal grinding and mechanical alloying of minerals, ores, chemicals, ceramics, and soils.

Key Features:

  • Brand: Retsch
  • Performance: Extremely high ultimate fineness down to submicron range
  • Versatility: Grinding jar volumes from 12ml to 500ml in 8 different materials
  • Operation: Single button operation with graphic display and 10 storable parameter combinations
  • Reliability: Suitable for long-term trials and continuous use with power failure back-up
  • Cooling: Automatic grinding chamber ventilation for cooling the grinding jars

Supplied with: Planetary Ball Mill only. Grinding jars and grinding balls have to be ordered separately.

This planetary ball mill is an essential high-performance tool for laboratories requiring reproducible results and high-speed size reduction for complex research and analytical tasks.

Compare similar models

Planetary ball mill PM 100 230V, 50/60Hz
Available soon
Retsch Planetary Ball Mill PM 100, 230V, 50/60Hz

$22,681.04

Inc. GST

Manufacturer P/N

205400001

Part Number

9.739 270

Manufacturer

Retsch

Depth

415 mm

Planetary ball mill PM 200 230V, 50/60 Hz
Available soon
Retsch Planetary Ball Mill PM 200, 230V, 50/60 Hz

$29,804.79

Inc. GST

Manufacturer P/N

206400001

Part Number

9.739 271

Manufacturer

Retsch

Depth

415 mm

Planetary ball mill PM 400 220 - 230 V, 50/60 Hz
Available soon
Retsch Planetary Ball Mill PM 400, 220-230V, 50/60 Hz

$54,601.19

Inc. GST

Manufacturer P/N

205350001

Part Number

9.739 274

Manufacturer

Retsch

Depth

780 mm

Frequently asked questions

It is designed for mixing and grinding soft, medium-hard, extremely hard, brittle, and fibrous materials. This Retsch mill is used whenever high degrees of fineness down to the submicron range are required in a short time. In addition to dry and wet grinding, it is suitable for colloidal grinding and mechanical alloying of minerals, ores, chemicals, ceramics, and soils.
