Representative Image

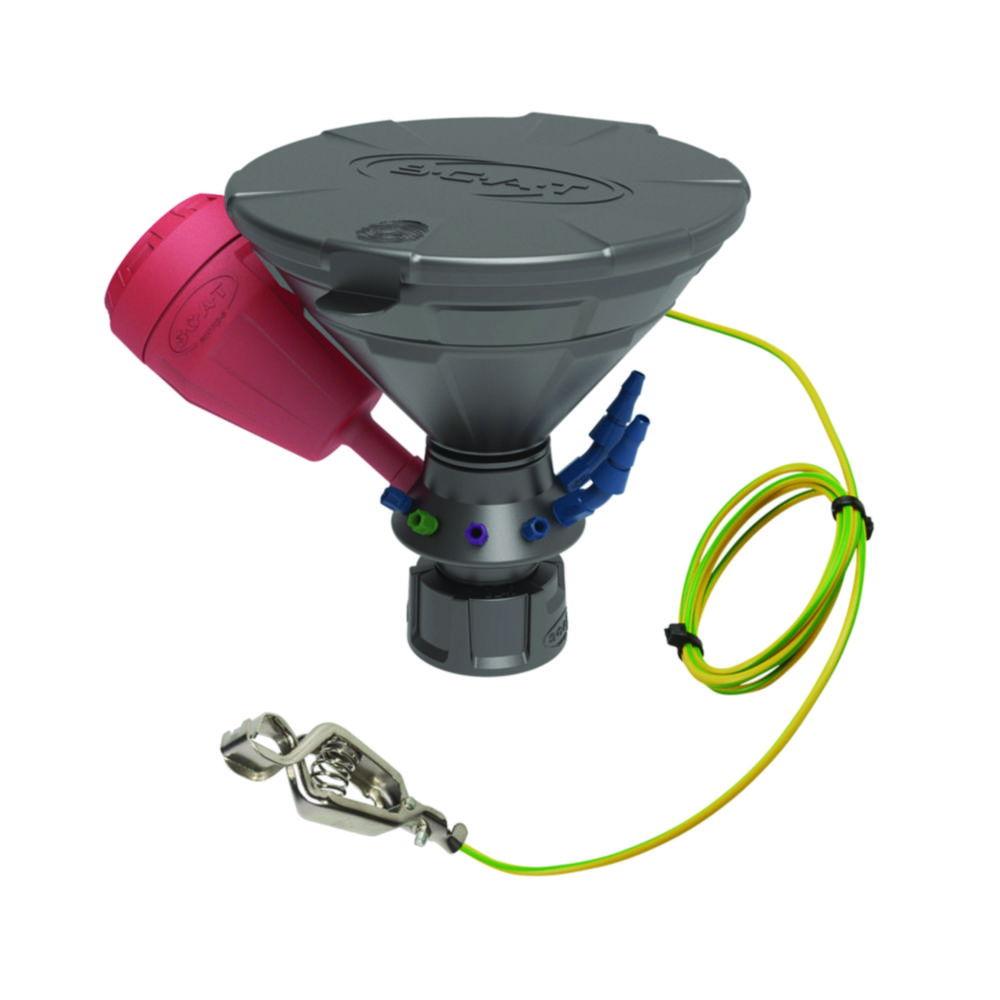

SCAT Universal Waste Hub "JAN" – GL45 Safety Funnel, 4x 1.6/2.3/3.2 mm OD, Electrostatic Conductive

Brand:SCAT

Thread

Specifications

Compare models
Capillary connections
4
Colour
Black
Connection for exhaust filter
1
Hose connections
3
No. of fittings
4x1,6/2,3/3,2 mm
No. of olives
3
Thread
GL 45
UNSPSC
41115700

$740.65

Inc. GST

Available soon

Product description

The SCAT Universal Waste Hub "JAN" – GL45 Safety Funnel is designed to ensure safe and efficient solvent waste disposal in laboratory environments. Compatible with GL45-threaded containers, this waste funnel is ideal for collecting HPLC and other laboratory waste liquids securely and without odors. The system includes a funnel with a hinged lid and sealing ring, mounted on a SafetyWasteCap with an exhaust air filter to minimize vapor release. Its electrostatically conductive design and grounding cable prevent static charge build-up, providing additional protection when working with flammable liquids. Hose olives (PP) are included for tubing with an inner diameter of 5 to 11.5 mm, and a removable sieve offers effective filtration of particulates.

Key Features:

  • Brand: SCAT
  • Model: Universal Waste Hub "JAN"
  • Thread Type: GL45
  • Connection Ports: 4x 1.6/2.3/3.2 mm OD for secure tubing connections
  • Cap Design: SafetyWasteCap with integrated exhaust air filter
  • Funnel: Hinged lid with sealing ring to prevent spills and vapor escape
  • Filtration: Removable sieve for solid particle retention
  • Grounding: Includes grounding cable for electrostatic safety
  • Hose Compatibility: PP hose olives for tubing I.D. 5–11.5 mm
  • Material: Electrostatic conductive and chemically resistant construction
  • Application: Odor-free and safe solvent waste disposal in laboratories

Scope of Supply:

  • Safety funnel
  • 3 hose olives (NPT 1/8")
  • 3 blind fittings (NPT 1/8")
  • Fittings: 4 x 1.6 mm, 4 x 2.3 mm, 4 x 3.2 mm
  • 4 x blind fittings (UNF 1/4")
  • 1 x blind fitting GL 14
  • Exhaust filter size M
  • Grounding cable

The SCAT Universal Waste Hub "JAN" – GL45 offers a comprehensive, electrostatically safe system for handling solvent waste, making it essential for laboratories that demand safety, cleanliness, and compliance.

Downloads

Compare similar models

Universal Waste Hub "JAN" - GL45 safety funnel, 4x 1,6/2,3/3,2 mm OD, electrostatic conductive

Manufacturer P/N

420045

Part Number

4.680 948

Manufacturer

SCAT

Thread

GL 45

Universal Waste Hub "JAN" - S60/61 safety funnel, 4x 1,6/2,3/3,2 mm OD, electrostatic conductive

Manufacturer P/N

420060

Part Number

4.680 949

Manufacturer

SCAT

Thread

S 60/61

More items to explore

Universal Waste Hub, electrostatic conductive, with mechanical level control

ProductMaterialCapillary connectionsMfr#Part#AvailabilityPrice
HDPE44201604.687 099$965.67

Frequently asked questions

It is designed to ensure safe and efficient solvent waste disposal in laboratory environments. Compatible with GL45-threaded containers, this waste funnel is ideal for collecting HPLC and other laboratory waste liquids securely and without odors. The system includes a funnel with a hinged lid and sealing ring, mounted on a SafetyWasteCap with an exhaust air filter to minimize vapor release. Its electrostatically conductive design and grounding cable prevent static charge build-up, providing additional protection when working with flammable liquids. Hose olives (PP) are included for tubing with an inner diameter of 5 to 11.5 mm, and a removable sieve offers effective filtration of particulates.
