Representative Image

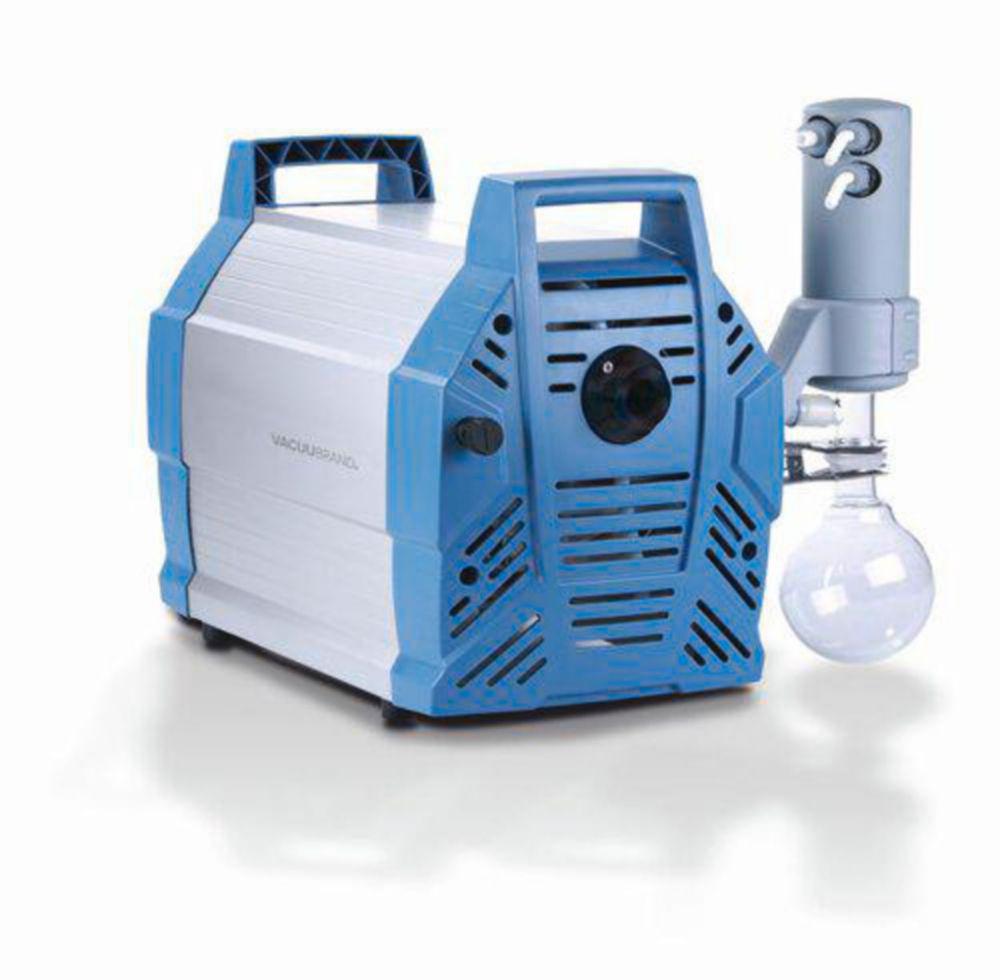

Vacuubrand Chemistry Membrane Pump MD 12C NT +EK, Three-Step, 230 V / 50-60 Hz, with UK Plug

Plug type

Specifications

Compare models
HS Code #
84141089
Depth
528 mm
Dimensions (WxDxH)
387 x 528 x 395 mm
Flow rate
12 m³/h
Height
395 mm
Plug type
UK
Type
MD 12C NT + EK
Ultimate vacuum
2 mbar
Ultimate vacuum with gas ballast
4 mbar
UNSPSC
40151502
Width
387 mm

Alternative in-stock items

$22,643.83

Inc. GST

Available soon

Product description

The Vacuubrand Chemistry Membrane Pump MD 12C NT +EK is a high-performance, three-stage diaphragm pump designed for laboratory applications requiring efficient and reliable vacuum generation. Operating at 230 V with a frequency of 50-60 Hz, this pump is equipped with a UK mains cable for easy connection. It is ideal for chemical processing, sample handling, and other laboratory tasks that demand precise vacuum control.

Key Features:

  • Brand: Vacuubrand
  • Type: Three-stage diaphragm pump for high-performance vacuum generation
  • Voltage: 230 V
  • Frequency: 50-60 Hz
  • Plug Type: UK mains cable for easy connection
  • Ultimate Vacuum: 2 mbar (1.5 torr)
  • Ultimate Vacuum with Gas Ballast: 4 mbar (3 torr)
  • Max. Pumping Speed at 50 Hz: 12 m³/h
  • Max. Pumping Speed at 60 Hz: 7.0 cfm
  • Number of Heads: 8
  • Number of Stages: 3
  • Inlet Connection: Small flange KF DN 25
  • Outlet Connection: Hose nozzle DN 15 mm
  • Ambient Temperature Range (Operation): 10°C to 40°C
  • Ambient Temperature Range (Storage): -10°C to 60°C
  • Max. Back Pressure (Abs.): 1.1 bar

Note: An End User Declaration form must be completed after placing the order for this item.

This membrane pump is an essential tool for laboratories that require a dependable, efficient vacuum pump for a wide range of chemical and sample processing applications. The included emission condenser (EK) enables near-complete solvent recovery, efficient recycling, and active protection of the environment.

Downloads

Accessories

Vacuum tubings, PVC

ProductMaterialExt. ØMfr#Part#AvailabilityPrice
PVC15.9 mm206860604.714 081$143.26
PVC34.9 mm206860634.714 084$377.68
PVC38.1 mm206860654.714 085$439.07
PVC15.9 mm206860614.714 082$167.44
PVC22.3 mm206860624.714 083$221.40
