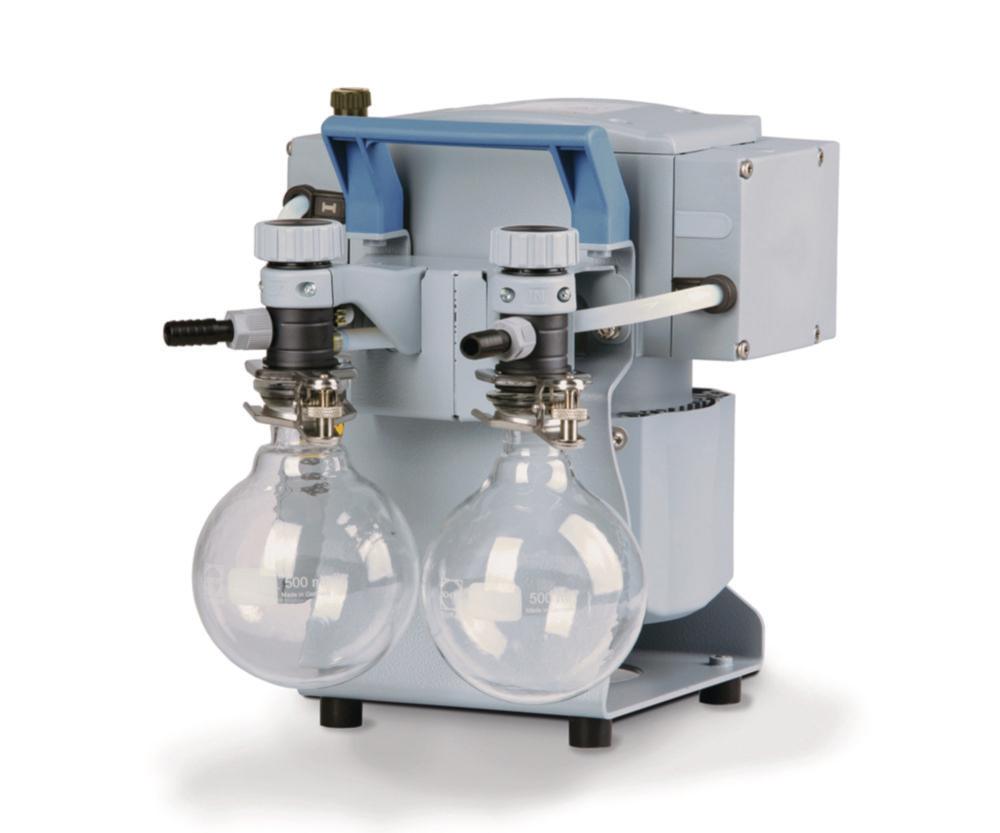

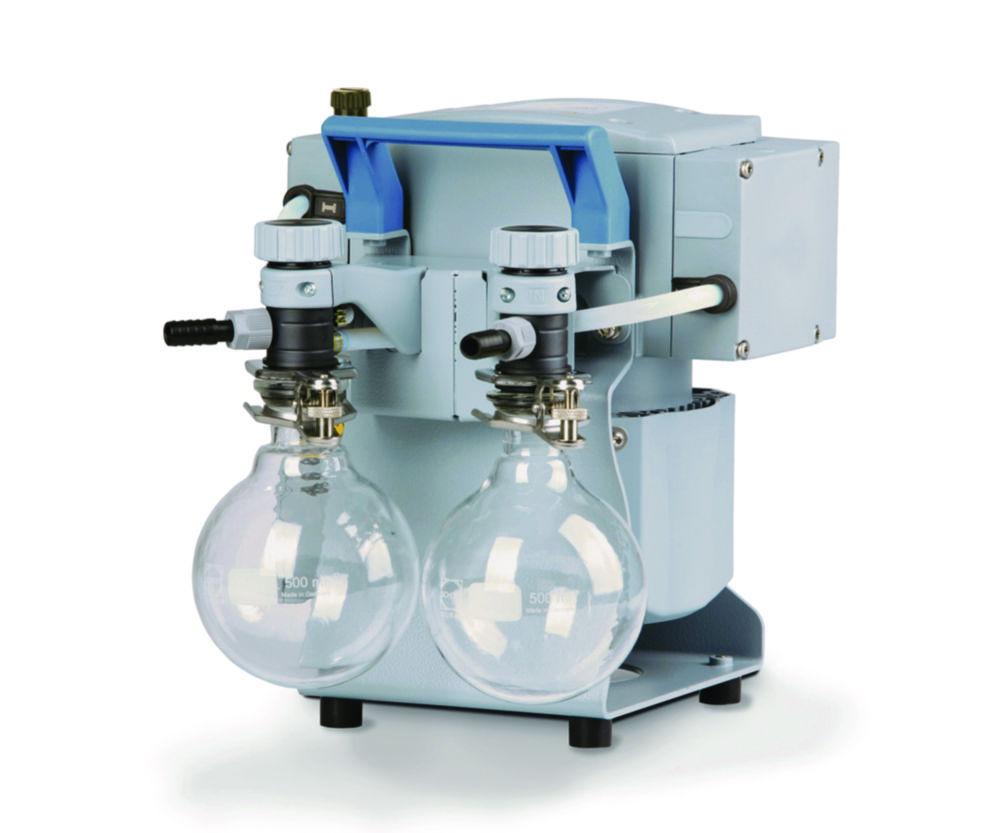

Vacuubrand Chemistry Vacuum System MZ 2C NT + 2 AK, 230 V/50–60 Hz

Plug type

Specifications

Compare models
HS Code #
84141089
Depth
319 mm
Dimensions (WxDxH)
243 x 319 x 309 mm
Flow rate
2.0 m³/h
Height
309 mm
Plug type
EU
Type
MZ 2C NT + 2AK
Ultimate vacuum
7 mbar
Ultimate vacuum with gas ballast
12 mbar
UNSPSC
40151502
Width
243 mm

Alternative in-stock items

$7,408.41

Inc. GST

Available soon

Product description

The Vacuubrand Chemistry Vacuum System MZ 2C NT + 2 AK is a high-performance two-stage diaphragm pump designed for demanding laboratory applications. Operating at 230 V/50–60 Hz, this system offers a maximum pumping speed of 2 m³/h at 50 Hz and 1.4 cfm at 60 Hz. It achieves an ultimate vacuum of 7 mbar (5 torr) and 12 mbar (9 torr) with gas ballast, ensuring efficient removal of condensable vapors.

Key Features:

  • Brand: Vacuubrand
  • Model: MZ 2C NT + 2 AK
  • Voltage/Frequency: 230 V / 50–60 Hz
  • Maximum Pumping Speed: 2 m³/h (50 Hz), 1.4 cfm (60 Hz)
  • Ultimate Vacuum: 7 mbar (5 torr), 12 mbar (9 torr) with gas ballast
  • Number of Stages: 2
  • Number of Heads: 2
  • Inlet/Outlet Connections: Hose nozzle DN 8–10 mm
  • Ambient Temperature Range (Operation): 10°C to 40°C
  • Ambient Temperature Range (Storage): -10°C to 60°C
  • Weight: 13.6 kg
  • Noise Level: 45 dBA
  • Protection Class: IP 40 (IEC 60529)

This vacuum system is ideal for applications such as rotary evaporation, vacuum concentrators, and filtration in chemical, biological, and pharmaceutical laboratories. The included glass separator (AK) effectively retains particles and liquid droplets, ensuring clean and efficient operation.

Downloads

Accessories

Vacuum tubings, PVC

ProductMaterialExt. ØMfr#Part#AvailabilityPrice
PVC15.9 mm206860604.714 081$143.26
PVC34.9 mm206860634.714 084$377.68
PVC38.1 mm206860654.714 085$439.07
PVC15.9 mm206860614.714 082$167.44
PVC22.3 mm206860624.714 083$221.40

Compare similar models

Chemistry vacuum system MZ 2C NT + 2 AK, CEE mains cable 230 V/50-60 Hz

Manufacturer P/N

20732500

Part Number

9.880 832

Manufacturer

VACUUBRAND​

Plug type

EU

Chemistry vacuum system MZ 2C NT + 2 AK, CH mains cable 230 V/50-60 Hz

Manufacturer P/N

20732501

Part Number

9.880 844

Manufacturer

VACUUBRAND​

Plug type

CH

Chemistry vacuum system MZ 2C NT + 2 AK, two stage, certification (NRTL): C/US, 230 V/50-60 Hz, UK/IN mains cable

Manufacturer P/N

20732502

Part Number

4.670 442

Manufacturer

VACUUBRAND​

Plug type

UK

Chemistry vacuum system MZ 2C NT +2AK, certification (NRTL): C/US, 100-115 V/50-60 V, 120 V/60 Hz, US mains cable

Manufacturer P/N

20732503

Part Number

4.670 443

Manufacturer

VACUUBRAND​

Plug type

US

More items to explore

Diaphragm pumps chemistry design, ME 1C

ProductPlug typeTypeMfr#Part#AvailabilityPrice
EUME 1C207211009.880 934In stock$2,219.55
UKME 1C207211029.880 936$2,219.55
CHME 1C207211019.880 935$2,219.55
USME 1C207211039.880 937$2,219.55

Chemistry vacuum system MZ 2C NT AK/M/D

ProductPlug typeTypeMfr#Part#AvailabilityPrice
EUMZ 2C NT + AK + M + D207327006.231 821$7,631.66
USMZ 2C NT + AK + M + D207327034.670 448$7,631.66
