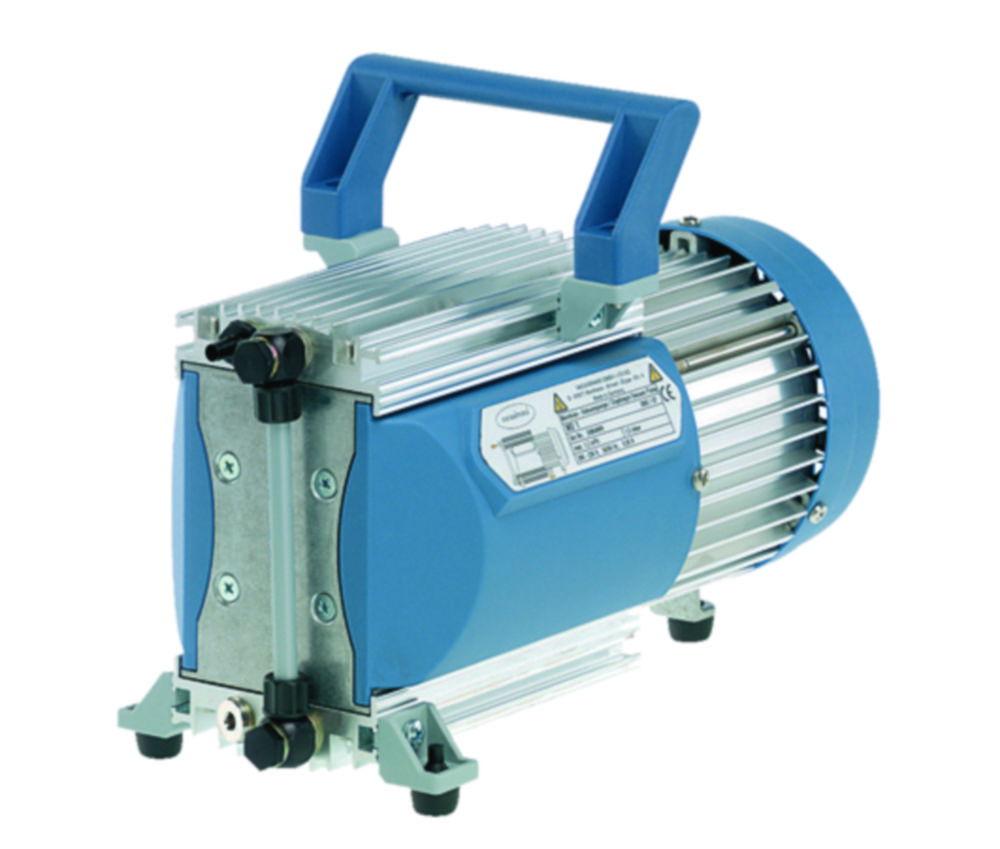

Vacuubrand Diaphragm Pump MD 1

The Vacuubrand MD 1 is a compact, oil-free, three-stage diaphragm vacuum pump designed for the efficient evacuation and pumping of non-corrosive gases. With an ultimate vacuum of 1.5 mbar and a maximum pumping speed of 1.2 m³/h at 50 Hz, it is ideal for applications requiring clean, dry vacuum conditions without the use of oil.

Key Features:

• Ultimate Vacuum: 1.5 mbar (1.1 torr)
• Maximum Pumping Speed: 1.2 m³/h (50 Hz)
• Number of Stages: 3
• Number of Heads: 4
• Power Supply: 100–120 V / 200–230 V, 50/60 Hz
• Rated Motor Power: 0.08 kW
• Rated Motor Speed: 1500/1800 min⁻¹ (50/60 Hz)
• Inlet Connection: Hose nozzle DN 6 mm
• Outlet Connection: Silencer / G1/8"
• Dimensions (L x W x H): 326 x 143 x 215 mm
• Weight: 7.3 kg
• Noise Level: 40 dBA
• Ambient Temperature Range (Operation): 10°C to 40°C
• Ambient Temperature Range (Storage): -10°C to 60°C
• Max. Back Pressure (abs.): 1.1 bar
• Protection Class: IP 40 (IEC 60529)
• Certifications: NRTL certified

The MD 1's three-stage design with precisely guided flat diaphragms provides outstanding pumping speed even close to the ultimate vacuum, especially when compared with similarly rated two-stage diaphragm pumps. Its ultra-low vibration and long diaphragm lifetime ensure stable performance over years of use. The flow path, constructed from aluminum and selected plastics (PTFE/FKM diaphragms and FKM valves), makes it suitable for a wide range of applications with non-corrosive gases.

Ideal for applications such as exhaust gas analysis, degassing of small amounts of viscous media, and as a backing pump for compact turbomolecular drag pumps, the MD 1 offers maintenance-free operation with high reliability.
