Representative Image

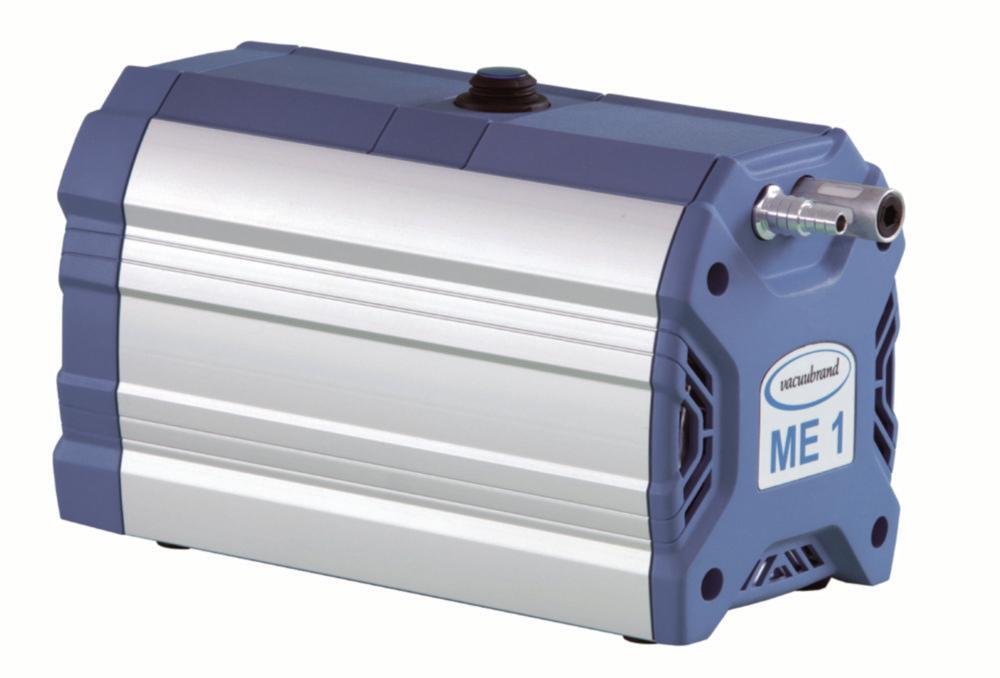

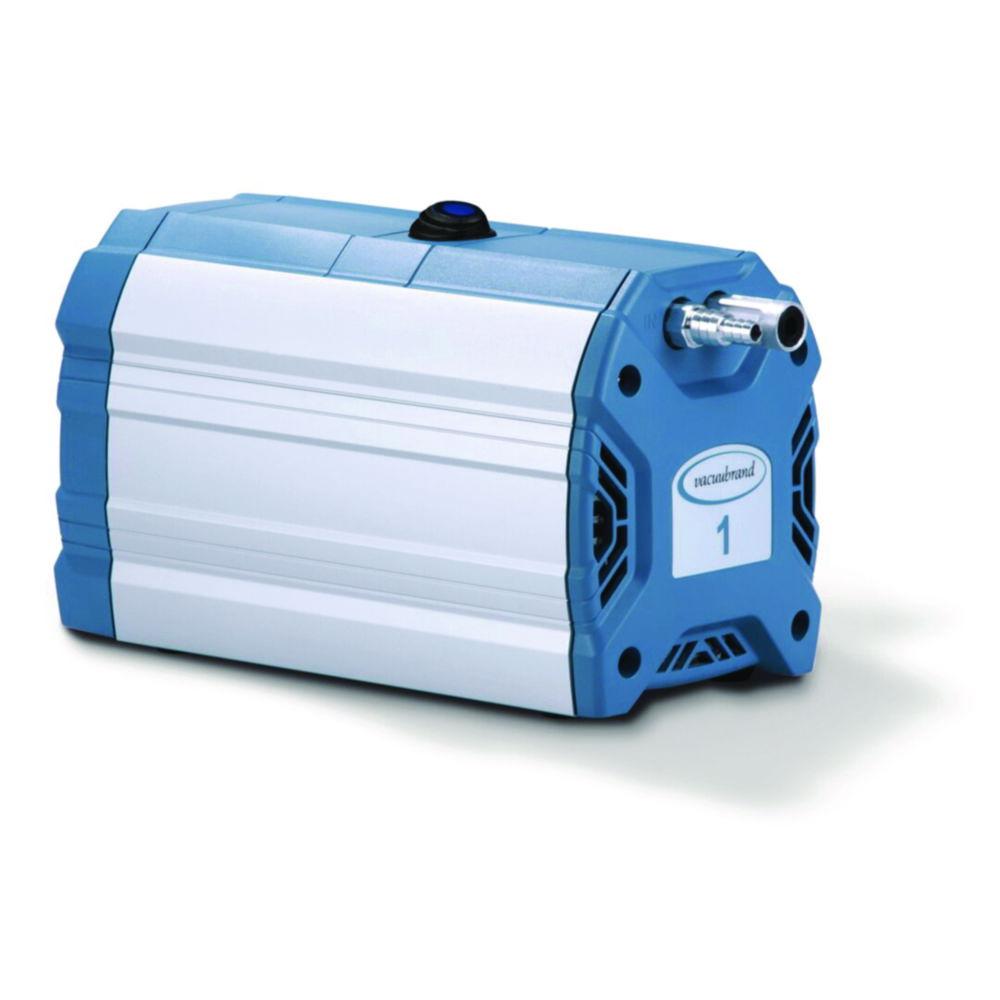

Vacuubrand Membrane Pump ME 1, 230 V, 50/60 Hz, CEE Mains Cable

Plug type

Specifications

Compare models
Connection pressure side
G1/8"
Connection suction side
DN 6-10 mm
Depth
270 mm
Dimensions (WxDxH)
121 x 270 x 155 mm
Flow rate
0.7 m³/h
Height
155 mm
No. of stages
1
Plug type
EU
Type
ME 1
Type of auxiliary energy
Mains connection

$2,054.67

Inc. GST

Available soon

Product description

The Vacuubrand ME 1 is a compact, oil-free diaphragm vacuum pump designed for efficient and reliable laboratory applications. Operating at 230 V with a CEE mains cable, it offers a maximum pumping speed of 0.7 m³/h and achieves an ultimate vacuum of 100 mbar (75 torr). Its chemically resistant PTFE diaphragm and valves ensure durability and longevity in various laboratory environments.

Key Features:

  • Brand: Vacuubrand
  • Model: ME 1
  • Voltage/Frequency: 230 V / 50–60 Hz
  • Maximum Pumping Speed: 0.7 m³/h (50 Hz)
  • Ultimate Vacuum: 100 mbar (75 torr)
  • Number of Stages: 1
  • Number of Heads: 1
  • Inlet Connection: Hose nozzle DN 6–10 mm
  • Outlet Connection: Silencer / G1/8"
  • Rated Motor Power: 0.04 kW
  • Rated Motor Speed: 1500/1800 min⁻¹ (50/60 Hz)
  • Protection Class: IP 40 (IEC 60529)
  • Dimensions (L x W x H): 270 x 121 x 155 mm
  • Weight: 5.4 kg
  • Noise Level: 49 dBA
  • Ambient Temperature Range (Operation): 10°C to 40°C
  • Ambient Temperature Range (Storage): -10°C to 60°C
  • Max. Back Pressure (abs.): 1.1 bar
  • Certifications: NRTL certified

This pump is ideal for applications such as vacuum filtration and sample preparation in chemical laboratories, offering maintenance-free operation with high chemical resistance.

Downloads

Accessories

Pumps, vacuum / pressure, diaphragm, Vacuubrand, accessories

ProductDescriptionUNSPSCMfr#Part#AvailabilityPrice
Safety valve, DN 16 (Stainless steel, PTFE)40151502206396839.880 971$543.61
Fork root40151502206386436.263 959$27.64
KF connection40151502206968209.880 843$253.38

Regulator valves for membrane pumps

ProductDescriptionForMfr#Part#AvailabilityPrice
vacuumME 1C206968439.880 939$852.27
vacuumME 1206968429.880 938$403.10
pressureME 2, MZ 2206968419.880 846$681.82
vacuumME 4 NT, MZ 4 NT, MD 4 NT206968409.880 845$518.27

Compare similar models

Membrane pump ME 1 230 V / 50-60 Hz, CEE-mains cable

Manufacturer P/N

20721000

Part Number

9.880 930

Manufacturer

VACUUBRAND​

Plug type

EU

Membrane pump ME 1 230 V / 50-60 Hz, UK-mains cable

Manufacturer P/N

20721002

Part Number

9.880 932

Manufacturer

VACUUBRAND​

Plug type

UK

Membrane pump ME 1 230 V / 50-60 Hz, CH-mains cable

Manufacturer P/N

20721001

Part Number

9.880 931

Manufacturer

VACUUBRAND​

Plug type

CH

Membrane pump ME 1 100-120 V / 50-60 Hz, US-main cable

Manufacturer P/N

20721003

Part Number

9.880 933

Manufacturer

VACUUBRAND​

Plug type

US
