Representative Image

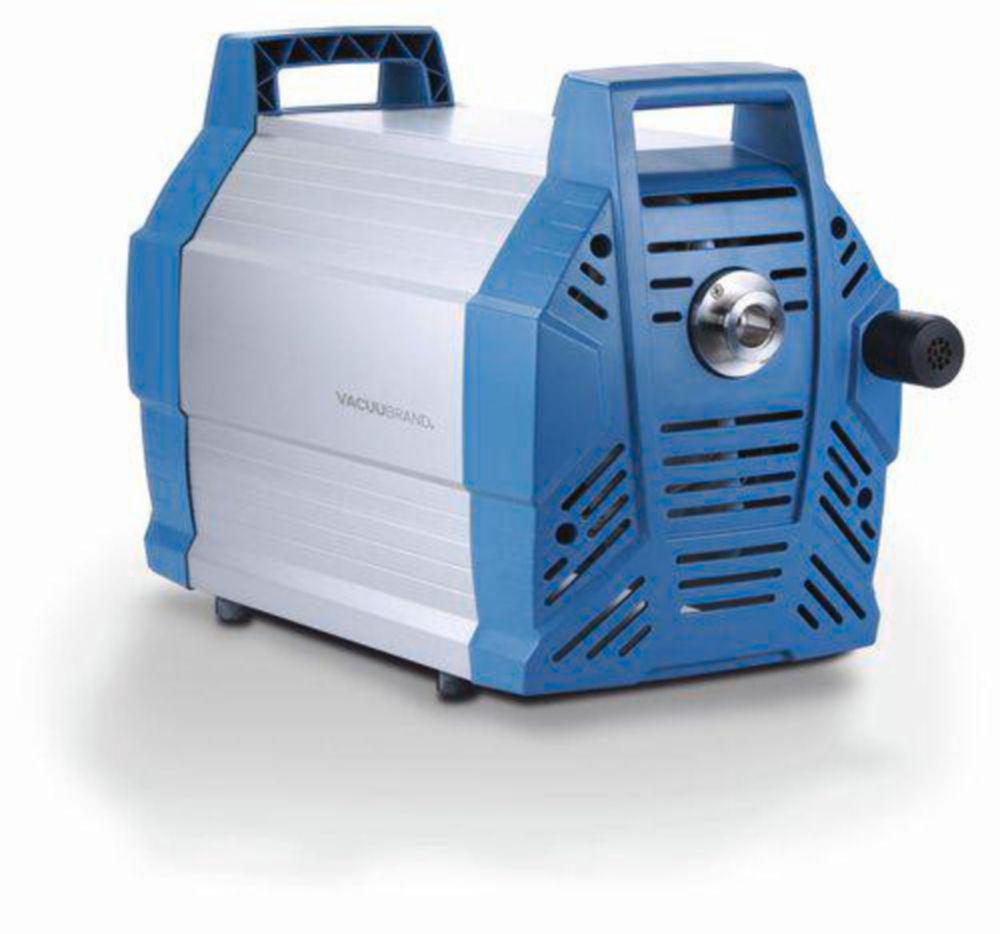

Vacuubrand Diaphragm Pump MV 10 NT, Four-Stage, 230 V, 50/60 Hz with CEE Mains Cable

Plug type

Specifications

Compare models
Connection pressure side
G1/2"
Connection suction side
KF DN 25
Depth
554 mm
Dimensions (WxDxH)
260 x 554 x 359 mm
Flow rate
10.4 m³/h
Height
359 mm
No. of stages
4
Plug type
EU
Type
MV 10 NT
Type of auxiliary energy
Mains connection

$17,496.96

Inc. GST

Available soon

Product description

The Vacuubrand MV 10 NT is a high-performance, four-stage diaphragm pump designed for continuous, oil-free evacuation and pumping of non-corrosive gases. Operating at 230 V and 50/60 Hz, this pump delivers a maximum pumping speed of 10.4 m³/h and achieves an ultimate vacuum of 0.5 mbar. Equipped with a CEE mains cable, it is suitable for European power systems.

Key Features:

  • Brand: Vacuubrand
  • Type: Diaphragm pump
  • Design: Four-stage operation for efficient vacuum generation
  • Voltage: 230 V, 50/60 Hz
  • Cable Type: CEE mains cable for compatibility with European systems
  • Maximum Pumping Speed: 10.4 m³/h
  • Ultimate Vacuum: 0.5 mbar
  • Noise Level: Whisper-quiet operation
  • Applications: Vacuum ovens, filtration processes, backing pump for turbomolecular drag pumps, analytical instruments

The Vacuubrand MV 10 NT diaphragm pump offers reliable, quiet, and oil-free vacuum performance, making it an excellent choice for various laboratory applications.



Frequently Asked Questions

1. What is the Vacuubrand Diaphragm Pump MV 10 NT, Four-Stage, 230 V, 50/60 Hz with CEE Mains Cable used for?

It is a high-performance, four-stage diaphragm pump designed for continuous, oil-free evacuation and pumping of non-corrosive gases. Operating at 230 V and 50/60 Hz, this pump delivers a maximum pumping speed of 10.4 m³/h and achieves an ultimate vacuum of 0.5 mbar. Equipped with a CEE mains cable, it is suitable for European power systems.

2. Is this product suitable for Vacuum ovens, filtration processes, backing pump for turbomolecular drag pumps, analytical instruments?

Yes. It is designed for Vacuum ovens, filtration processes, backing pump for turbomolecular drag pumps, analytical instruments, and offers a voltage of 230 V, 50/60 Hz and a maximum pumping speed of 10.4 m³/h to support this kind of work.

3. What voltage and maximum pumping speed does this product have?

It has a voltage of 230 V, 50/60 Hz, a maximum pumping speed of 10.4 m³/h and an ultimate vacuum of 0.5 mbar.

4. What type and design does this product offer?

It offers diaphragm pump, four-stage operation for efficient vacuum generation, CEE mains cable for compatibility with European systems and whisper-quiet operation.

Downloads

Accessories

Sealing kit NT for chemistry diaphragm pumps NT

ProductForUNSPSCMfr#Part#AvailabilityPrice
MZ 2C NT40151502206968696.241 476$621.93
MD 4C NT40151502206968706.239 489$1,186.27
ME 4 NT, MZ 2 NT40151502206968609.880 902$361.64
ME 4C NT40151502206968649.880 906$361.64
MZ 2D NT40151502206968639.880 904$361.64
MV 2 NT / MD 4 NT40151502206968619.880 905$601.20
ME 8 NT40151502206968629.880 903$497.54
ME 8C NT40151502206968679.880 907$702.55

Vacuum tubings, PVC

ProductMaterialExt. ØMfr#Part#AvailabilityPrice
PVC15.9 mm206860604.714 081$177.37
PVC34.9 mm206860634.714 084$467.60
PVC38.1 mm206860654.714 085$543.61
PVC15.9 mm206860614.714 082$207.31
PVC22.3 mm206860624.714 083$274.11

Compare similar models

Membrane pump MV 10 NT four-step, 230 V, 50-60 Hz with CEE mains cable

Manufacturer P/N

20744000

Part Number

9.880 954

Manufacturer

VACUUBRAND​

Plug type

EU

Diaphragm pump MV 10 NT, four-stage, 100-120 V / 50-60 Hz, US mains cable

Manufacturer P/N

20744003

Part Number

4.670 568

Manufacturer

VACUUBRAND​

Plug type

US

More items to explore

Diaphragm pumps, Aluminium PTFE design, ME 1

ProductPlug typeTypeMfr#Part#AvailabilityPrice
EUME 1207210009.880 930$2,054.67
UKME 1207210029.880 932$2,054.67
CHME 1207210019.880 931$2,054.67
USME 1207210039.880 933$2,054.67

Diaphragm pumps, Aluminium, MV 10 NT VARIO select

ProductPlug typeTypeMfr#Part#AvailabilityPrice
EUMV 10 NT VARIO select257441504.687 928$26,277.69
UKMV 10 NT VARIO select257441524.687 920$26,277.69
CHMV 10 NT VARIO select257441514.687 919$26,277.69
USMV 10 NT VARIO select257441534.701 152$26,277.69
