Representative image only

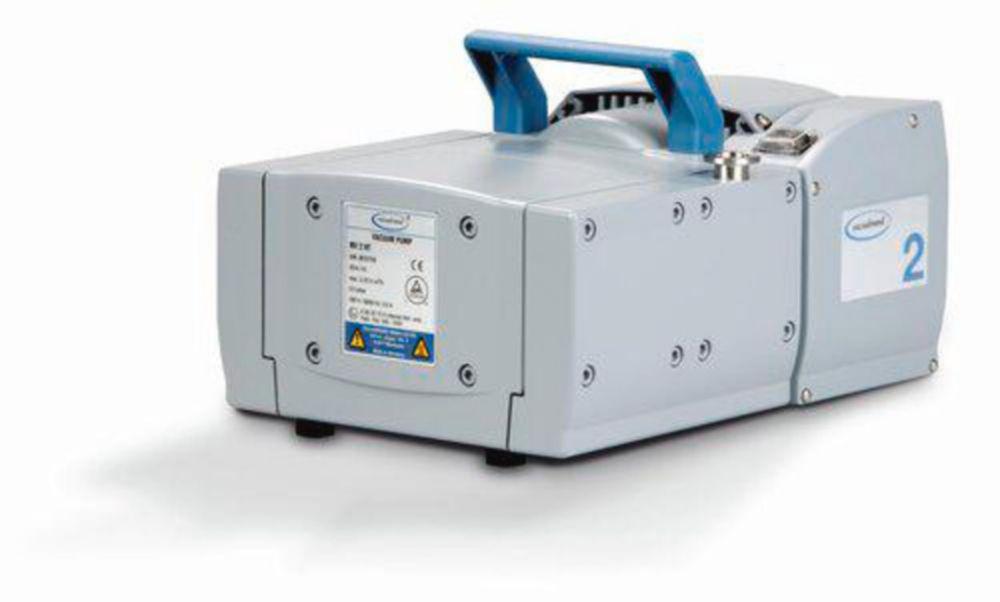

Vacuubrand Diaphragm Pump MV 2 NT, Four-Stage, 230 V, 50 Hz with CH Plug
Sold by: John Morris Scientific Pty Ltd
Available Soon
Part #: 9.880 893Manufacturer #: 20738001
Estimated shipping time:Contact us via live chat or via contact us page
See the available (34) variant productsProduct overview
The Vacuubrand MV 2 NT is a high-performance, oil-free diaphragm pump designed for continuous evacuation and pumping of non-aggressive gases. This four-stage pump delivers an ultimate vacuum of 0.5 mbar and a maximum pumping speed of 2.2 m³/h at 50 Hz. Equipped with a Swiss (CH) plug, it is suitable for laboratories operating within Switzerland or those requiring compatibility with Swiss power systems. The MV 2 NT features a compact design, low noise level of 45 dBA, and maintenance-free operation, making it ideal for applications such as backing pumps for turbomolecular drag pumps, vacuum ovens, and analytical instruments.
Key Features:
- Brand: Vacuubrand
- Type: Diaphragm pump
- Design: Four-stage operation for efficient vacuum generation
- Voltage: 230 V, 50 Hz
- Plug Type: Swiss (CH) plug for compatibility with Swiss systems
- Maximum Pumping Speed: 2.2 m³/h
- Ultimate Vacuum: 0.5 mbar
- Noise Level: 45 dBA
- Weight: 16.4 kg
- Applications: Backing pump for turbomolecular drag pumps, vacuum ovens, analytical instruments
The Vacuubrand MV 2 NT diaphragm pump offers reliable, quiet, and oil-free vacuum performance, making it an excellent choice for various laboratory applications.
Product Specifications
- HS Code #84141089
- Connection pressure sideG1/4"
- Connection suction sideKF DN 16
- Depth328 mm
- Dimensions (WxDxH)239 x 328 x 198 mm
- Flow rate2.2 m³/h
- Height198 mm
- No. of stages4
- Plug typeCH
- TypeMV 2 NT
- Type of auxiliary energyMains connection
- Ultimate vacuum0.5 mbar
- UNSPSC40-15-15-48
- Width239 mm
Vacuubrand Diaphragm Pump MV 2 NT, Four-Stage, 230 V, 50 Hz with CH Plug
$8,773.74
