Representative image only

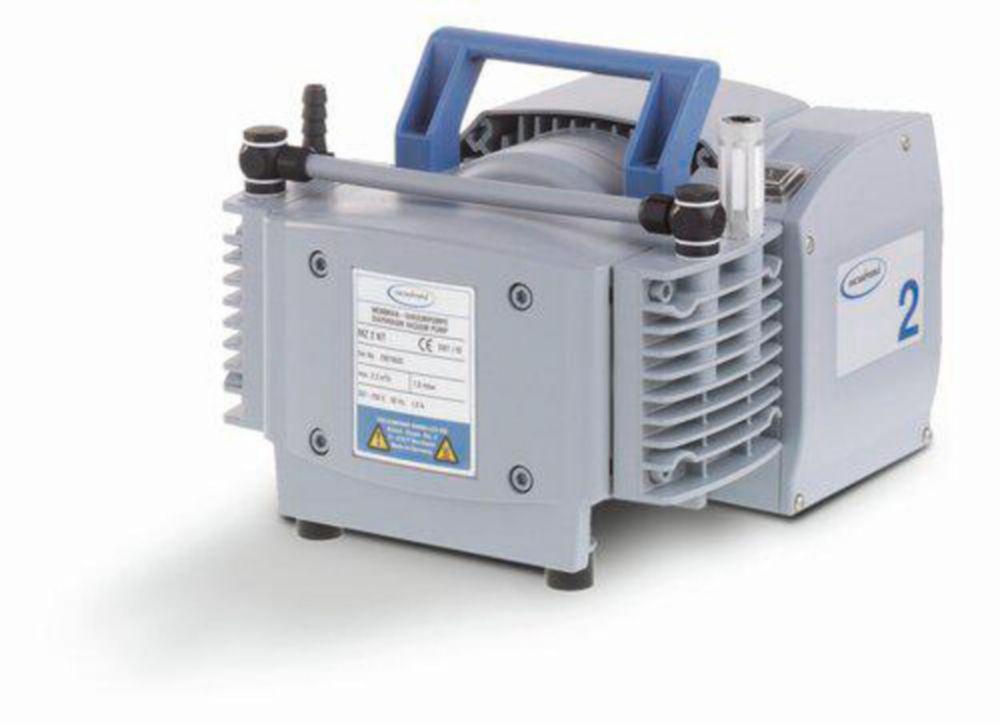

Vacuubrand MZ 2 NT Diaphragm Pump, Two-Stage, 230 V, 50 Hz with Swiss Plug
Sold by: John Morris Scientific Pty Ltd
Available Soon
Part #: 9.880 888Manufacturer #: 20732001
Estimated shipping time:Contact us via live chat or via contact us page
See the available (34) variant productsProduct overview
The Vacuubrand MZ 2 NT is a high-performance, oil-free diaphragm pump designed for continuous evacuation and pumping of non-corrosive gases in laboratory applications. Operating at 230 V and 50 Hz, this two-stage pump delivers a maximum pumping speed of 2.2 m³/h and achieves an ultimate vacuum of 7 mbar. Equipped with a Swiss plug (Plug CH), it ensures compatibility with Swiss power systems.
Key Features:
- Brand: Vacuubrand
- Type: Diaphragm (membrane) vacuum pump
- Design: Two-stage, two-head diaphragm pump for efficient vacuum generation
- Voltage: 230 V, 50 Hz
- Plug Type: Swiss plug (Plug CH) for compatibility with Swiss power systems
- Maximum Pumping Speed: 2.2 m³/h at 50 Hz
- Ultimate Vacuum: 7 mbar (5.2 torr)
- Noise Level: Approximately 45 dBA
- Weight: 11.0 kg
- Applications: Rotary evaporators, vacuum drying ovens, vacuum distillation columns, and other similar applications
The MZ 2 NT features chemically resistant materials for all internal parts in contact with pumped media, ensuring durability and longevity. Its compact design, low noise level, and maintenance-free operation make it an excellent choice for various laboratory applications.
Product Specifications
- HS Code #84141089
- Connection pressure sideG1/4"
- Connection suction sideDN 8-10 mm
- Depth243 mm
- Dimensions (WxDxH)239 x 243 x 198 mm
- Flow rate2.2 m³/h
- Height198 mm
- No. of stages2
- Plug typeCH
- TypeMZ 2 NT
- Type of auxiliary energyMains connection
- Ultimate vacuum7 mbar
- UNSPSC40-15-15-48
- Width239 mm
Vacuubrand MZ 2 NT Diaphragm Pump, Two-Stage, 230 V, 50 Hz with Swiss Plug
$4,111.93
