Representative Image

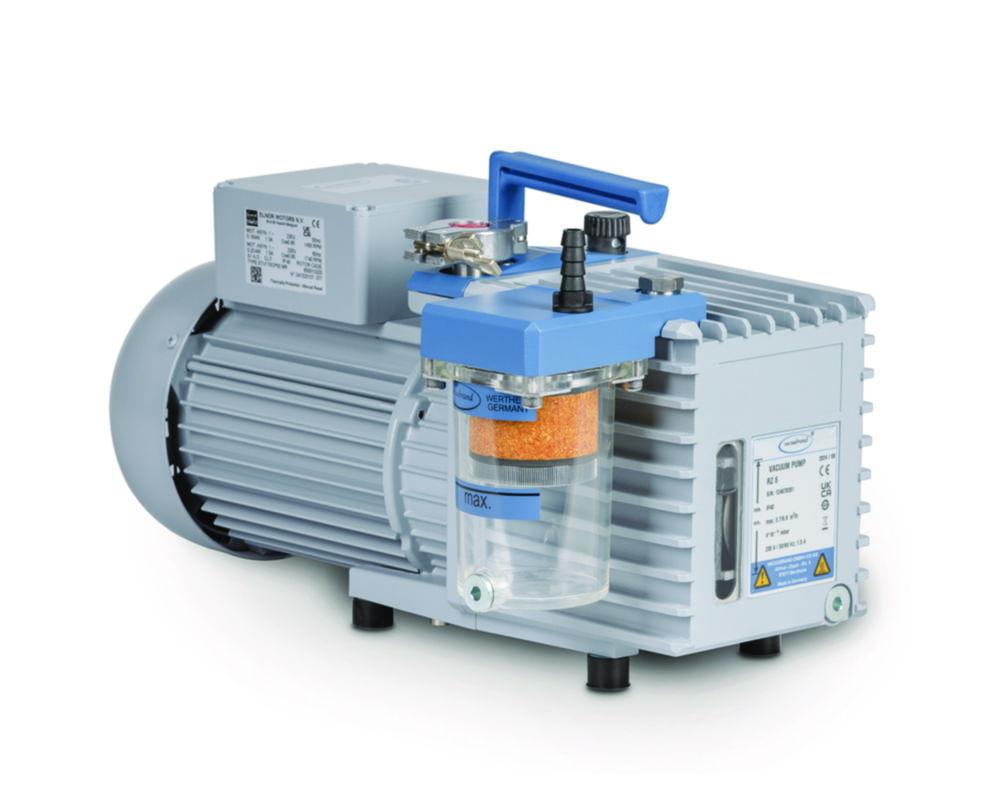

Vacuubrand Rotary Vane Pump RZ 6, Two-Stage, 230 V/50–60 Hz, with Oil Mist Filter FO, CEE Mains Cable

Plug type

Specifications

Compare models
HS Code #
84141025
Connection pressure side
DN 8-10 mm
Connection suction side
KF DN 16
Depth
420 mm
Dimensions (WxDxH)
156 x 420 x 240 mm
Flow rate
95 l/min
Power supply frequency
50/60 Hz
Height
240 mm
IP code
IP 40
Max. voltage
230 V
No. of stages
2

$6,883.75

Inc. GST

Available soon

Product description

The Vacuubrand Rotary Vane Pump RZ 6 is a high-performance, two-stage vacuum pump designed for demanding laboratory and industrial applications. Operating at 230 V/50–60 Hz, this pump is equipped with a CEE mains cable and includes an oil mist filter FO, ensuring compatibility with European electrical standards and efficient operation.

Key Features:

  • Brand: Vacuubrand
  • Model: RZ 6
  • Type: Two-stage rotary vane pump
  • Voltage: 230 V/50–60 Hz
  • Power Connection: CEE mains cable
  • Included Components: Oil mist filter FO
  • Pumping Speed: 5.7 m³/h at 50 Hz
  • Ultimate Vacuum: 0.002 mbar
  • Ultimate Vacuum with Gas Ballast: 0.01 mbar
  • Water Vapor Tolerance: 40 mbar with gas ballast
  • Noise Level: 50 dBA
  • Weight: 17 kg
  • Dimensions (W × D × H): 156 × 420 × 240 mm
  • Applications: Suitable for lyophilization, fine vacuum distillation, and drying chambers

Scope of Supply:

  • Rotary vane pump
  • Oil mist filter FO
  • manual

This pump offers robust performance and is ideal for applications that demand consistent and efficient vacuum generation.

Accessories

Vacuum tubings, PVC

ProductMaterialExt. ØMfr#Part#AvailabilityPrice
PVC15.9 mm206860604.714 081$143.26
PVC34.9 mm206860634.714 084$377.68
PVC38.1 mm206860654.714 085$439.07
PVC15.9 mm206860614.714 082$167.44
PVC22.3 mm206860624.714 083$221.40

Compare similar models

Rotary vane pump RZ 6 two stage, 230 V / 50-60 Hz, incl. FO, CEE mains cable

Manufacturer P/N

20798049

Part Number

6.328 052

Manufacturer

VACUUBRAND​

Plug type

EU

Rotary vane pump RZ 6 two stage, 230 V / 50-60 Hz, incl. FO, CH mains cable

Manufacturer P/N

20798049 CH

Part Number

6.328 053

Manufacturer

VACUUBRAND​

Plug type

CH

Rotary vane pump RZ 6 two stage, 230 V / 50-60 Hz, incl. FO, UK mains cable

Manufacturer P/N

20798049 UK

Part Number

6.328 054

Manufacturer

VACUUBRAND​

Plug type

UK

More items to explore

Rotary vane pump RE 6, one-stage

Rotary vane pump RZ 6, two-stage

ProductPlug typeTypeMfr#Part#AvailabilityPrice
CHRZ 6207981314.691 555$6,625.15
UKRZ 6207981324.691 556$6,625.15
EURZ 6207981304.691 554$6,625.15
USRZ 6207981364.691 565$7,054.92

Frequently asked questions

It is a high-performance, two-stage vacuum pump designed for demanding laboratory and industrial applications. Operating at 230 V/50–60 Hz, this pump is equipped with a CEE mains cable and includes an oil mist filter FO, ensuring compatibility with European electrical standards and efficient operation.
