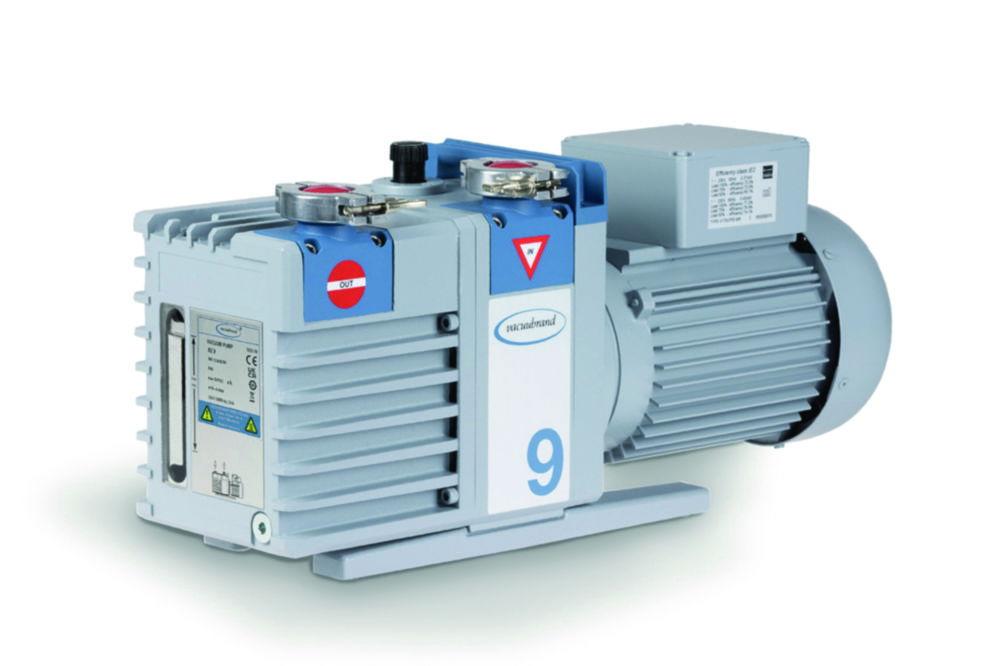

Vacuubrand Rotary Vane Pump RZ 9 Two-Stage, 230 V/50–60 Hz, UK/IN Mains Cable
Sold by: John Morris Scientific Pty Ltd
Available Soon
Part #: 4.691 930Manufacturer #: 20798142
Estimated shipping time:Contact us via live chat or via contact us page
See the available (2) variant productsProduct overview
The Vacuubrand Rotary Vane Pump RZ 9 is a high-performance, two-stage vacuum pump designed for demanding laboratory and industrial applications. Operating at 230 V/50–60 Hz, this pump is equipped with a UK/IN mains cable, ensuring compatibility with UK and Indian electrical standards.
Key Features:
- Brand: Vacuubrand
- Model: RZ 9
- Type: Two-stage rotary vane pump
- Voltage: 230 V/50–60 Hz
- Power Connection: UK/IN mains cable
- Pumping Speed: 8.9 m³/h at 50 Hz
- Ultimate Vacuum: 2 x 10−3 mbar
- Water Vapor Tolerance: 40 mbar with gas ballast
- Noise Level: 52 dBA
- Weight: 24.8 kg
- Dimensions (L × W × H): 503 × 156 × 240 mm
- Applications: Suitable for lyophilization, vacuum distillation, and drying chambers
This pump offers robust performance and is ideal for applications that demand consistent and efficient vacuum generation.
Product Specifications
- HS Code #84141025
- Connection pressure sideKF DN 25
- Connection suction sideKF DN 25
- Depth503 mm
- Dimensions (WxDxH)156 x 503 x 240 mm
- Flow rate148.33 l/min
- Power supply frequency50/60 Hz
- Height240 mm
- IP codeIP 40
- Max. voltage230 V
- No. of stages2
- Noise level52 db(A)
- Plug typeUK
- Power supply230 V, 50/60 Hz
- Rated capacity300 W
- TypeRZ 9
- Type of auxiliary energyMains connection
- Ultimate vacuum0.002 mbar
- Ultimate vacuum with gas ballast0.01 mbar
- UNSPSC41105109
- Weight24.8 kg
- Width156 mm
- Manufacturer Article Number20798142
Vacuubrand Rotary Vane Pump RZ 9 Two-Stage, 230 V/50–60 Hz, UK/IN Mains Cable
$9,606.37
Variant products
Products related to this item (2)
product | Mfr # | Part # | Product name | Plug type | Type | Price | Availability | |
20798141 | 4.691 929 | Vacuubrand Rotary Vane Pump RZ 9 Two-Stage, 230 V/50–60 Hz, CH/CN Mains Cable
| CH | RZ 9 | $9,606.37 | |||
20798140 | 4.691 928 | Vacuubrand Rotary Vane Pump RZ 9 Two-Stage, 230 V/50–60 Hz, CEE Mains Cable
| CEE | RZ 9 | $9,606.37 |
