Representative Image

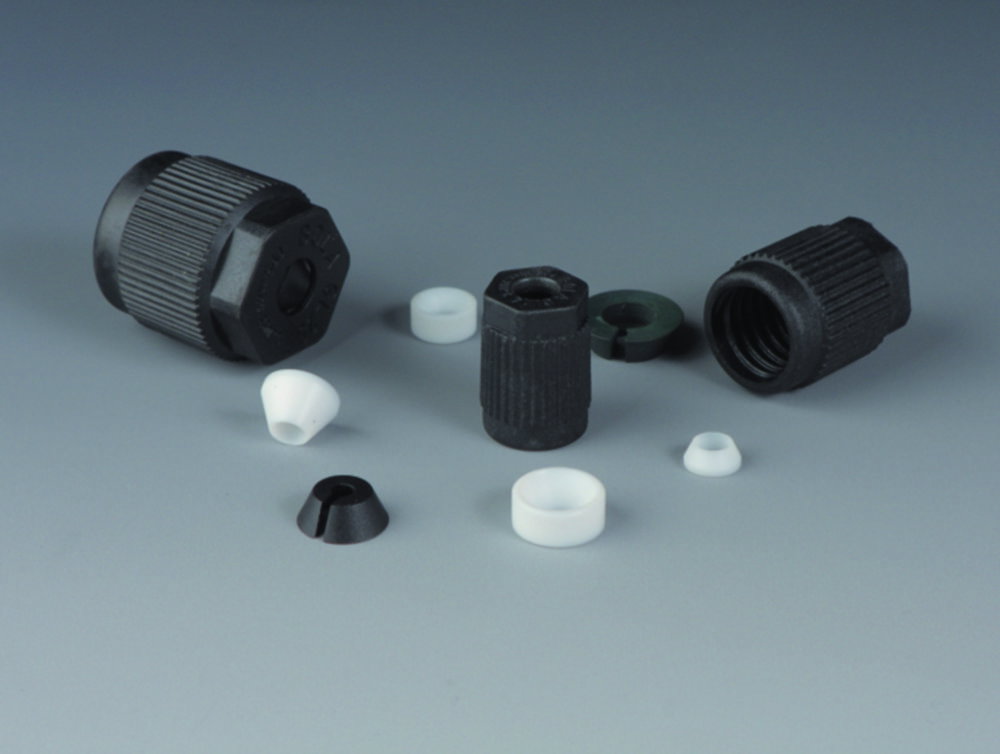

Bohlender HT Laboratory Screw Joint GL 18 Ø 1.6 mm, SW 22, PPS

Brand:Bohlender

For ext. tubing Ø

Specifications

Compare models
Colour
Black
For ext. tubing Ø
1.60 mm
Material
PPS
Thread
GL 18
UNSPSC
41121815

$143.52

Inc. GST

Available soon

Product description

The Bohlender HT Laboratory Screw Joint GL 18 Ø 1.6 mm, SW 22, PPS is designed for connecting hard-walled tubing or tubes made of glass, plastic, or metal to equipment and fittings with GL threads. Ideal for securing probes, thermometers, dip tubes, or cables in reaction vessels.

Key Features:

  • Brand: Bohlender
  • Material: Black PPS (Polyphenylene Sulfide) for durability and chemical resistance
  • Compatibility: Suitable for external tubing with an outer diameter of 1.6 mm
  • Thread Size: GL 18
  • Seal Materials: V-ring (PPS), tapered ring and sealing plate (both PTFE), and O-ring (FKM) for tubing diameters under 3 mm (not exposed to the medium)
  • Temperature Resistance: From -50°C to 250°C
  • Pressure Stability: Up to 10 bar
  • Vacuum Compatibility: Suitable for vacuum applications

This screw joint ensures a secure and leak-proof connection, making it essential for high-temperature laboratory applications requiring precise and reliable fittings.



Frequently Asked Questions

1. What is the Bohlender HT Laboratory Screw Joint GL 18 Ø 1.6 mm, SW 22, PPS used for?

It is designed for connecting hard-walled tubing or tubes made of glass, plastic, or metal to equipment and fittings with GL threads. Ideal for securing probes, thermometers, dip tubes, or cables in reaction vessels.

2. Is this product suitable for connecting hard-walled tubing or tubes made of glass, plastic, or metal to equipment and fittings with GL threads?

Yes. It is designed for connecting hard-walled tubing or tubes made of glass, plastic, or metal to equipment and fittings with GL threads, and offers a pressure stability of up to 10 bar to support this kind of work.

3. What pressure stability does this product have?

It has a pressure stability of up to 10 bar.

4. What is this product made from and what features does it include?

It is made from black PPS (Polyphenylene Sulfide) for durability and chemical resistance. It is compatible with external tubing with an outer diameter of 1.6 mm. It also offers GL 18, v-ring (PPS), tapered ring and sealing plate (both PTFE), and O-ring (FKM) for tubing diameters under 3 mm (not exposed to the medium) and from -50°C to 250°C.

Compare similar models

HT Laboratory Screw Joint GL 18 Ø 1,6 mm, SW 22, PPS

Manufacturer P/N

D 629-18

Part Number

6.401 350

Manufacturer

Bohlender

For ext. tubing Ø

1.60 mm

HT Laboratory Screw Joint GL 18 Ø 2,0 mm, SW 22, PPS

Manufacturer P/N

D 629-22

Part Number

6.800 818

Manufacturer

Bohlender

For ext. tubing Ø

2.00 mm

HT Laboratory Screw Joint GL 18 Ø 9,52 mm, SW 22, PPS

Manufacturer P/N

D 629-68

Part Number

6.203 275

Manufacturer

Bohlender

For ext. tubing Ø

9.52 mm

HT Laboratory Screw Joint GL 18 Ø 3,0 mm, SW 22, PPS

Manufacturer P/N

D 629-34

Part Number

6.088 255

Manufacturer

Bohlender

For ext. tubing Ø

3.00 mm

HT Laboratory Screw Joint GL 18 Ø 3,2 mm, SW 22, PPS

Manufacturer P/N

D 629-42

Part Number

7.603 086

Manufacturer

Bohlender

For ext. tubing Ø

3.20 mm

HT Laboratory Screw Joint GL 18 Ø 8,0 mm, SW 22, PPS

Manufacturer P/N

D 629-62

Part Number

6.800 813

Manufacturer

Bohlender

For ext. tubing Ø

8.00 mm

HT Laboratory Screw Joint GL 18 Ø 4,0 mm, SW 22, PPS

Manufacturer P/N

D 629-46

Part Number

6.800 812

Manufacturer

Bohlender

For ext. tubing Ø

4.00 mm

HT Laboratory Screw Joint GL 18 Ø 6,0 mm, SW 22, PPS

Manufacturer P/N

D 629-54

Part Number

6.900 008

Manufacturer

Bohlender

For ext. tubing Ø

6.00 mm

HT Laboratory Screw Joint GL 18 Ø 10,0 mm, SW 22, PPS

Manufacturer P/N

D 629-74

Part Number

6.900 009

Manufacturer

Bohlender

For ext. tubing Ø

10.00 mm

HT Laboratory Screw Joint GL 18 Ø 6,35 mm, SW 22, PPS

Manufacturer P/N

D 629-56

Part Number

7.603 090

Manufacturer

Bohlender

For ext. tubing Ø

6.35 mm
