Representative Image

Bohlender HT Laboratory Screw Joint GL 18 Ø 6.0 mm, SW 22, PPS

Brand:Bohlender

For ext. tubing Ø

Specifications

Compare models
Colour
Black
For ext. tubing Ø
6.00 mm
Material
PPS
Thread
GL 18
UNSPSC
41121815

$56.70

Inc. GST

Available soon

Product description

The Bohlender HT Laboratory Screw Joint GL 18 Ø 6.0 mm, SW 22, PPS is engineered for secure and reliable connections in laboratory applications. Designed to fit GL 18 threaded equipment, this high-temperature screw joint accommodates external tubing with an outer diameter of 6.0 mm. Constructed from PPS (Polyphenylene Sulfide), it ensures excellent chemical resistance, with the medium only coming into contact with PTFE components.

Key Features:

  • Brand: Bohlender
  • Material: PPS (Polyphenylene Sulfide) for durability and chemical resistance
  • Thread Size: GL 18
  • External Tubing Diameter: 6.0 mm
  • Temperature Range: -50°C to +250°C
  • Pressure Stability: Up to 10 bar
  • Vacuum Compatibility: Suitable for vacuum applications

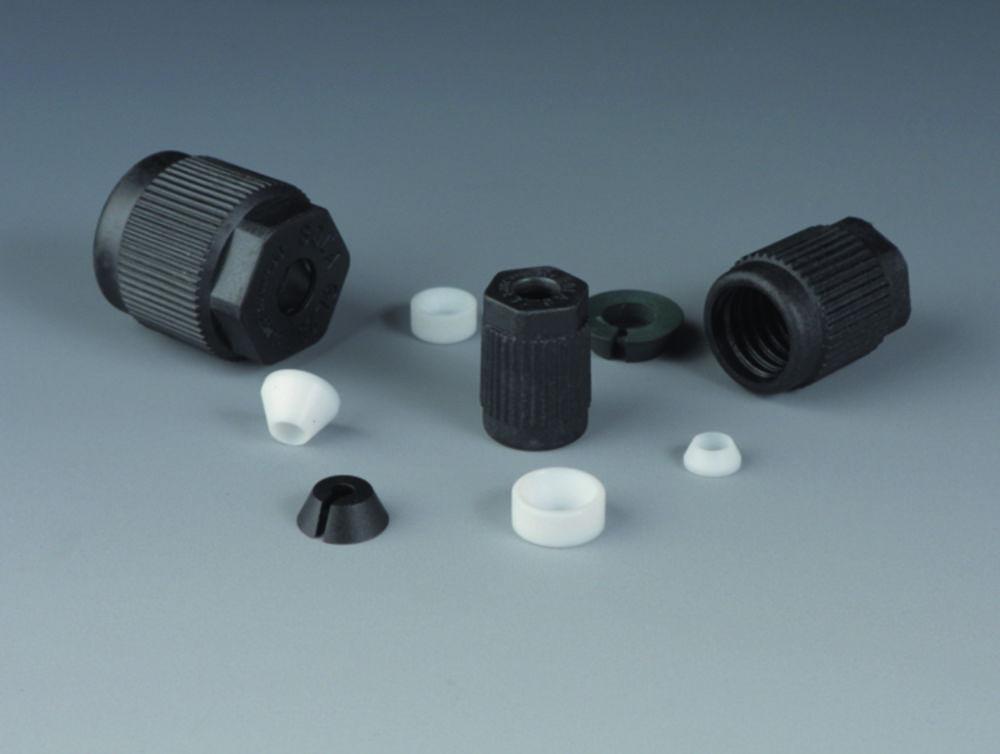

  • Included Components: Screw cap, clamping ring, sealing wedge, sealing plate, and O-ring

This screw joint is ideal for connecting hard-walled tubing or tubes made of glass, plastic, or metal, and is commonly used for fixing probes, thermometers, dip tubes, or cables in reaction vessels.



Frequently Asked Questions

1. What is the Bohlender HT Laboratory Screw Joint GL 18 Ø 6.0 mm, SW 22, PPS used for?

It is engineered for secure and reliable connections in laboratory applications. Designed to fit GL 18 threaded equipment, this high-temperature screw joint accommodates external tubing with an outer diameter of 6.0 mm. Constructed from PPS (Polyphenylene Sulfide), it ensures excellent chemical resistance, with the medium only coming into contact with PTFE components.

2. Is this product suitable for vacuum applications Included Components: Screw cap, clamping ring, sealing wedge, sealing plate, and O-ring This screw joint is ideal for connecting h?

Yes. It is designed for vacuum applications Included Components: Screw cap, clamping ring, sealing wedge, sealing plate, and O-ring This screw joint is ideal for connecting h, and offers an external tubing diameter of 6.0 mm and a pressure stability of up to 10 bar to support this kind of work.

3. What external tubing diameter and pressure stability does this product have?

It has an external tubing diameter of 6.0 mm and a pressure stability of up to 10 bar.

4. What is this product made from and what features does it include?

It is made from PPS (Polyphenylene Sulfide) for durability and chemical resistance. It also offers GL 18, -50°C to +250°C and suitable for vacuum applications.

Downloads

Compare similar models

HT Laboratory Screw Joint GL 18 Ø 6,0 mm, SW 22, PPS

Manufacturer P/N

D 629-54

Part Number

6.900 008

Manufacturer

Bohlender

For ext. tubing Ø

6.00 mm

HT Laboratory Screw Joint GL 18 Ø 2,0 mm, SW 22, PPS

Manufacturer P/N

D 629-22

Part Number

6.800 818

Manufacturer

Bohlender

For ext. tubing Ø

2.00 mm

HT Laboratory Screw Joint GL 18 Ø 1,6 mm, SW 22, PPS

Manufacturer P/N

D 629-18

Part Number

6.401 350

Manufacturer

Bohlender

For ext. tubing Ø

1.60 mm

HT Laboratory Screw Joint GL 18 Ø 9,52 mm, SW 22, PPS

Manufacturer P/N

D 629-68

Part Number

6.203 275

Manufacturer

Bohlender

For ext. tubing Ø

9.52 mm

HT Laboratory Screw Joint GL 18 Ø 3,0 mm, SW 22, PPS

Manufacturer P/N

D 629-34

Part Number

6.088 255

Manufacturer

Bohlender

For ext. tubing Ø

3.00 mm

HT Laboratory Screw Joint GL 18 Ø 3,2 mm, SW 22, PPS

Manufacturer P/N

D 629-42

Part Number

7.603 086

Manufacturer

Bohlender

For ext. tubing Ø

3.20 mm

HT Laboratory Screw Joint GL 18 Ø 8,0 mm, SW 22, PPS

Manufacturer P/N

D 629-62

Part Number

6.800 813

Manufacturer

Bohlender

For ext. tubing Ø

8.00 mm

HT Laboratory Screw Joint GL 18 Ø 4,0 mm, SW 22, PPS

Manufacturer P/N

D 629-46

Part Number

6.800 812

Manufacturer

Bohlender

For ext. tubing Ø

4.00 mm

HT Laboratory Screw Joint GL 18 Ø 10,0 mm, SW 22, PPS

Manufacturer P/N

D 629-74

Part Number

6.900 009

Manufacturer

Bohlender

For ext. tubing Ø

10.00 mm

HT Laboratory Screw Joint GL 18 Ø 6,35 mm, SW 22, PPS

Manufacturer P/N

D 629-56

Part Number

7.603 090

Manufacturer

Bohlender

For ext. tubing Ø

6.35 mm

Frequently asked questions

It is engineered for secure and reliable connections in laboratory applications. Designed to fit GL 18 threaded equipment, this high-temperature screw joint accommodates external tubing with an outer diameter of 6.0 mm. Constructed from PPS (Polyphenylene Sulfide), it ensures excellent chemical resistance, with the medium only coming into contact with PTFE components.
