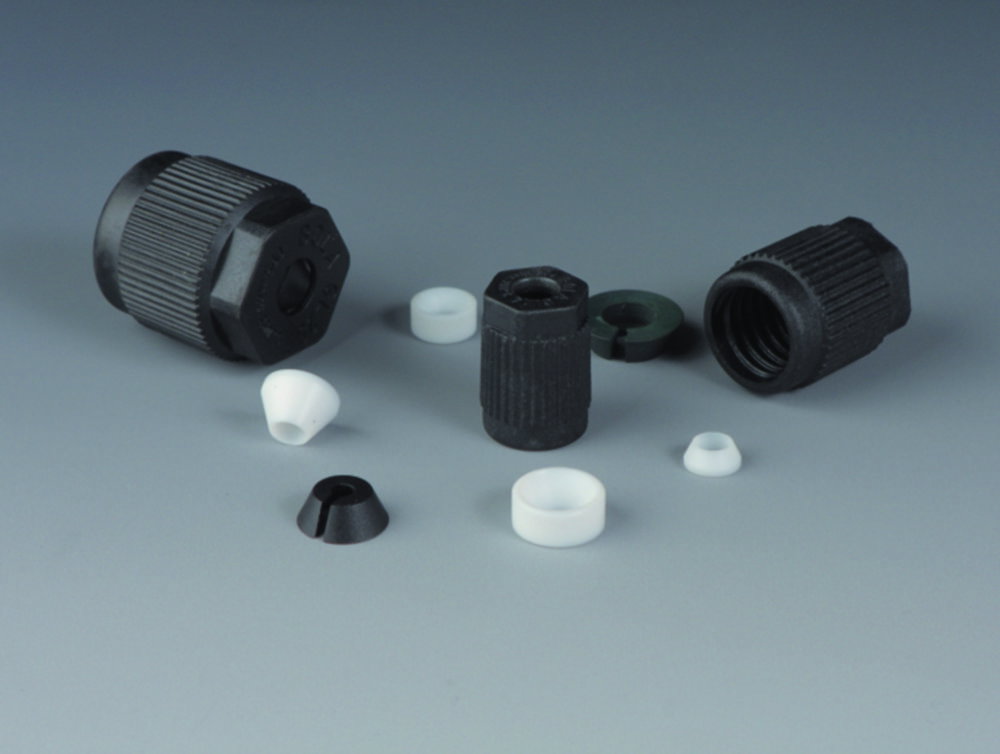

Bohlender HT Laboratory Screw Joint GL 18 Ø 4.0 mm, SW 22, PPS

Brand:Bohlender

For ext. tubing Ø

Specifications

Compare models
Colour
Black
For ext. tubing Ø
4.00 mm
Material
PPS
Thread
GL 18
UNSPSC
41121815

$74.42

Inc. GST

Available soon

Product description

The Bohlender HT Laboratory Screw Joint GL 18 Ø 4.0 mm, SW 22, PPS is designed for connecting equipment and fittings with GL threads to hard-walled tubing made of glass, plastic, or metal. Ideal for securing probes, thermometers, dip tubes, or cables in reaction vessels.

Key Features:

  • Brand: Bohlender
  • Material: PPS (Polyphenylene Sulfide) for the screw cap; PTFE (Polytetrafluoroethylene) for sealing components; FKM (Fluoroelastomer) for the O-ring
  • Thread Size: GL 18
  • Outer Diameter Compatibility: 4.0 mm tubing
  • Temperature Resistance: -50°C to +250°C
  • Pressure Resistance: Up to 10 bar
  • Vacuum Compatibility: Suitable for vacuum applications
  • Colour: Black

This screw joint ensures excellent chemical resistance, with the medium only coming into contact with PTFE components, making it suitable for various laboratory applications requiring secure and reliable connections.



Frequently Asked Questions

1. What is the Bohlender HT Laboratory Screw Joint GL 18 Ø 4.0 mm, SW 22, PPS used for?

It is designed for connecting equipment and fittings with GL threads to hard-walled tubing made of glass, plastic, or metal. Ideal for securing probes, thermometers, dip tubes, or cables in reaction vessels.

2. Is this product suitable for connecting equipment and fittings with GL threads to hard-walled tubing made of glass, plastic, or metal?

Yes. It is designed for connecting equipment and fittings with GL threads to hard-walled tubing made of glass, plastic, or metal, and offers an outer diameter compatibility of 4.0 mm tubing and a pressure resistance of up to 10 bar to support this kind of work.

3. What outer diameter compatibility and pressure resistance does this product have?

It has an outer diameter compatibility of 4.0 mm tubing and a pressure resistance of up to 10 bar.

4. What is this product made from and what features does it include?

It is made from PPS (Polyphenylene Sulfide) for the screw cap; PTFE (Polytetrafluoroethylene) for sealing components; FKM (Fluoroelastomer) for the O-ring. It also offers GL 18, -50°C to +250°C and suitable for vacuum applications.

Downloads

Compare similar models

HT Laboratory Screw Joint GL 18 Ø 4,0 mm, SW 22, PPS

Manufacturer P/N

D 629-46

Part Number

6.800 812

Manufacturer

Bohlender

For ext. tubing Ø

4.00 mm

HT Laboratory Screw Joint GL 18 Ø 2,0 mm, SW 22, PPS

Manufacturer P/N

D 629-22

Part Number

6.800 818

Manufacturer

Bohlender

For ext. tubing Ø

2.00 mm

HT Laboratory Screw Joint GL 18 Ø 1,6 mm, SW 22, PPS

Manufacturer P/N

D 629-18

Part Number

6.401 350

Manufacturer

Bohlender

For ext. tubing Ø

1.60 mm

HT Laboratory Screw Joint GL 18 Ø 9,52 mm, SW 22, PPS

Manufacturer P/N

D 629-68

Part Number

6.203 275

Manufacturer

Bohlender

For ext. tubing Ø

9.52 mm

HT Laboratory Screw Joint GL 18 Ø 3,0 mm, SW 22, PPS

Manufacturer P/N

D 629-34

Part Number

6.088 255

Manufacturer

Bohlender

For ext. tubing Ø

3.00 mm

HT Laboratory Screw Joint GL 18 Ø 3,2 mm, SW 22, PPS

Manufacturer P/N

D 629-42

Part Number

7.603 086

Manufacturer

Bohlender

For ext. tubing Ø

3.20 mm

HT Laboratory Screw Joint GL 18 Ø 8,0 mm, SW 22, PPS

Manufacturer P/N

D 629-62

Part Number

6.800 813

Manufacturer

Bohlender

For ext. tubing Ø

8.00 mm

HT Laboratory Screw Joint GL 18 Ø 6,0 mm, SW 22, PPS

Manufacturer P/N

D 629-54

Part Number

6.900 008

Manufacturer

Bohlender

For ext. tubing Ø

6.00 mm

HT Laboratory Screw Joint GL 18 Ø 10,0 mm, SW 22, PPS

Manufacturer P/N

D 629-74

Part Number

6.900 009

Manufacturer

Bohlender

For ext. tubing Ø

10.00 mm

HT Laboratory Screw Joint GL 18 Ø 6,35 mm, SW 22, PPS

Manufacturer P/N

D 629-56

Part Number

7.603 090

Manufacturer

Bohlender

For ext. tubing Ø

6.35 mm
