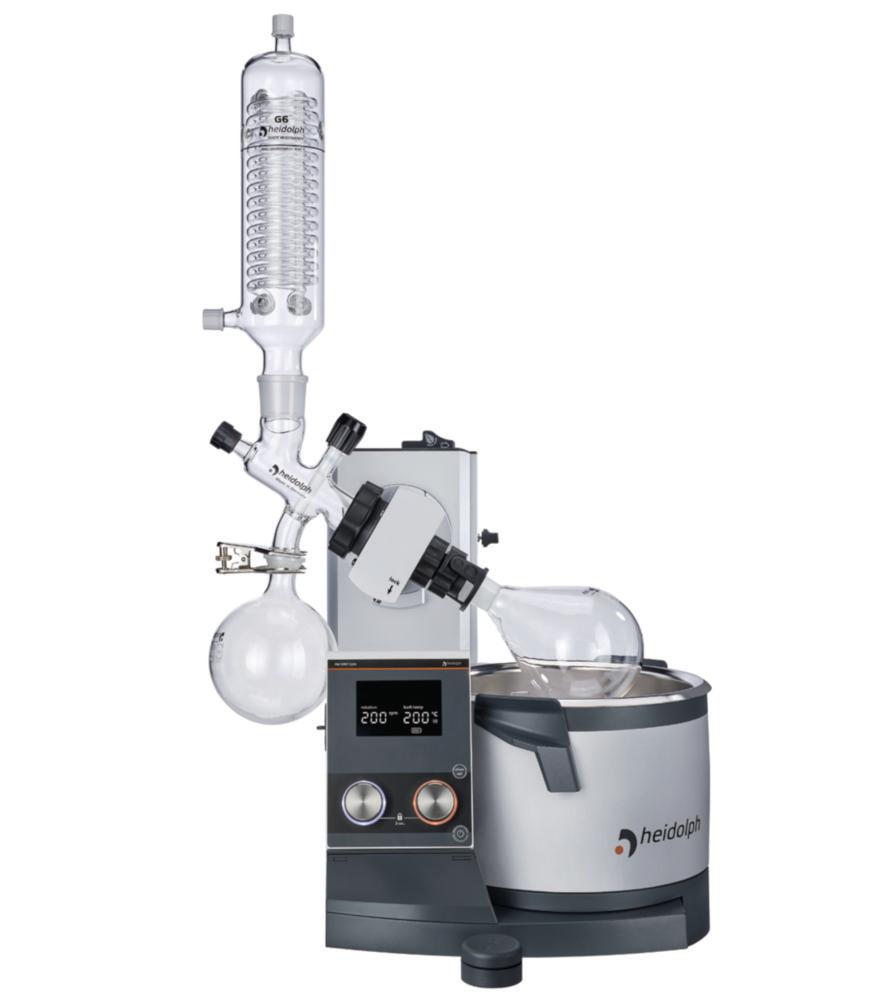

Heidolph Rotary Evaporator Hei-VAP Core HL G6 Hand Lift (EU-Plug)

The Heidolph Rotary Evaporator Hei-VAP Core HL G6 with hand lift is a highly efficient and reliable solution for solvent distillation in laboratories. It features a G6 vertical glassware configuration, offering excellent performance for large-volume evaporation tasks. The manual hand lift provides easy control and adjustment for precise operation.

Key Features:

• Brand: Heidolph
• Model: Hei-VAP Core HL G6
• Lift Mechanism: Manual hand lift for precise adjustment
• Glassware Configuration: G6 vertical condenser for high-volume evaporation
• Plug Type: EU plug
• Display: Clear digital display for monitoring current values with a separate button for set values
• Controls: Two separate knobs for rotation speed and heating temperature with LED ring light system for activity indication
• Safety: Activated lock feature prevents inadvertent adjustments; residual heat indicator when >50 °C
• Standby Function: (Motor lift models only) Stops all functions and lifts flask out of the heating bath
• Ergonomics: Heating bath handles are ergonomically shaped for secure handling
• Adjustability: Immersion depth up to 155 mm; tilt angle adjustable from 20° to 80°
• Sealing: Grease-free operation enabled by innovative sealing technology
• Ventilation Cap: PTFE inlet, free of ground joints; optionally available with replenishment valve
• Optional Accessories: Cable extension; detachable control panel for use outside closed fume hoods

Scope of Supply:

• Flask clamp Easy-Clip
• Vapour tube
• Ventilation cap
• Heating bath
• 1-l receiving flask
• 1-l evaporating flask
• Supplied condenser as indicated

The Heidolph Hei-VAP Core HL G6 rotary evaporator is perfect for laboratories requiring efficient, high-volume solvent removal with user-friendly operation and dependable performance.
