Representative Image

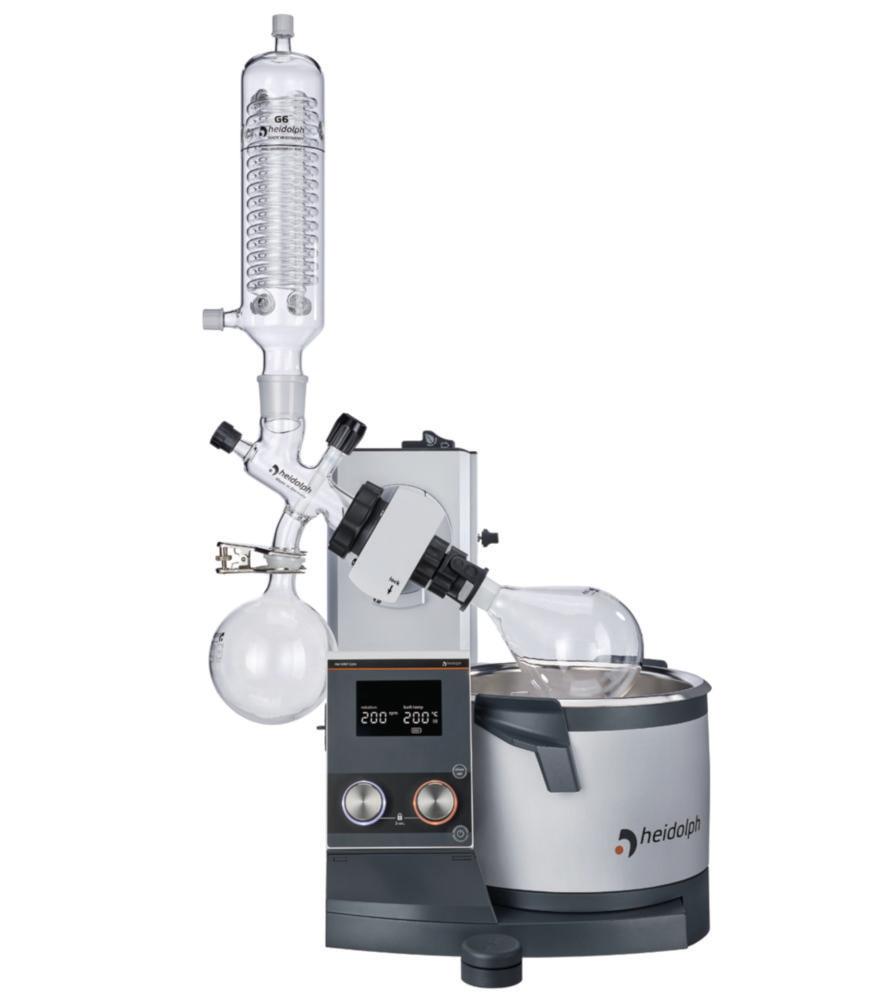

Heidolph Rotary Evaporator Hei-VAP Core HL G6B Hand Lift (EU-Plug)

Brand:Heidolph

Glassware

Plug type

Type

Specifications

Compare models
HS Code #
84194000
Condenser
Vertical
Cooling surface
1400 cm²
Glassware
Coated
Lift
Manual
Max. speed
280 1/min
Max. temperature
210 °C
Max. voltage
230 V
Max. volume bath
4.5 l
Min. speed
10 1/min
Min. temperature
RT

$12,018.66

Inc. GST

Available soon

Product description

The Heidolph Rotary Evaporator Hei-VAP Core HL G6B Hand Lift (EU-Plug) offers reliable and efficient solvent evaporation for laboratory applications. With a manual hand lift and EU-Plug compatibility, this model is perfect for distillation, concentration, and solvent recovery. Its robust design and easy-to-use manual lift ensure precise height adjustments, making it a great choice for laboratories requiring dependable evaporation equipment.

Key Features:

  • Brand: Heidolph
  • Model: Hei-VAP Core HL G6B with hand lift (EU-Plug)
  • Application: Ideal for solvent evaporation, distillation, and concentration
  • Lift Mechanism: Manual hand lift for precise height control
  • Compatibility: EU-Plug for European electrical systems
  • Display: Clear digital display for monitoring current values with a separate button to show set values
  • Controls: Two dedicated knobs for rotation speed and heating temperature, with LED ring lights for status indication
  • Safety: Lock function prevents unintended changes; residual heat warning activates above 50 °C
  • Standby Mode: (Motor lift models only) Automatically halts functions and raises the evaporating flask
  • Design: Ergonomically optimized heating bath handles for a secure grip and comfortable handling
  • Adjustability: Immersion depth up to 155 mm; tilt angle of evaporating flask adjustable from 20° to 80°
  • Sealing: Grease-free sealing system ensures clean, maintenance-friendly operation
  • Ventilation Cap: PTFE inlet and ground joint-free design; compatible with optional replenishment valve
  • Optional Accessories: Cable extension and detachable operating panel for remote control, e.g. in fume hoods

Scope of Supply:

  • Flask clamp Easy-Clip
  • Vapour tube
  • Ventilation cap
  • Heating bath
  • 1-l receiving flask
  • 1-l evaporating flask
  • Supplied condenser as indicated

This Heidolph Rotary Evaporator provides a reliable, efficient, and high-quality solution for manual solvent evaporation, offering precision, safety, and long-term performance in demanding lab environments.

Downloads

Accessories

Heating bath liquid

ProductCapacityMax. temperatureMfr#Part#AvailabilityPrice
5 l+220 °C569-00600-004.652 675$2,955.50
20 l+90 °C569-00610-009.812 665$2,422.16

Evaporator flasks for Rotary Evaporators Hei-VAP Series

ProductNominal capacityUNSPSCMfr#Part#AvailabilityPrice
250 ml41104800514-72000-007.047 221$200.22
500 ml41104800514-73000-007.047 222$219.71
100 ml41104800514-71000-007.047 220$166.56
50 ml41104800514-70000-006.206 660$294.13
1000 ml41104800514-74000-007.047 172$262.24

Compare similar models

Rotary Evaporator Hei-VAP Core HL G6B hand lift (EU-Plug)

Manufacturer P/N

571-01610-00

Part Number

4.666 094

Manufacturer

Heidolph

Glassware

Coated

Rotary Evaporator Hei-VAP Core HL G6 hand lift (EU-Plug)

Manufacturer P/N

571-01600-00

Part Number

4.666 089

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core HL G6B-UK hand lift (UK-Plug)

Manufacturer P/N

571-01610-03

Part Number

4.666 116

Manufacturer

Heidolph

Glassware

Coated

Rotary Evaporator Hei-VAP Core HL G6B-CH hand lift (CH-Plug)

Manufacturer P/N

571-01610-04

Part Number

4.666 136

Manufacturer

Heidolph

Glassware

Coated

Rotary Evaporator Hei-VAP Core HL G6-CH hand lift (CH-Plug)

Manufacturer P/N

571-01600-04

Part Number

4.666 131

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core HL G6-UK hand lift (UK-Plug)

Manufacturer P/N

571-01600-03

Part Number

4.666 111

Manufacturer

Heidolph

Glassware

Without coating

Frequently asked questions

It offers reliable and efficient solvent evaporation for laboratory applications. With a manual hand lift and EU-Plug compatibility, this model is perfect for distillation, concentration, and solvent recovery. Its robust design and easy-to-use manual lift ensure precise height adjustments, making it a great choice for laboratories requiring dependable evaporation equipment.
