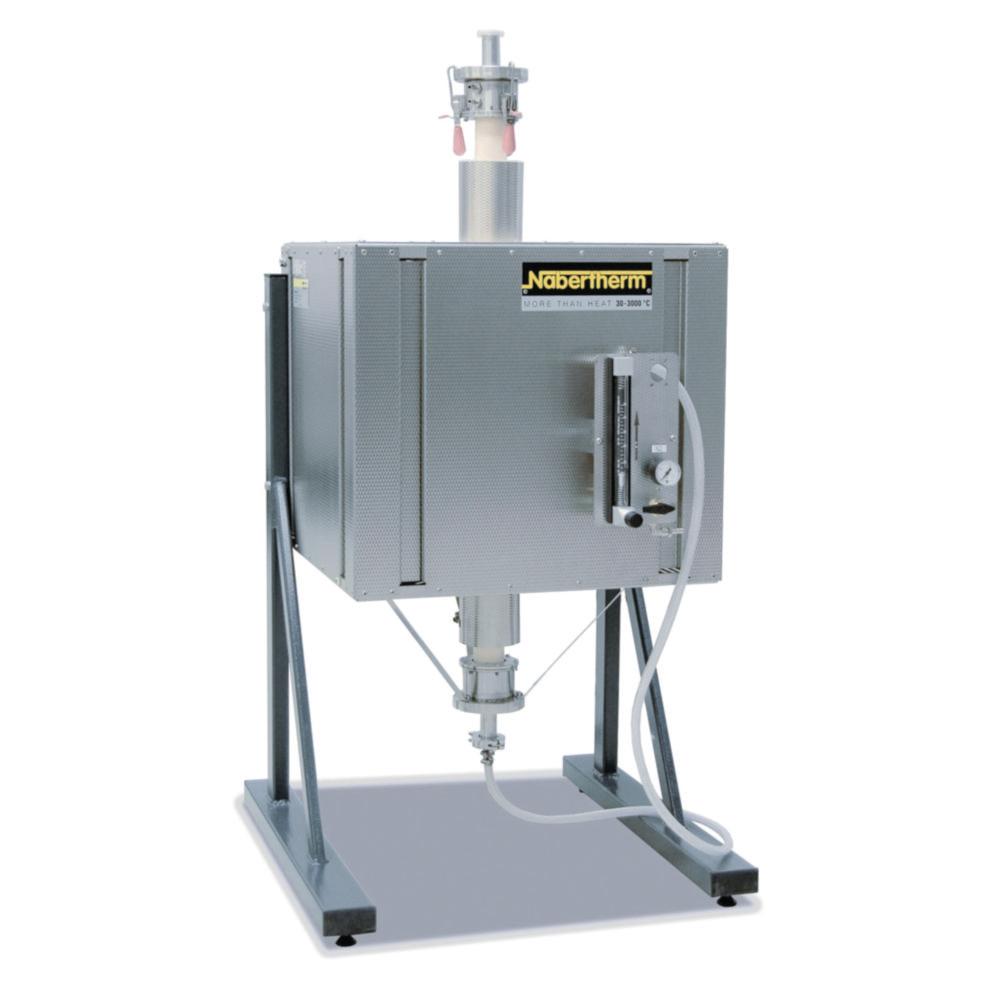

Representative image only

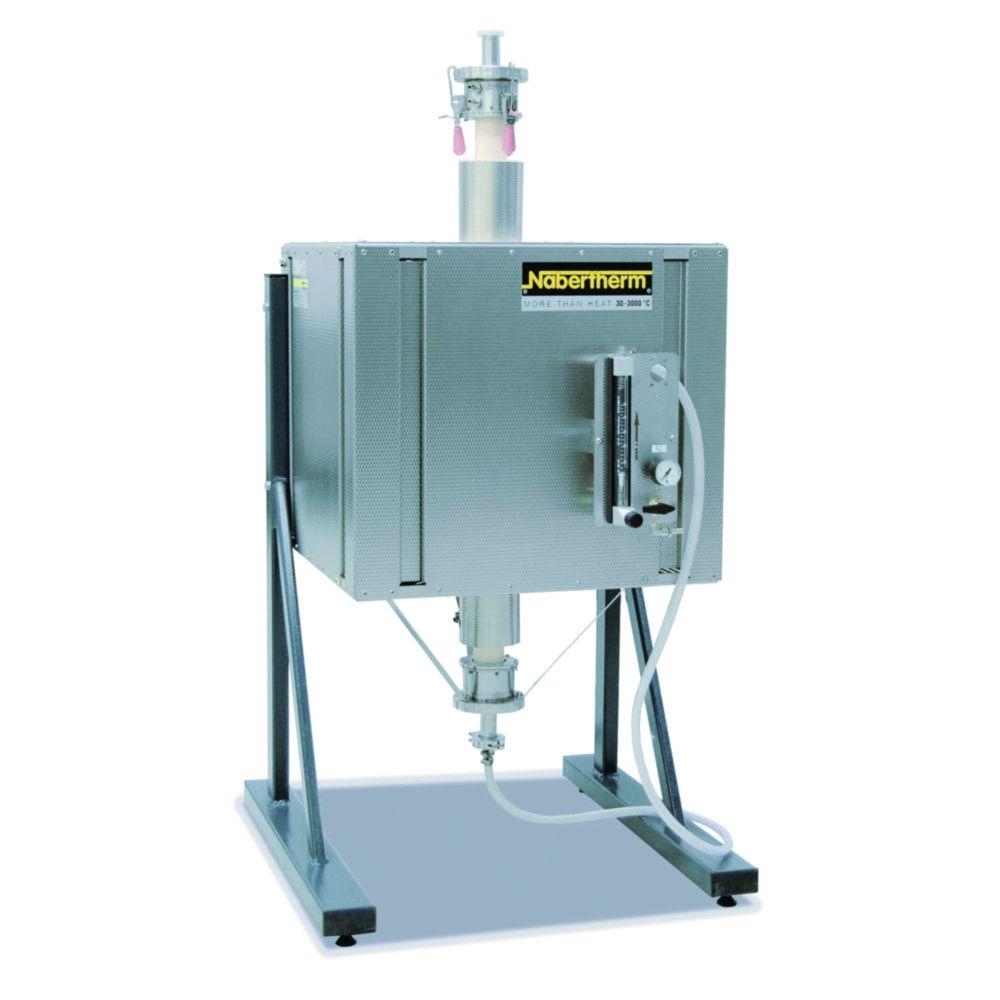

Nabertherm High-Temperature Tube Furnace RHTH 50/150/16/P570, Max 1600°C, Includes Working Tube (C799) and 2 Fibre Plugs (40x380 mm Ø x L)
Sold by: John Morris Scientific Pty Ltd
Available Soon
Part #: 9.764 560Manufacturer #: RH152V62AN
Estimated shipping time:Contact us via live chat or via contact us page
Product overview
The Nabertherm High-Temperature Tube Furnace RHTH 50/150/16/P570 is a state-of-the-art furnace designed for high-temperature processes up to 1600°C. This furnace is ideal for laboratory applications such as sintering, heat treatment, and materials testing. It includes a high-quality working tube (C799) and two fibre plugs (40x380 mm Ø x L) to ensure efficient and precise heating. The furnace is equipped with advanced controls for accurate temperature regulation and reliable performance.
Key Features:
- Brand: Nabertherm
- Model: RHTH 50/150/16/P570
- Maximum Temperature: 1600°C for high-temperature applications
- Includes: Working tube (C799) and two fibre plugs (40x380 mm Ø x L)
- Applications: Ideal for sintering, heat treatment, and materials testing
- Durability: Designed with high-quality materials for long-lasting performance
- Efficiency: Equipped with advanced temperature control for precise heating
The Nabertherm High-Temperature Tube Furnace RHTH 50/150/16/P570 is the perfect choice for professionals seeking reliable, high-performance heating solutions for a wide range of applications.
Product Specifications
- HS Code #85141980
- Depth480 mm
- Dimensions (WxDxH)470 x 480 x 640 mm
- Power supply frequency50/60 Hz
- Height640 mm
- Length tube380 mm
- Length tube heated150 mm
- Max. ext. tube Ø50 mm
- Max. temperature1600 °C
- Max. voltage480 V
- Min. voltage380 V
- Power supply380 ... 480 V, 50/60 Hz
- Rated capacity5400 W
- TypeRHTH 50/150/16/P570
- Type of auxiliary energyMains connection
- UNSPSC40101805
- Weight70 kg
- Width470 mm
Downloads
- Nabertherm High-Temperature Tube Furnaces Catalogue ExcerptDownload
