Representative Image

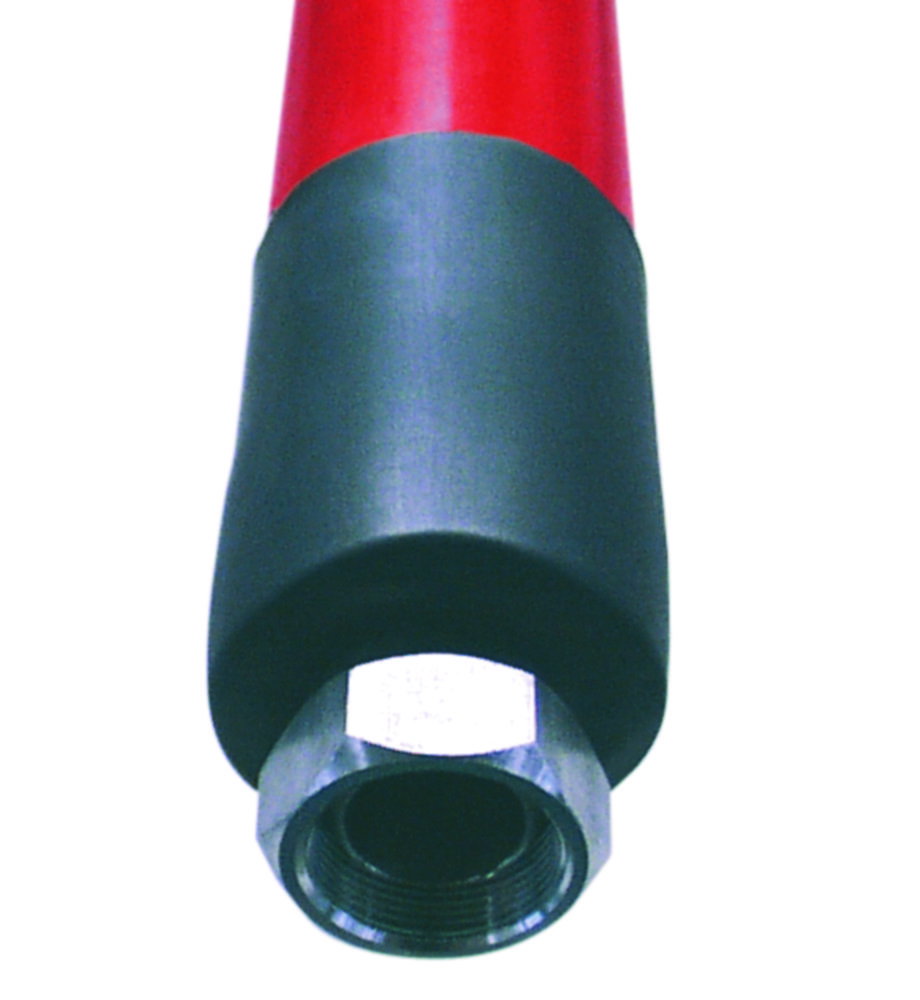

Peter Huber Hose Connection Tubing, Metal NW 12 M24x1.5, 100 cm, 350°C Max. Temp.

Connection size

Length

Max. temp. resistance

Min. temp. resistance

Temperature resistance

Specifications

Compare models
Connection size
M24 x 1,5
Length
100 cm
Material
Metal
Max. temp. resistance
350 °C
Min. temp. resistance
-100 °C
Temperature resistance
-100 ... 350 °C
UNSPSC
41105108

$1,337.77

Inc. GST

Available soon

Product description

The Peter Huber 9274 is a premium, ultra-high-temperature insulated metal hose designed for the most rigorous laboratory and pilot plant thermoregulation requirements. Featuring a nominal width of NW12 and robust M24x1.5 threaded connections, this flexible tubing is engineered to handle extreme thermal environments, supporting an expansive working temperature range from -100°C up to 350°C. This exceptional range makes it an essential accessory for high-temperature reactors, autoclaves, and distillation units where standard hoses would fail. At 100cm (1 meter) in length, it provides a compact, high-efficiency connection that minimizes "dead volume" and heat loss between the circulator and the application. The hose is constructed from high-grade 1.4404 stainless steel and features advanced multi-layer thermal insulation protected by a smooth, wipe-clean silicone outer jacket and safety end caps.

Key Features:

  • Brand: Peter Huber
  • Connection Type: NW12 with M24x1.5 threading (Sleeve nut according to DIN 3870)
  • Length: 100 cm (1 meter)
  • Temperature Range: Extreme versatility from -100°C to 350°C
  • Material: High-quality 1.4404 stainless steel for superior chemical and thermal resistance
  • Insulation: Special multi-layer insulation with a smooth white silicone cover to prevent heat loss and protect users
  • Pressure Rating: Maximum operating pressure of 16 bar at 20°C (10 bar at 350°C)
  • Dimensions: 33 mm outside diameter with a minimum bending radius of 120 mm
  • Safety: Flame-resistant construction (UL94-HB) with protective silicone end caps

This insulated metal hose is specifically optimized for high-performance temperature control units where thermal integrity and personnel safety are paramount. The integrated silicone cover ensures a non-porous surface that is easy to clean and resistant to aggressive laboratory chemicals. The M24x1.5 fittings provide a standardized, vibration-resistant, and leak-free connection, commonly found on mid-range Huber Unistat systems, ensuring long-term reliability in demanding research environments.

Compare similar models

Hose connection tubing, metal NW 12 M24x1.5, 100cm, 350°C max.temp.

Manufacturer P/N

9274

Part Number

9.857 218

Manufacturer

Peter Huber

Connection size

M24 x 1,5

Hose connection tubing, metal NW 12 M24x1.5, 200cm, 400°C max.temp.

Manufacturer P/N

6786

Part Number

9.857 048

Manufacturer

Peter Huber

Connection size

M24 x 1,5

Hose connection tubing, metal NW12 M 24x1.5, 100cm, 400°C max.temp.

Manufacturer P/N

6784

Part Number

9.857 046

Manufacturer

Peter Huber

Connection size

M24 x 1,5

Hose connection tubing, metal NW 12 M24x1.5, 200cm, 350°C max.temp.

Manufacturer P/N

9276

Part Number

9.857 219

Manufacturer

Peter Huber

Connection size

M24 x 1,5

Hose connection tubing, metal NW 12 M24x1.5, 150cm, 400°C max.temp.

Manufacturer P/N

6785

Part Number

9.857 047

Manufacturer

Peter Huber

Connection size

M24 x 1,5

Hose connection tubing, metal NW 20 M30x1.5, 100cm, 350°C max.temp.

Manufacturer P/N

6426

Part Number

9.857 125

Manufacturer

Peter Huber

Connection size

M30 x 1,5

Hose connection tubing, metal NW25 M38x1.5, 150cm, 350°C max. temp.

Manufacturer P/N

6656

Part Number

9.857 130

Manufacturer

Peter Huber

Connection size

M38 x 1,5

Hose connection tubing, metal NW 12 M16x1, 150cm, 350°C max. temp.

Manufacturer P/N

6085

Part Number

9.857 122

Manufacturer

Peter Huber

Connection size

M16 x 1

Hose connection tubing, metal NW 12 M16x1, 200cm, 350°C max.temp.

Manufacturer P/N

6136

Part Number

9.857 045

Manufacturer

Peter Huber

Connection size

M16 x 1

Hose connection tubing, metal NW20 M30x1.5, 150cm, 350°C max temp.

Manufacturer P/N

6386

Part Number

9.857 126

Manufacturer

Peter Huber

Connection size

M30 x 1,5

Hose connection tubing, metal NW 12 M24x1.5, 300cm, 400°C max.temp.

Manufacturer P/N

6787

Part Number

9.857 049

Manufacturer

Peter Huber

Connection size

M24 x 1,5

Hose connection tubing, metal NW 12 M16x1, 100cm, 350°C max.temp.

Manufacturer P/N

6084

Part Number

9.857 121

Manufacturer

Peter Huber

Connection size

M16 x 1

Hose connection tubing, metal NW 12 M16x1, 200cm, 200°C max.temp.

Manufacturer P/N

9610

Part Number

9.857 216

Manufacturer

Peter Huber

Connection size

M16 x 1

Hose connection tubing, metal NW 12 M16x1, 100cm, 200°C max.temp.

Manufacturer P/N

9608

Part Number

9.857 214

Manufacturer

Peter Huber

Connection size

M16 x 1

Hose connection tubing, metal NW20 M38x1.5, 100cm, 350°C max. temp.

Manufacturer P/N

6655

Part Number

9.857 129

Manufacturer

Peter Huber

Connection size

M38 x 1,5

Hose connection tubing, metal NW20 M30x1.5, 200cm, 350°C max. temp.

Manufacturer P/N

6427

Part Number

9.857 127

Manufacturer

Peter Huber

Connection size

M30 x 1,5

Hose connection tubing, metal NW 12 M16x1, 150cm, 200°C max.temp.

Manufacturer P/N

9609

Part Number

9.857 215

Manufacturer

Peter Huber

Connection size

M16 x 1

Hose connection tubing, metal NW 12 M24x1.5, 150cm, 350°C max.temp.

Manufacturer P/N

9275

Part Number

6.229 781

Manufacturer

Peter Huber

Connection size

M24 x 1,5

Hose connection tubing, metal NW 12 M24x1.5, 300cm, 350°C max.temp.

Manufacturer P/N

9277

Part Number

9.857 220

Manufacturer

Peter Huber

Connection size

M24 x 1,5

Hose connection tubing, metal NW 12 M16x1, 300cm, 350°C max.temp.

Manufacturer P/N

6255

Part Number

9.857 124

Manufacturer

Peter Huber

Connection size

M16 x 1

Hose connection tubing, metal NW 12 M16x1, 300cm, 200°C max.temp.

Manufacturer P/N

9611

Part Number

9.857 217

Manufacturer

Peter Huber

Connection size

M16 x 1

Hose connection tubing, metal NW25 M38x1.5, 300cm, 350°C max. temp.

Manufacturer P/N

6658

Part Number

9.857 132

Manufacturer

Peter Huber

Connection size

M38 x 1,5

Hose connection tubing, metal NW20 M30x1.5, 300cm, 350°C max. temp.

Manufacturer P/N

6428

Part Number

9.857 128

Manufacturer

Peter Huber

Connection size

M30 x 1,5

Hose connection tubing, metal NW25 M38x1.5, 200cm, 350°C max. temp.

Manufacturer P/N

6657

Part Number

9.857 131

Manufacturer

Peter Huber

Connection size

M38 x 1,5

More items to explore

Hoses, plastic

ProductTemperature resistanceMaterialMfr#Part#AvailabilityPrice
-60 ... 260 °CPlastic93257.900 874$1,337.77
-60 ... 260 °CPlastic93266.254 865$1,646.08
-60 ... 260 °CPlastic96126.261 514$1,623.04
-60 ... 260 °CPlastic96136.258 999$1,954.38
-60 ... 260 °CPlastic96147.671 774$2,260.92
-60 ... 260 °CPlastic96156.254 719$2,936.01
-60 ... 260 °CPlastic96164.675 343$1,929.58
-60 ... 260 °CPlastic96174.675 344$2,321.16
-60 ... 260 °CPlastic96186.269 871$2,652.50
-60 ... 260 °CPlastic96194.675 345$3,363.03
