Representative Image

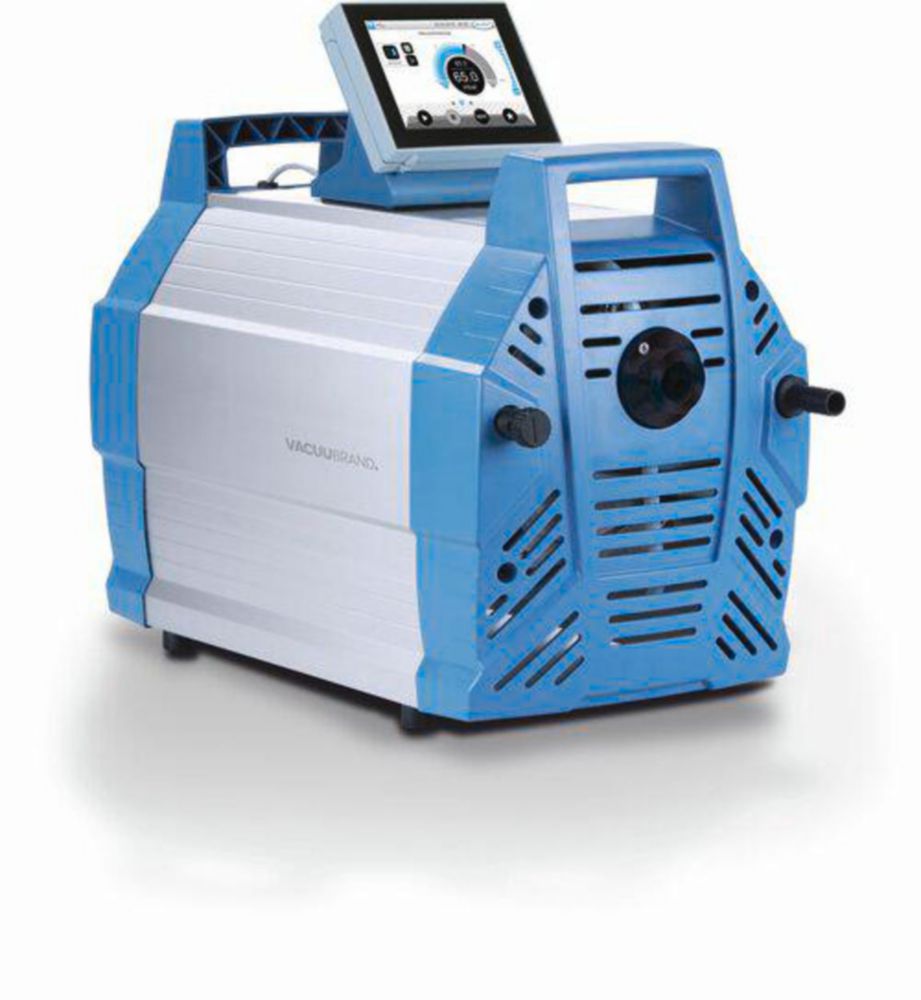

VACUUBRAND Chemical Diaphragm Pump MD 12C NT, VARIO® Select 100 to 120 V / 50 to 60 Hz, US Plug

Plug type

Specifications

Compare models
Depth
533 mm
Dimensions (WxDxH)
260 x 533 x 450 mm
Flow rate
14.3 m³/h
Height
450 mm
No. of stages
3
Plug type
US
Type
MD 12C NT VARIO select
Ultimate vacuum
1.5 mbar
Ultimate vacuum with gas ballast
3 mbar
UNSPSC
40151502

Alternative in-stock items

$34,991.62

Inc. GST

Available soon

Product description

The VACUUBRAND Chemical Diaphragm Pump MD 12C NT VARIO® select 100-120 V / 50-60 Hz, US Plug is a diaphragm vacuum pump from VACUUBRAND designed for oil-free evacuation and pumping of gases or vapours. The VARIO ® design provides vacuum control by precise and continuous adaption of the chemistry diaphragm pumps motor speed, and includes the vacuum pump, as well as the VACUU·SELECT controller. Its documented configuration includes electrical supply: 100-120 V, 50-60 Hz, connection: US Plug, and diaphragm construction: Long-life diaphragm with PTFE sandwich construction and unstressed diaphragm support.

Key Features:

  • Brand: VACUUBRAND
  • Model: MD 12C NT
  • Product Type: Diaphragm Vacuum Pump
  • Electrical Supply: 100-120 V, 50-60 Hz
  • Connection: US Plug
  • Pumping Performance: Improved performance, increased pumping speed and lower ultimate vacuum extends applications in both the laboratory and in industrial applications
  • Diaphragm Construction: Long-life diaphragm with PTFE sandwich construction and unstressed diaphragm support
  • Maintenance: Easy service/exchange of diaphragm or valves due to novel integrated valve head assembly. Easy dismantling, cleaning and reassembly without requiring readjustment
  • Noise and Vibration: Very quiet and ultra low vibration due to compact drive with patented motor control system. Ideal as a built-in component for sensitive equipment in both the laboratory and in industry
  • Vapour Tolerance: Superior vapour tolerance due to integral tubing connections and gas ballast valve for continuous purge
  • Surface Design: Easy to clean due to smooth exterior surfaces
  • Vacuum Control: The VARIO ® design provides vacuum control by precise and continuous adaption of the chemistry diaphragm pumps motor speed, and includes the vacuum pump, as well as the VACUU·SELECT controller

The VACUUBRAND Chemical Diaphragm Pump MD 12C NT VARIO® select 100-120 V / 50-60 Hz, US Plug supports oil-free evacuation and pumping of gases or vapours where the stated configuration is required. Confirm process compatibility, wetted materials, electrical supply, connections, and included components before ordering.



Frequently Asked Questions

1. What is the VACUUBRAND Chemical Diaphragm Pump MD 12C NT VARIO® select 100-120 V / 50-60 Hz, US Plug used for?

It is a diaphragm vacuum pump from VACUUBRAND designed for oil-free evacuation and pumping of gases or vapours. The VARIO ® design provides vacuum control by precise and continuous adaption of the chemistry diaphragm pumps motor speed, and includes the vacuum pump, as well as the VACUU·SELECT controller.

2. What electrical supply does this product have?

It has an electrical supply of 100-120 V, 50-60 Hz.

3. What connection and pumping performance does this product offer?

It offers US Plug, improved performance, increased pumping speed and lower ultimate vacuum extends applications in both the laboratory and in industrial applications, long-life diaphragm with PTFE sandwich construction and unstressed diaphragm support and easy service/exchange of diaphragm or valves due to novel integrated valve head assembly. Easy dismantling, cleaning and reassembly without requiring readjustment.

4. How does this product compare with other select products?

The VACUUBRAND model is a strong choice for its intended use, offering an electrical supply of 100-120 V, 50-60 Hz. Other brands offer select products with varying electrical supply, connection, pumping performance and diaphragm construction, but this model is built for its intended use.

Accessories

Sealing kit NT for chemistry diaphragm pumps NT

ProductForUNSPSCMfr#Part#AvailabilityPrice
MZ 2C NT40151502206968696.241 476$621.93
MD 4C NT40151502206968706.239 489$1,186.27
ME 4 NT, MZ 2 NT40151502206968609.880 902$361.64
ME 4C NT40151502206968649.880 906$361.64
MZ 2D NT40151502206968639.880 904$361.64
MV 2 NT / MD 4 NT40151502206968619.880 905$601.20
ME 8 NT40151502206968629.880 903$497.54
ME 8C NT40151502206968679.880 907$702.55

Vacuum tubings, PVC

ProductMaterialExt. ØMfr#Part#AvailabilityPrice
PVC15.9 mm206860604.714 081$177.37
PVC34.9 mm206860634.714 084$467.60
PVC38.1 mm206860654.714 085$543.61
PVC15.9 mm206860614.714 082$207.31
PVC22.3 mm206860624.714 083$274.11

Compare similar models

Chemical diaphragm pump MD 12C NT VARIO® select 100-120 V / 50-60 Hz, US plug

Manufacturer P/N

25743753

Part Number

4.701 146

Manufacturer

VACUUBRAND​

Plug type

US

Chemistry Diaphragm Pump MD 12C NT VARIO select three-stage, 200-230 V / 50-60 Hz, UK mains cable

Manufacturer P/N

25743752

Part Number

4.687 925

Manufacturer

VACUUBRAND​

Plug type

UK

Chemistry Diaphragm Pump MD 12C NT VARIO select three-stage, 200-230 V / 50-60 Hz, CEE mains cable

Manufacturer P/N

25743750

Part Number

4.687 927

Manufacturer

VACUUBRAND​

Plug type

EU

More items to explore

Diaphragm pumps chemistry design, ME 1C

ProductPlug typeTypeMfr#Part#AvailabilityPrice
EUME 1C207211009.880 934In stock$2,748.01
UKME 1C207211029.880 936$2,748.01
CHME 1C207211019.880 935$2,748.01
USME 1C207211039.880 937$2,748.01

Chemistry vacuum system, MD 12C NT AK/EK

ProductPlug typeTypeMfr#Part#AvailabilityPrice
UKMD 12C NT + AK + EK207436029.880 970$33,800.44
CHMD 12C NT + AK + EK207436019.880 969$33,800.44
EUMD 12C NT + AK + EK207436009.880 968$33,800.44
USMD 12C NT + AK + EK207436034.701 126$29,389.64
