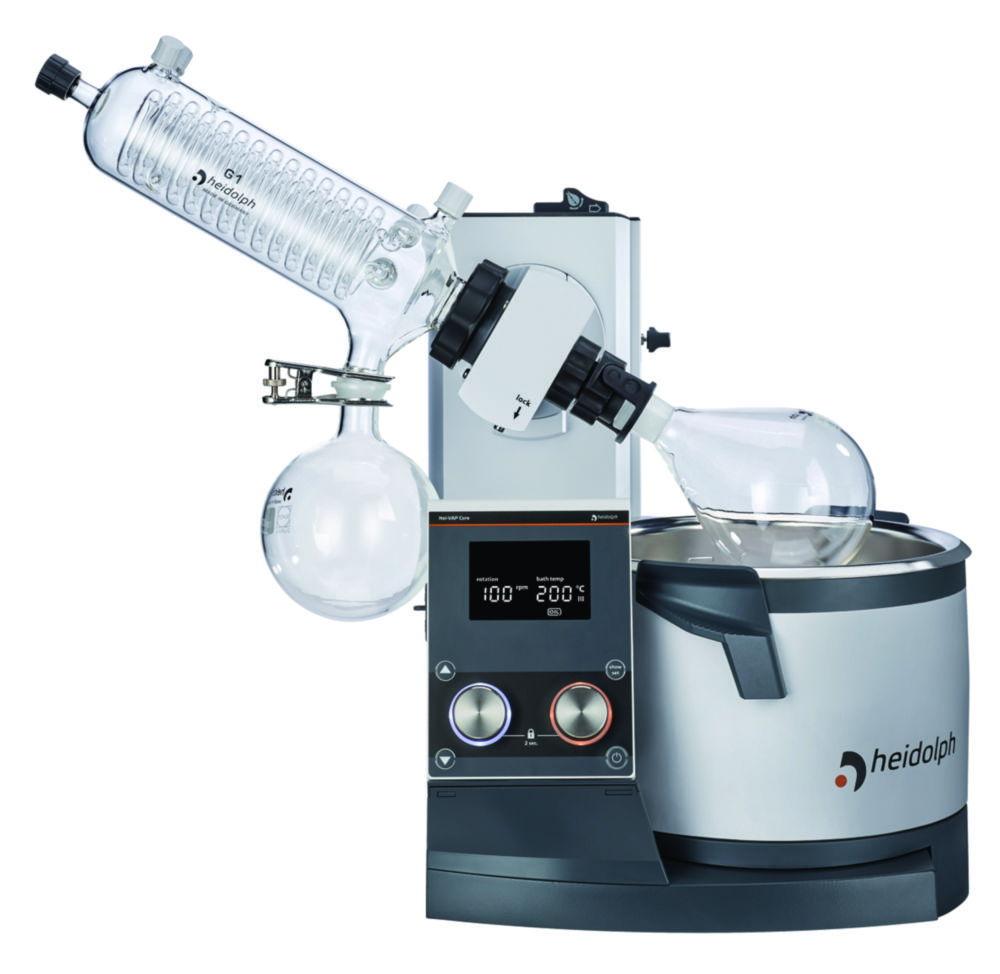

Heidolph Rotary Evaporator Hei-VAP Core ML G1-CH Motor Lift (CH-Plug)

Brand:Heidolph

Glassware

Plug type

Type

Specifications

Compare models
HS Code #
84194000
Condenser
Diagonal
Cooling surface
1400 cm²
Glassware
Without coating
Lift
Electrical
Max. speed
280 1/min
Max. temperature
210 °C
Max. voltage
230 V
Max. volume bath
4.5 l
Min. speed
10 1/min
Min. temperature
RT

$9,095.06

Inc. GST

Available soon

Product description

The Heidolph Rotary Evaporator Hei-VAP Core ML G1-CH Motor Lift (CH-Plug) delivers precise, safe, and user-friendly solvent evaporation for laboratories. Featuring a diagonal G1 glassware configuration and motorized lift, this model ensures effortless height adjustment and reproducible performance. With CH-Plug compatibility for Swiss electrical systems, it’s ideal for distillation, concentration, and solvent recovery tasks that demand control, consistency, and operator safety.

Key Features:

  • Brand: Heidolph
  • Model: Hei-VAP Core ML G1-CH with motor lift (CH-Plug)
  • Lift Mechanism: Motorized lift with standby function to automatically lift flask out of the bath
  • Glassware Configuration: G1 diagonal condenser for efficient condensation
  • Display: Clear digital display showing current values; separate button for viewing set values
  • Controls: Independent knobs for rotation speed and heating temperature, with intuitive LED ring activity indicators
  • Adjustability: Immersion depth up to 155 mm; tilt angle adjustable from 20° to 80°
  • Safety Features: Lock function to prevent accidental changes; residual heat warning above 50 °C; automatic shut-off in error conditions
  • Design & Handling: Ergonomic heating bath handles and grease-free sealing technology ensure user safety and long-term reliability
  • Connectivity: Ventilation cap with PTFE inlet and ground-joint-free design; optional replenishment valve and cable extension for remote control
  • Electrical Compatibility: CH-Plug for use in Swiss-standard power outlets

Scope of Supply:

  • Flask clamp Easy-Clip
  • Vapour tube
  • Ventilation cap
  • Heating bath
  • 1-litre receiving flask
  • 1-litre evaporating flask
  • Supplied condenser as indicated

The Heidolph Hei-VAP Core ML G1-CH Motor Lift is a versatile and efficient rotary evaporator designed for laboratories requiring automated lift functionality and exceptional safety in solvent evaporation processes.

Downloads

Accessories

Heating bath liquid

ProductCapacityMax. temperatureMfr#Part#AvailabilityPrice
5 l+220 °C569-00600-004.652 675$2,955.50
20 l+90 °C569-00610-009.812 665$2,422.16

Evaporator flasks for Rotary Evaporators Hei-VAP Series

ProductNominal capacityUNSPSCMfr#Part#AvailabilityPrice
250 ml41104800514-72000-007.047 221$200.22
500 ml41104800514-73000-007.047 222$219.71
100 ml41104800514-71000-007.047 220$166.56
50 ml41104800514-70000-006.206 660$294.13
1000 ml41104800514-74000-007.047 172$262.24

Compare similar models

Rotary Evaporator Hei-VAP Core ML G1-CH motor lift (CH-Plug)

Manufacturer P/N

572-01100-04

Part Number

4.666 137

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core ML G1-UK motor lift (UK-Plug)

Manufacturer P/N

572-01100-03

Part Number

4.666 117

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core ML G1B motor lift (EU-Plug)

Manufacturer P/N

572-01110-00

Part Number

4.666 100

Manufacturer

Heidolph

Glassware

Coated

Rotary Evaporator Hei-VAP Core ML G1B-CH motor lift (CH-Plug)

Manufacturer P/N

572-01110-04

Part Number

4.666 142

Manufacturer

Heidolph

Glassware

Coated

Rotary Evaporator Hei-VAP Core ML G1 hand lift (EU-Plug)

Manufacturer P/N

572-01100-00

Part Number

4.666 095

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core ML G1B-UK motor lift (UK-Plug)

Manufacturer P/N

572-01110-03

Part Number

4.666 122

Manufacturer

Heidolph

Glassware

Coated

Frequently asked questions

It delivers precise, safe, and user-friendly solvent evaporation for laboratories. Featuring a diagonal G1 glassware configuration and motorized lift, this model ensures effortless height adjustment and reproducible performance. With CH-Plug compatibility for Swiss electrical systems, it’s ideal for distillation, concentration, and solvent recovery tasks that demand control, consistency, and operator safety.
