Representative Image

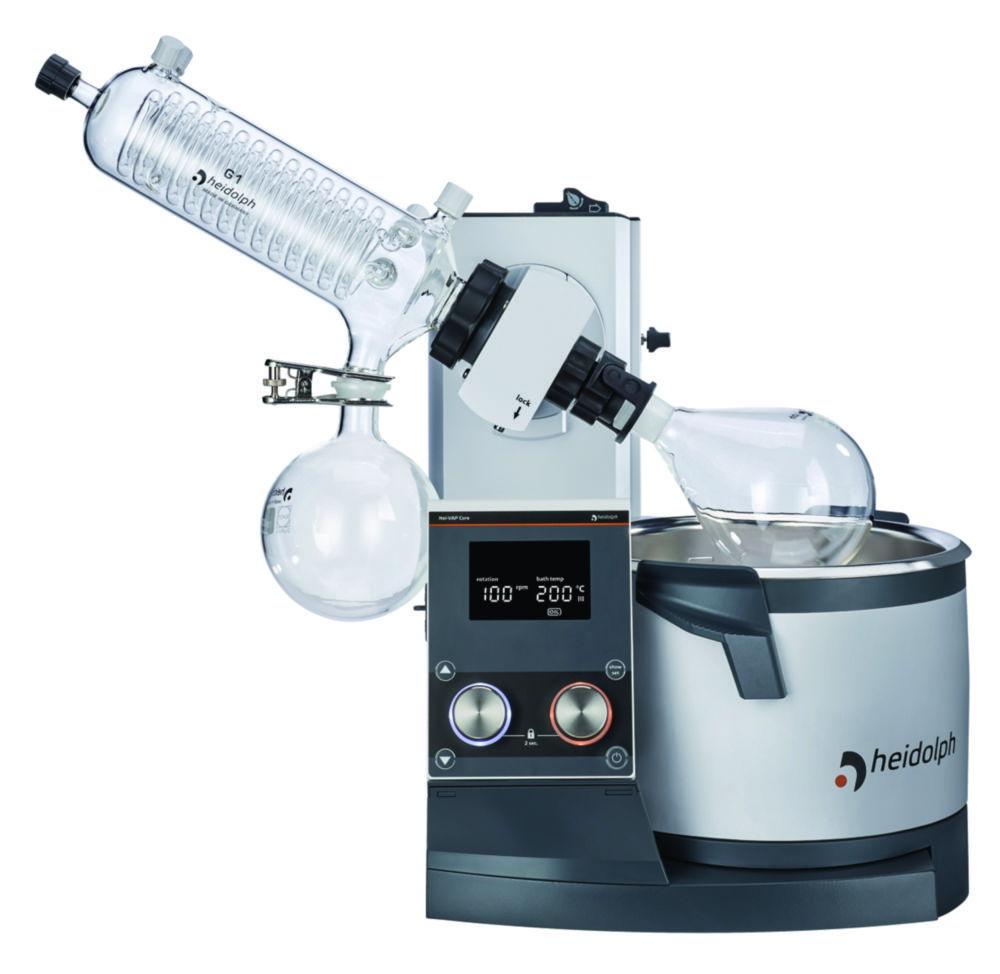

Heidolph Rotary Evaporator Hei-VAP Core ML G1 Hand Lift (EU-Plug)

Brand:Heidolph

Glassware

Plug type

Type

Specifications

Compare models
HS Code #
84194000
Condenser
Diagonal
Cooling surface
1400 cm²
Glassware
Without coating
Lift
Electrical
Max. speed
280 1/min
Max. temperature
210 °C
Max. voltage
230 V
Max. volume bath
4.5 l
Min. speed
10 1/min
Min. temperature
RT

$9,095.06

Inc. GST

Available soon

Product description

The Heidolph Rotary Evaporator Hei-VAP Core ML G1 Hand Lift (EU-Plug) is a dependable and user-friendly solution for solvent evaporation in laboratory environments. Featuring a G1 diagonal condenser, manual hand lift, and EU plug compatibility, this model is ideal for applications such as distillation, concentration, and solvent recovery. Its ergonomic and intuitive design enables precise operation and consistent performance in daily lab routines.

Key Features:

  • Brand: Heidolph
  • Model: Hei-VAP Core ML G1 with hand lift (EU-Plug)
  • Display: Clear digital display showing current values, with a separate button to toggle set values
  • Controls: Two independent knobs for adjusting rotation speed and heating temperature, with LED ring light activity indicators
  • Lift Mechanism: Manual hand lift for precise and controlled vertical movement of the evaporating flask
  • Adjustability: Immersion depth up to 155 mm and tilt angle adjustable from 20° to 80°
  • Safety Features: Lock feature to prevent unintentional setting changes; residual heat warning above 50 °C
  • Design & Handling: Ergonomically optimized handles on the heating bath ensure safe and comfortable use
  • Sealing System: Grease-free operation with advanced sealing technology for reduced maintenance
  • Ventilation Cap: Made of PTFE and free of ground joints; optionally available with replenishment valve
  • Optional: Control panel can be extended with a cable for operation outside fume hoods
  • Electrical Compatibility: EU-Plug for use in European-standard power systems

Scope of Supply:

  • Flask clamp Easy-Clip
  • Vapour tube
  • Ventilation cap
  • Heating bath
  • 1-litre receiving flask
  • 1-litre evaporating flask
  • Supplied condenser as indicated

This Heidolph Rotary Evaporator is an excellent manual solution for laboratories that demand accuracy, durability, and operational safety in their solvent evaporation workflows.

Accessories

Heating bath liquid

ProductCapacityMax. temperatureMfr#Part#AvailabilityPrice
5 l+220 °C569-00600-004.652 675$2,955.50
20 l+90 °C569-00610-009.812 665$2,422.16

Evaporator flasks for Rotary Evaporators Hei-VAP Series

ProductNominal capacityUNSPSCMfr#Part#AvailabilityPrice
250 ml41104800514-72000-007.047 221$200.22
500 ml41104800514-73000-007.047 222$219.71
100 ml41104800514-71000-007.047 220$166.56
50 ml41104800514-70000-006.206 660$294.13
1000 ml41104800514-74000-007.047 172$262.24

Compare similar models

Rotary Evaporator Hei-VAP Core ML G1 hand lift (EU-Plug)

Manufacturer P/N

572-01100-00

Part Number

4.666 095

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core ML G1-UK motor lift (UK-Plug)

Manufacturer P/N

572-01100-03

Part Number

4.666 117

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core ML G1B motor lift (EU-Plug)

Manufacturer P/N

572-01110-00

Part Number

4.666 100

Manufacturer

Heidolph

Glassware

Coated

Rotary Evaporator Hei-VAP Core ML G1-CH motor lift (CH-Plug)

Manufacturer P/N

572-01100-04

Part Number

4.666 137

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core ML G1B-CH motor lift (CH-Plug)

Manufacturer P/N

572-01110-04

Part Number

4.666 142

Manufacturer

Heidolph

Glassware

Coated

Rotary Evaporator Hei-VAP Core ML G1B-UK motor lift (UK-Plug)

Manufacturer P/N

572-01110-03

Part Number

4.666 122

Manufacturer

Heidolph

Glassware

Coated

Frequently asked questions

It is a dependable and user-friendly solution for solvent evaporation in laboratory environments. Featuring a G1 diagonal condenser, manual hand lift, and EU plug compatibility, this model is ideal for applications such as distillation, concentration, and solvent recovery. Its ergonomic and intuitive design enables precise operation and consistent performance in daily lab routines.
