Representative Image

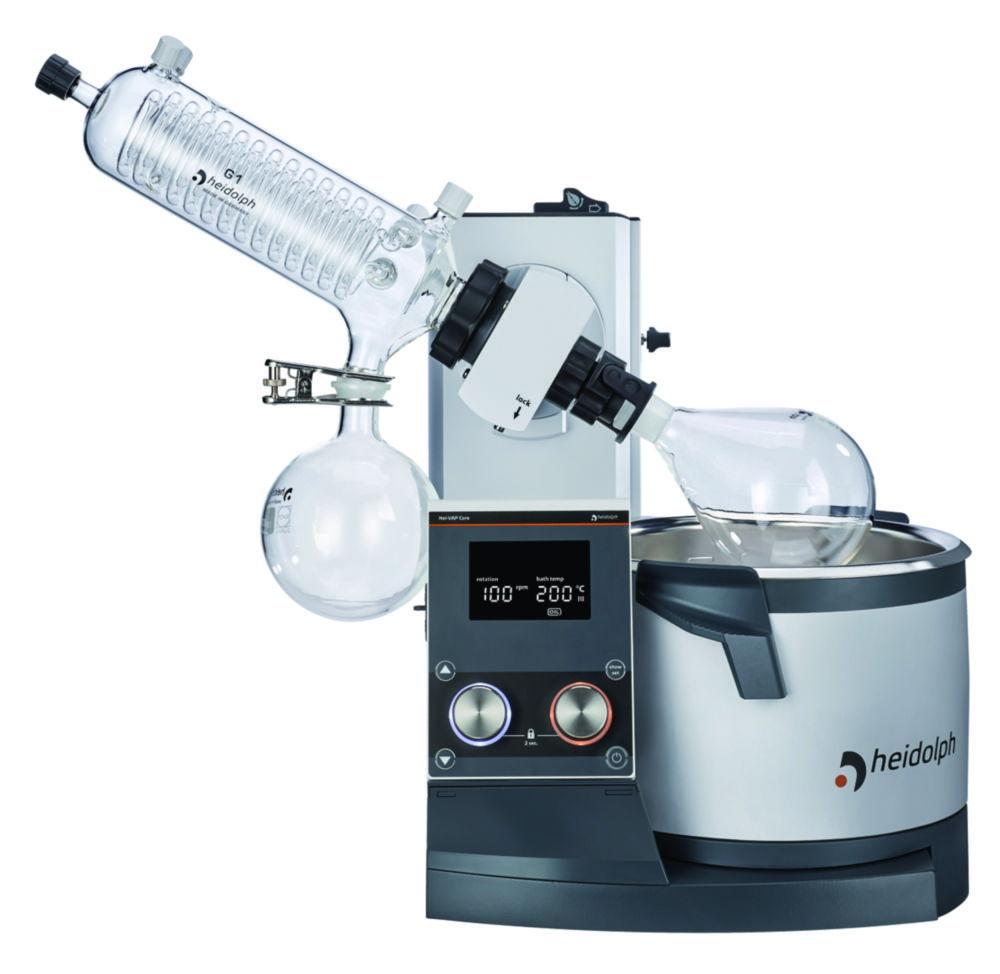

Heidolph Rotary Evaporator Hei-VAP Core ML G1-UK Motor Lift (UK-Plug)

Brand:Heidolph

Glassware

Plug type

Type

Specifications

Compare models
HS Code #
84194000
Condenser
Diagonal
Cooling surface
1400 cm²
Glassware
Without coating
Lift
Electrical
Max. speed
280 1/min
Max. temperature
210 °C
Max. voltage
230 V
Max. volume bath
4.5 l
Min. speed
10 1/min
Min. temperature
RT

$9,095.06

Inc. GST

Available soon

Product description

The Heidolph Rotary Evaporator Hei-VAP Core ML G1-UK with Motor Lift is a robust and efficient solution for solvent evaporation in laboratory environments. Designed with a motorized lift for hands-free operation and precise positioning, this model supports high-throughput distillation, concentration, and solvent recovery applications. Its G1 diagonal condenser setup and UK plug compatibility make it ideal for UK-based labs seeking advanced control and ergonomic features.

Key Features:

  • Brand: Heidolph
  • Model: Hei-VAP Core ML G1-UK with motor lift
  • Lift Mechanism: Motorized lift for automated immersion and retraction
  • Glassware Configuration: G1 diagonal condenser for efficient distillation
  • Display: Clear digital screen showing current and set values
  • Controls: Two separate knobs for rotation speed and heating temperature, each with an intuitive LED ring light activity indicator
  • Safety Features: Activated lock function to avoid unintended changes; residual heat indicator when bath temperature exceeds 50 °C; standby button halts all operations and raises flask (motor models only)
  • Design: Ergonomically designed heating bath handles; grease-free sealing technology ensures smooth, maintenance-free operation
  • Adjustability: Immersion depth adjustable up to 155 mm; evaporating flask tilt angle adjustable between 20° and 80°
  • Connectivity: Ventilation cap with PTFE inlet and no ground joints; optional replenishment valve and detachable operating panel with cable extension for use outside fume hoods
  • Plug Type: UK plug for compatibility with British power standards

Scope of Supply:

  • Flask clamp Easy-Clip
  • Vapour tube
  • Ventilation cap
  • Heating bath
  • 1-litre receiving flask
  • 1-litre evaporating flask
  • Supplied condenser as indicated

The Heidolph Hei-VAP Core ML G1-UK rotary evaporator combines automated lift functionality with advanced safety and ergonomic features, making it an excellent choice for routine and demanding solvent evaporation tasks in UK laboratories.

Accessories

Heating bath liquid

ProductCapacityMax. temperatureMfr#Part#AvailabilityPrice
5 l+220 °C569-00600-004.652 675$2,955.50
20 l+90 °C569-00610-009.812 665$2,422.16

Evaporator flasks for Rotary Evaporators Hei-VAP Series

ProductNominal capacityUNSPSCMfr#Part#AvailabilityPrice
250 ml41104800514-72000-007.047 221$200.22
500 ml41104800514-73000-007.047 222$219.71
100 ml41104800514-71000-007.047 220$166.56
50 ml41104800514-70000-006.206 660$294.13
1000 ml41104800514-74000-007.047 172$262.24

Compare similar models

Rotary Evaporator Hei-VAP Core ML G1-UK motor lift (UK-Plug)

Manufacturer P/N

572-01100-03

Part Number

4.666 117

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core ML G1B motor lift (EU-Plug)

Manufacturer P/N

572-01110-00

Part Number

4.666 100

Manufacturer

Heidolph

Glassware

Coated

Rotary Evaporator Hei-VAP Core ML G1-CH motor lift (CH-Plug)

Manufacturer P/N

572-01100-04

Part Number

4.666 137

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core ML G1B-CH motor lift (CH-Plug)

Manufacturer P/N

572-01110-04

Part Number

4.666 142

Manufacturer

Heidolph

Glassware

Coated

Rotary Evaporator Hei-VAP Core ML G1 hand lift (EU-Plug)

Manufacturer P/N

572-01100-00

Part Number

4.666 095

Manufacturer

Heidolph

Glassware

Without coating

Rotary Evaporator Hei-VAP Core ML G1B-UK motor lift (UK-Plug)

Manufacturer P/N

572-01110-03

Part Number

4.666 122

Manufacturer

Heidolph

Glassware

Coated

Frequently asked questions

It is a robust and efficient solution for solvent evaporation in laboratory environments. Designed with a motorized lift for hands-free operation and precise positioning, this model supports high-throughput distillation, concentration, and solvent recovery applications. Its G1 diagonal condenser setup and UK plug compatibility make it ideal for UK-based labs seeking advanced control and ergonomic features.
