Representative image only

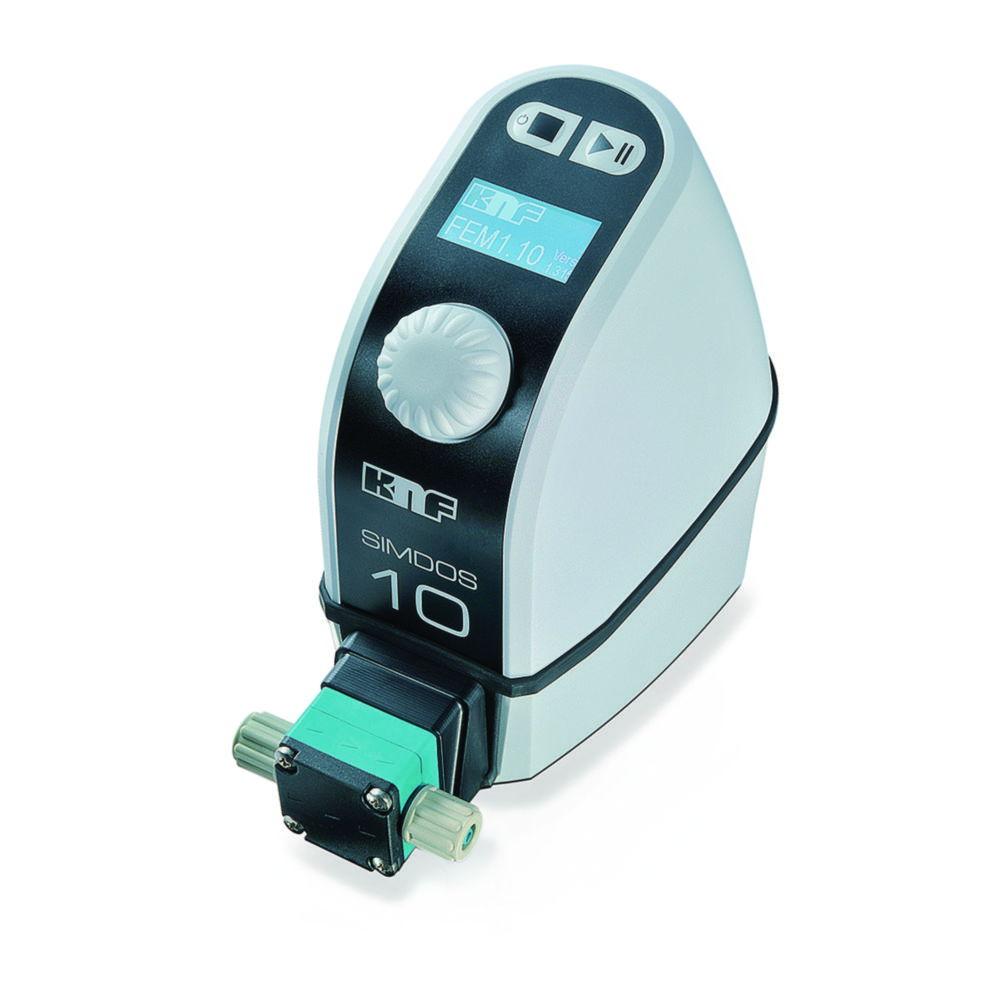

KNF SIMDOS 10 Diaphragm Dosing Pump U FEM 1.10 TT.18S2 US-Plug – 115V/60HZ
Sold by: John Morris Scientific Pty Ltd
Available Soon
Part #: 4.686 740Manufacturer #: U167530/160160
Estimated shipping time:Contact us via live chat or via contact us page
Product overview
The KNF SIMDOS 10 Diaphragm Dosing Pump U FEM 1.10 TT.18S2 with a US plug (115V/60HZ) is designed for accurate and reliable dosing of neutral and aggressive liquids in laboratory environments. Built with chemical-resistant materials, it offers exceptional safety and precision. Its compact design, intuitive controls, and programmable features make it an ideal solution for automated and reproducible dosing tasks.
Key Features:
- Brand: KNF
- Model: SIMDOS 10 U FEM 1.10 TT.18S2
- Voltage: 115V/60HZ with US plug
- Application: Suitable for dosing aggressive, neutral, or corrosive liquids
- Design: Chemical-resistant with programmable settings
- Packaging: Delivered as a single unit
This KNF dosing pump ensures maximum safety, high precision, and efficiency—perfect for demanding laboratory and chemical processing tasks.
Product Specifications
- HS Code #84135040
- Depth150 mm
- Dimensions (WxDxH)93 x 150 x 144 mm
- Dosing volume1 ... 999 ml
- Flow rate1 ... 100 ml/min
- Power supply frequency60 Hz
- Height144 mm
- IP codeIP 65
- Liquid temperature5 ... 80 °C
- Material headPVDF
- Max. dosing volume999 ml
- Max. liquid temperature80 °C
- Max. operating pressure6 bar
- Max. suction height3000 mm
- Max. voltage115 V
- Min. dosing volume1 ml
- Min. liquid temperature5 °C
- Plug typeUS
- Power supply115 V, 60 Hz
- TypeU FEM 1.10 TT.18S2
- Type of auxiliary energyMains connection
- UNSPSC41105105
- Width93 mm
