Representative image only

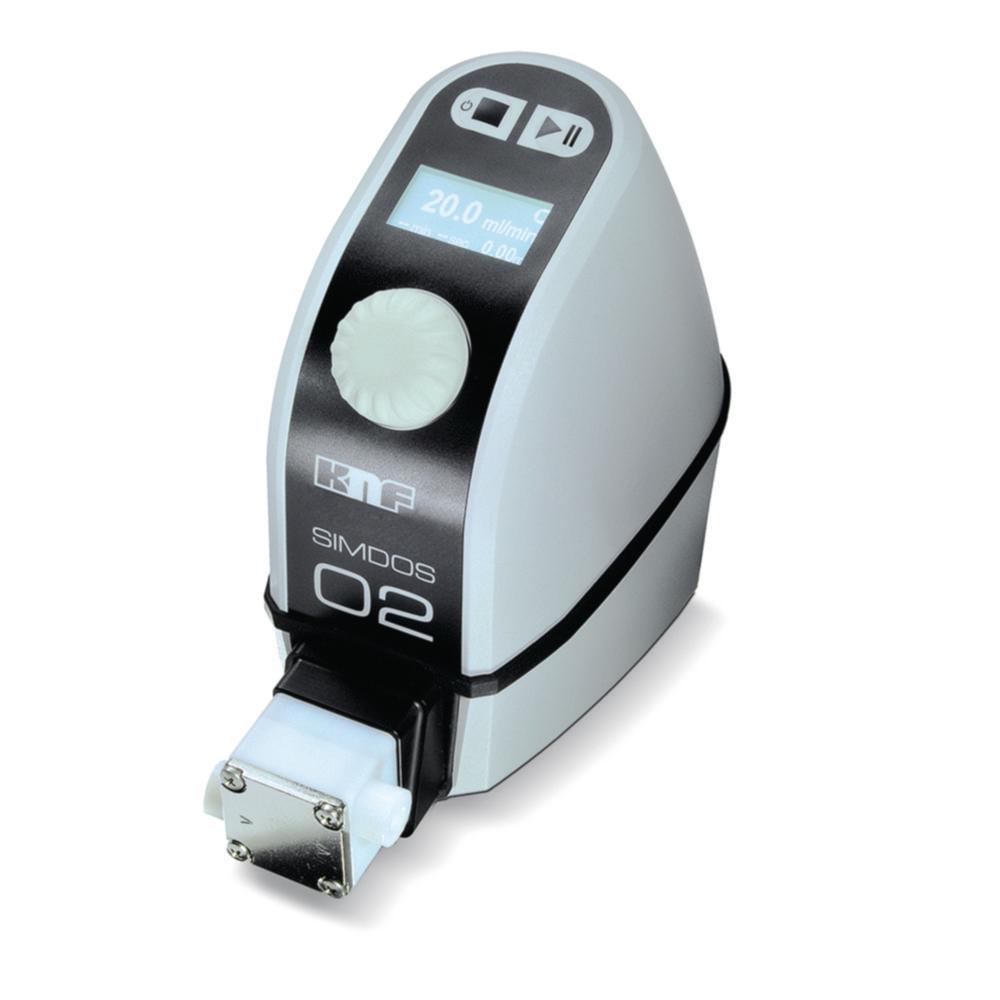

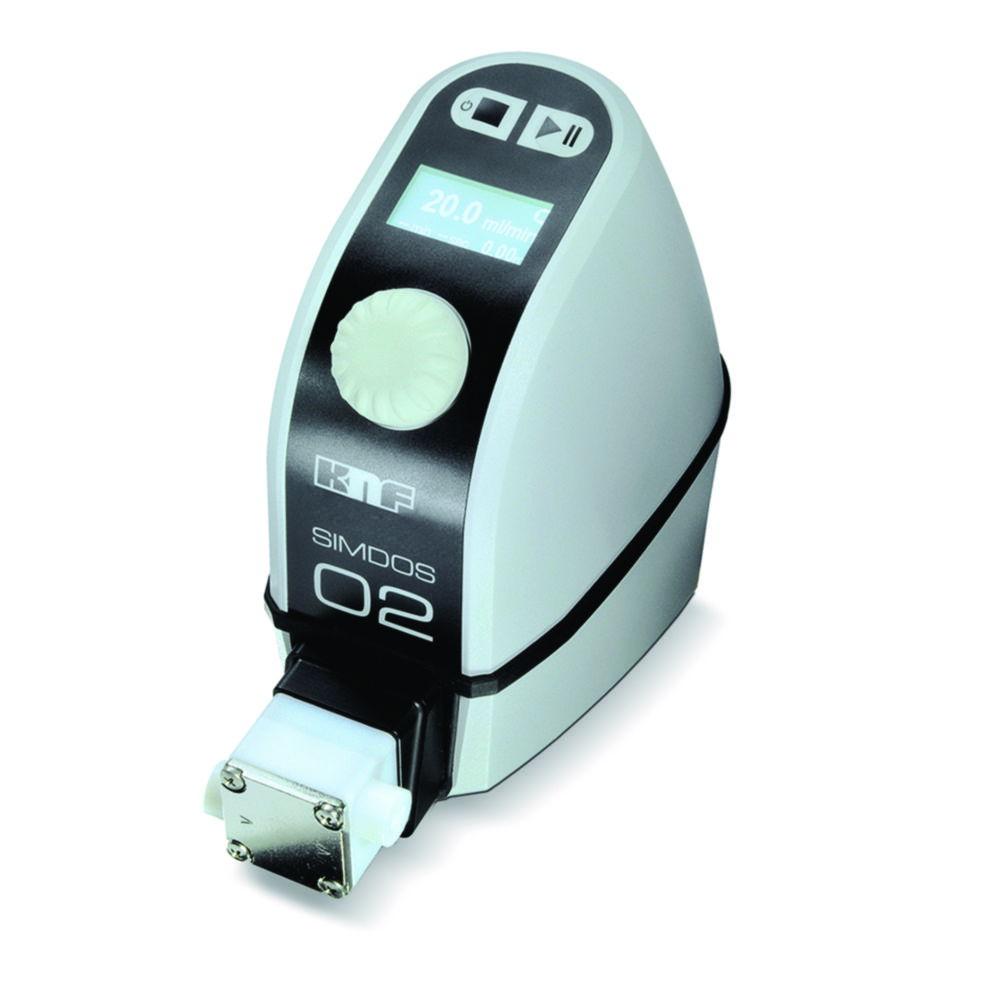

KNF SIMDOS 02 Diaphragm Dosing Pump U FEM 1.02 TT.18S US-Plug - 115V/60HZ
Sold by: John Morris Scientific Pty Ltd
Available Soon
Part #: 4.686 748Manufacturer #: U166072/165467
Estimated shipping time:Contact us via live chat or via contact us page
Product overview
The KNF SIMDOS 02 Diaphragm Dosing Pump U FEM 1.02 TT.18S with US-Plug (115V/60HZ) is designed for precision dosing of liquids in laboratory environments. Engineered with advanced diaphragm pump technology, it ensures accurate and reproducible dosing, even for aggressive chemicals. This compact and user-friendly dosing pump is ideal for a wide range of scientific and industrial applications.
Key Features:
- Brand: KNF
- Model: SIMDOS 02 U FEM 1.02 TT.18S
- Voltage: 115V / 60Hz with US plug
- Technology: Diaphragm dosing pump for high-precision liquid transfer
- Application: Suitable for laboratory and industrial dosing of aggressive or sensitive fluids
- Design: Chemically resistant, compact, and easy to operate
This KNF diaphragm dosing pump provides a reliable and efficient solution for laboratories that require controlled, high-precision dosing operations.
Product Specifications
- HS Code #84135040
- Depth150 mm
- Dimensions (WxDxH)93 x 150 x 144 mm
- Dosing volume0.03 ... 999 ml
- Flow rate0.03 ... 20 ml/min
- Power supply frequency60 Hz
- Height144 mm
- IP codeIP 65
- Liquid temperature5 ... 80 °C
- Material headPVDF
- Max. dosing volume999 ml
- Max. liquid temperature80 °C
- Max. operating pressure6 bar
- Max. suction height2000 mm
- Max. voltage115 V
- Min. dosing volume0.03 ml
- Min. liquid temperature5 °C
- Plug typeUS
- Power supply115 V, 60 Hz
- TypeU FEM 1.02 TT.18S
- Type of auxiliary energyMains connection
- UNSPSC41105105
- Weight0.9 kg
- Width93 mm
