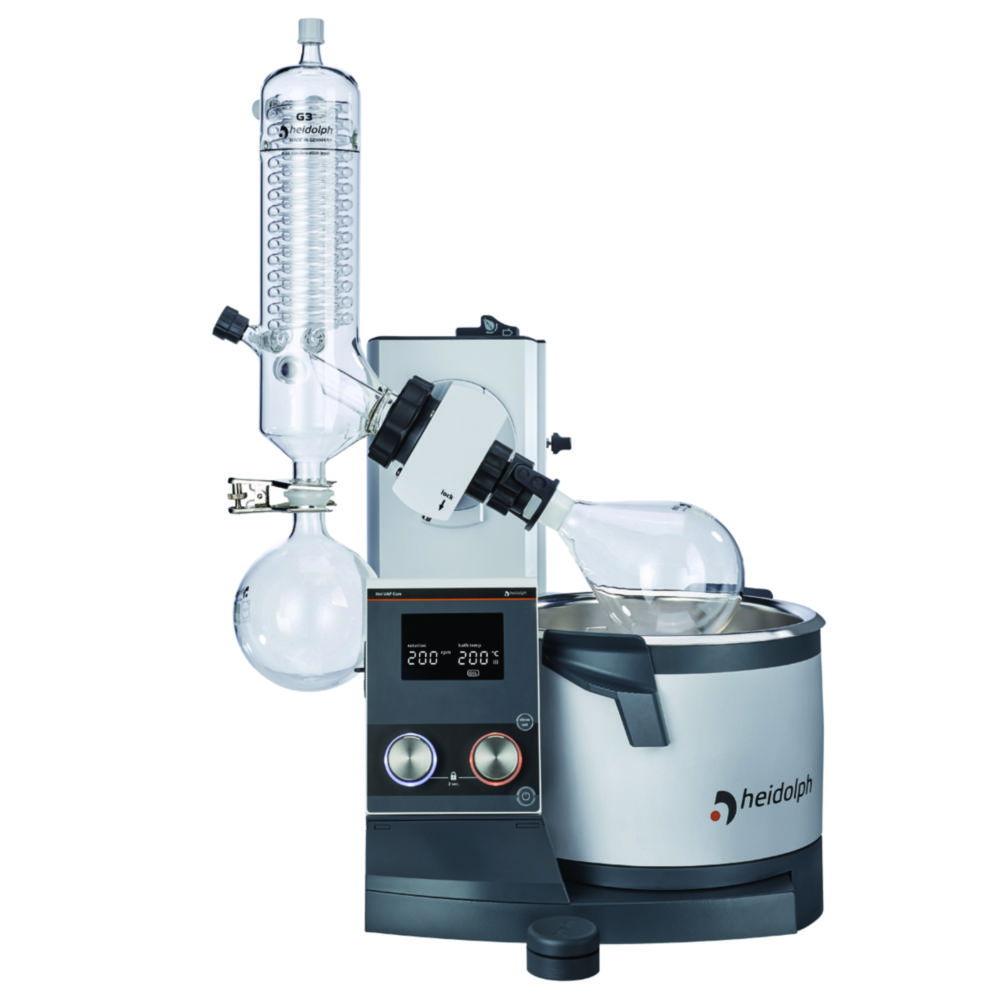

Heidolph Rotary Evaporator Hei-VAP Core HL G3-CH Hand Lift (CH-Plug)

Brand:Heidolph

Cooling surface

Dimensions (WxDxH)

Glassware

Height

Max. voltage

Plug type

Power supply

Type

Specifications

Compare models
HS Code #
84194000
Condenser
Vertical
Cooling surface
1400 cm²
Depth
477 mm
Dimensions (WxDxH)
739 x 477 x 845 mm
Glassware
Without coating
Height
845 mm
Lift
Manual
Max. speed
280 1/min
Max. temperature
210 °C
Max. voltage
230 V

$8,947.99

Inc. GST

Available soon

Product description

The Heidolph Rotary Evaporator Hei-VAP Core HL G3-CH Hand Lift (CH-Plug) is engineered for precise and efficient solvent evaporation in laboratory settings. Featuring intuitive manual operation and robust Heidolph construction, this model is well-suited for distillation, concentration, and solvent recovery. The unit includes a CH-compliant plug and offers superior adjustability and control for routine lab workflows.

Key Features:

  • Brand: Heidolph
  • Model: Hei-VAP Core HL G3-CH with hand lift (CH-Plug)
  • Lift Mechanism: Manual hand lift for precise flask positioning
  • Display: Clear digital display for monitoring current and set values
  • Controls: Two separate knobs for rotation speed and heating temperature with LED ring indicators
  • Safety: Activated lock feature to prevent inadvertent changes; residual heat warning above 50 °C
  • Design: Ergonomic heating bath handles; grease-free sealing technology for low-maintenance operation
  • Adjustability: Immersion depth adjustable up to 155 mm; tilt angle adjustable from 20° to 80°
  • Optional Features: Ventilation cap with PTFE inlet and no ground joints; optional replenishment valve and detachable control panel with cable extension
  • Plug Type: CH plug for Swiss electrical standards

Scope of Supply:

  • Flask clamp Easy-Clip
  • Vapour tube
  • Ventilation cap
  • Heating bath
  • 1-litre receiving flask
  • 1-litre evaporating flask
  • Supplied condenser as indicated

The Hei-VAP Core HL G3-CH combines performance, safety, and ergonomic design—making it an essential tool for Swiss laboratories performing solvent evaporation and distillation with precision and reliability.

Accessories

Heating bath liquid

ProductCapacityMax. temperatureMfr#Part#AvailabilityPrice
5 l+220 °C569-00600-004.652 675$2,955.50
20 l+90 °C569-00610-009.812 665—

Evaporator flasks for Rotary Evaporators Hei-VAP Series

ProductNominal capacityUNSPSCMfr#Part#AvailabilityPrice
250 ml41104800514-72000-007.047 221$200.22
500 ml41104800514-73000-007.047 222$219.71
100 ml41104800514-71000-007.047 220$166.56
50 ml41104800514-70000-006.206 660$294.13
1000 ml41104800514-74000-007.047 172$262.24

Compare similar models

Rotary Evaporator Hei-VAP Core HL G3-CH hand lift (CH-Plug)

Manufacturer P/N

571-01300-04

Part Number

4.666 128

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core HL G3 XL hand lift (EU-Plug)

Manufacturer P/N

571-01305-00

Part Number

4.666 087

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core HL G3B hand lift (EU-Plug)

Manufacturer P/N

571-01310-00

Part Number

4.666 091

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core HL G3B-UK hand lift (UK-Plug)

Manufacturer P/N

571-01310-03

Part Number

4.666 113

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core HL G3B XL hand lift (EU-Plug)

Manufacturer P/N

571-01315-00

Part Number

4.666 092

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core HL G3-UK hand lift (UK-Plug)

Manufacturer P/N

571-01300-03

Part Number

4.666 108

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core HL G3B XL-UK hand lift (UK-Plug)

Manufacturer P/N

571-01315-03

Part Number

4.666 114

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core HL G3B-CH hand lift (CH-Plug)

Manufacturer P/N

571-01310-04

Part Number

4.666 133

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core HL G3 XL-CH hand lift (CH-Plug)

Manufacturer P/N

571-01305-04

Part Number

4.666 129

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core HL G3 hand lift (EU-Plug)

Manufacturer P/N

571-01300-00

Part Number

4.666 086

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core HL G3B XL-CH hand lift (CH-Plug)

Manufacturer P/N

571-01315-04

Part Number

4.666 134

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core HL G3 XL-UK hand lift (UK-Plug)

Manufacturer P/N

571-01305-03

Part Number

4.666 109

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core HL G3B-US hand lift (US-Plug) 115V 50/60Hz

Manufacturer P/N

571-01310-01

Part Number

6.492 697

Manufacturer

Heidolph

Cooling surface

1400 cm²

More items to explore

Rotary Evaporators Hei-VAP Core, with motor lift, cold trap

ProductPlug typeTypeMfr#Part#AvailabilityPrice
EUG5B572-01510-004.666 103$11,763.51
EUG5572-01500-004.666 098$10,886.43
UKG5572-01500-034.666 120$10,886.43
UKG5B572-01510-034.666 125$11,763.51
CHG5B572-01510-044.666 145$11,763.51
CHG5572-01500-044.666 140$10,886.43

Rotary Evaporators Hei-VAP Core Basic Package

ProductPlug typeTypeMfr#Part#AvailabilityPrice
EUHei-VAP Core Basic571-34300-004.669 055$14,786.34
CHHei-VAP Core Basic571-34300-044.703 311$14,786.34
UKHei-VAP Core Basic571-34300-034.703 310$14,786.34
