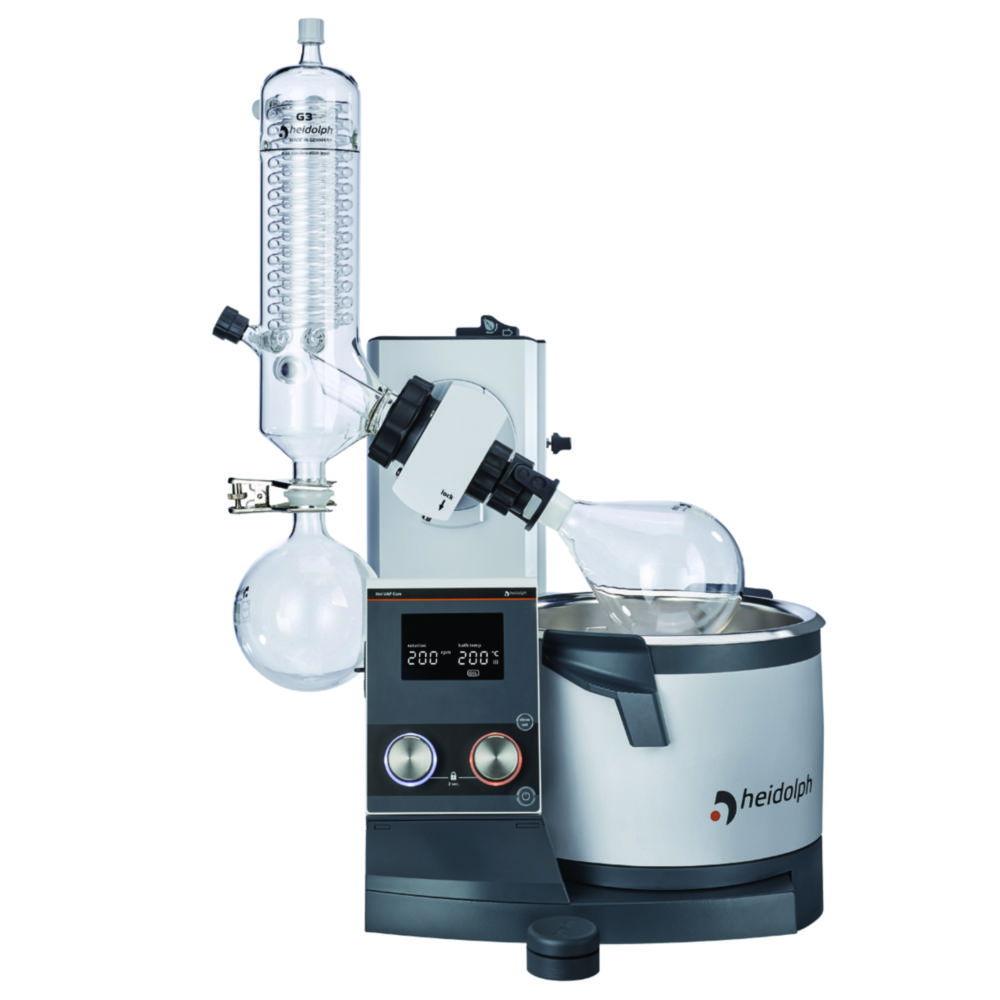

Heidolph Rotary Evaporator Hei-VAP Core HL G3B XL-CH Hand Lift (CH-Plug)

Brand:Heidolph

Cooling surface

Dimensions (WxDxH)

Glassware

Height

Max. voltage

Plug type

Power supply

Type

Specifications

Compare models
HS Code #
84194000
Condenser
Vertical
Cooling surface
2200 cm²
Depth
477 mm
Dimensions (WxDxH)
739 x 477 x 920 mm
Glassware
Coated
Height
920 mm
Lift
Manual
Max. speed
280 1/min
Max. temperature
210 °C
Max. voltage
230 V

$9,968.60

Inc. GST

Available soon

Product description

The Heidolph Rotary Evaporator Hei-VAP Core HL G3B XL-CH Hand Lift (CH-Plug) is designed for high-efficiency solvent evaporation in laboratory settings. Featuring a manual hand lift and CH-Plug compatibility, this model ensures precise height adjustments for distillation, concentration, and solvent recovery processes. Its robust construction and ease of use make it an ideal choice for laboratories seeking reliable, high-performance evaporation equipment.

Key Features:

  • Brand: Heidolph
  • Model: Hei-VAP Core HL G3B XL-CH with hand lift (CH-Plug)
  • Application: Ideal for solvent evaporation, distillation, and concentration
  • Lift Mechanism: Manual hand lift for precise height control
  • Compatibility: CH-Plug for Swiss electrical systems
  • Display: Clear digital display for monitoring current values and separate button to display set values
  • Controls: Two separate knobs for rotation speed and heating temperature with LED ring light system for activity indication
  • Safety: Activated lock feature prevents inadvertent adjustments; residual heat indicator when >50 °C
  • Standby Function: Standby button stops all functions and lifts evaporator flask on motor lift models
  • Ergonomics: Heating bath handles designed for secure grip
  • Adjustability: Immersion depth up to 155 mm; tilt angle from 20° to 80°
  • Sealing: Grease-free operation with innovative sealing technology
  • Ventilation: Ventilation cap with PTFE inlet and free of ground joints; optional replenishment valve available
  • Optional Features: Cable extension and detachable operating panel for use outside closed fume hoods

Scope of Supply:

  • Flask clamp Easy-Clip
  • Vapour tube
  • Ventilation cap
  • Heating bath
  • 1-l receiving flask
  • 1-l evaporating flask
  • Supplied condenser as indicated

This Heidolph Rotary Evaporator offers a reliable and efficient solution for laboratories requiring manual evaporation with precise height adjustments and high-performance results.

Downloads

Accessories

Heating bath liquid

ProductCapacityMax. temperatureMfr#Part#AvailabilityPrice
5 l+220 °C569-00600-004.652 675$2,955.50
20 l+90 °C569-00610-009.812 665—

Evaporator flasks for Rotary Evaporators Hei-VAP Series

ProductNominal capacityUNSPSCMfr#Part#AvailabilityPrice
250 ml41104800514-72000-007.047 221$200.22
500 ml41104800514-73000-007.047 222$219.71
100 ml41104800514-71000-007.047 220$166.56
50 ml41104800514-70000-006.206 660$294.13
1000 ml41104800514-74000-007.047 172$262.24
