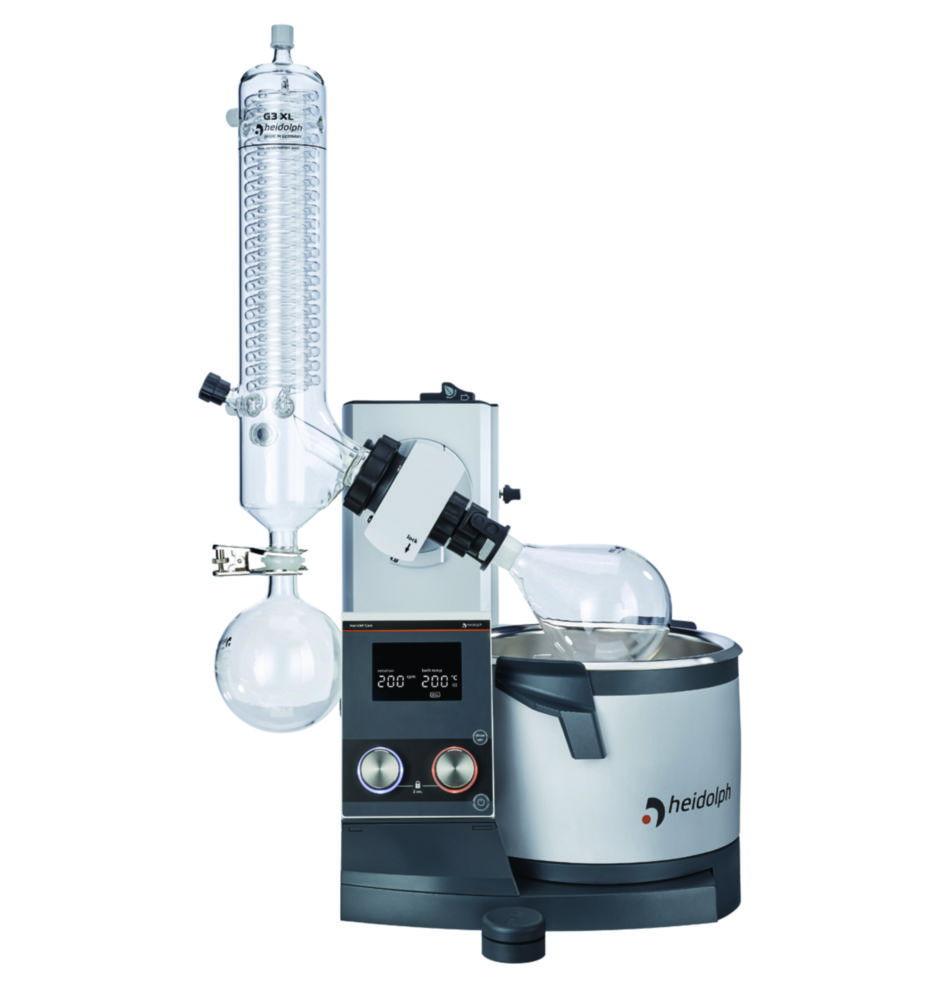

Heidolph Rotary Evaporator Hei-VAP Core HL G3 XL Hand Lift (EU-Plug)
Sold by: John Morris Scientific Pty Ltd
Available Soon
Part #: 4.666 087Manufacturer #: 571-01305-00
Estimated shipping time:Contact us via live chat or via contact us page
Product overview
The Heidolph Rotary Evaporator Hei-VAP Core HL G3 XL with hand lift is engineered for precise and efficient distillation. It features a G3 XL vertical glassware setup, ideal for handling large sample volumes, and a manual hand lift for reliable control in lab environments.
Key Features:
- Brand: Heidolph
- Model: Hei-VAP Core HL G3 XL
- Lift Mechanism: Hand lift for manual operation
- Glassware Configuration: G3 XL vertical condenser
- Plug Type: EU plug
- Application: Suitable for high-volume solvent distillation and evaporation tasks
The Heidolph Hei-VAP Core HL G3 XL is ideal for routine distillation and solvent recovery, combining robust performance with ease of use.
Product Specifications
- HS Code #84194000
- DescriptionG3 XL Vertical condenser
- Glassware setstandard
- Cooling surface2200 cm²
- Depth477 mm
- Dimensions (WxDxH)739 x 477 x 920 mm
- Height920 mm
- Max. speed280 1/min
- Max. temperature210 °C
- Max. voltage230 V
- Max. volume bath4.5 l
- Min. speed10 1/min
- Min. temperatureRT
- Plug typeEU
- Power supply230 V
- Speed10 ... 280 1/min
- TemperatureRT ... 210 °C
- Type of auxiliary energyMains connection
- Width739 mm
