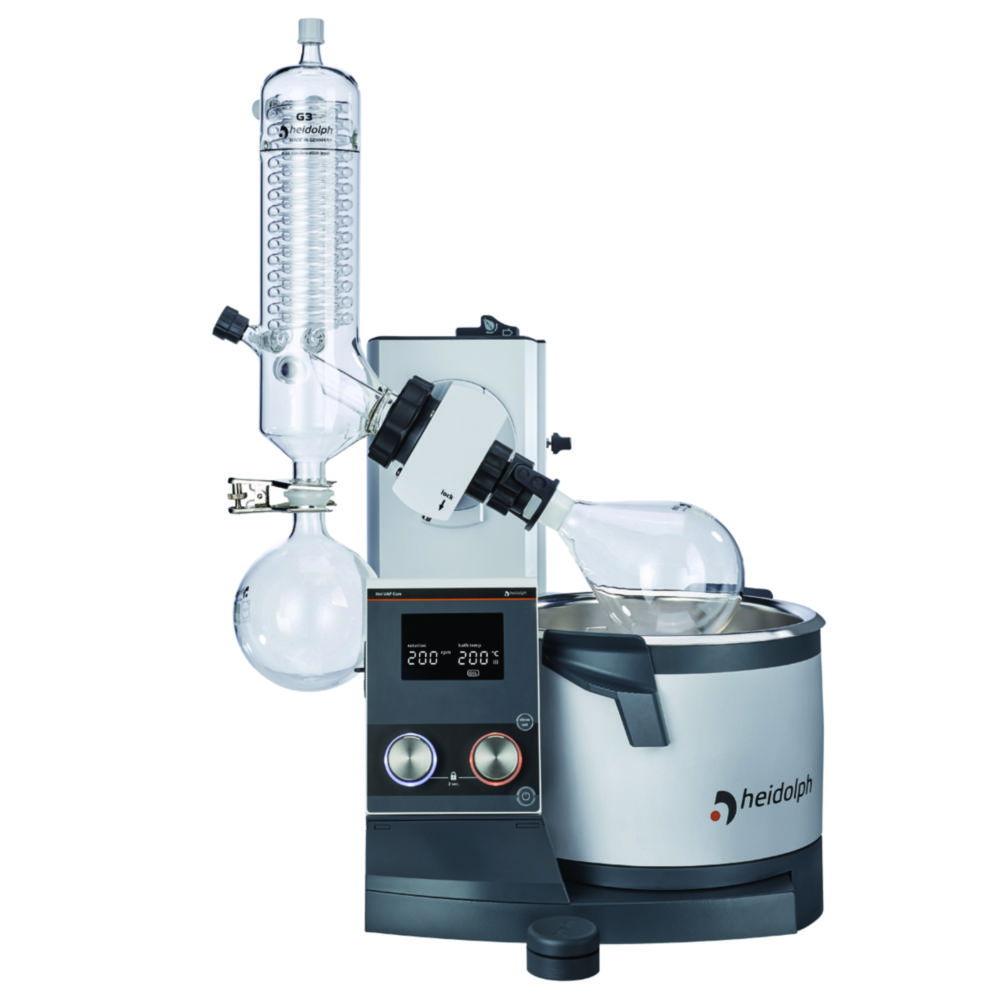

Heidolph Rotary Evaporator Hei-VAP Core HL G3-UK Hand Lift (UK-Plug)

Brand:Heidolph

Cooling surface

Dimensions (WxDxH)

Glassware

Height

Max. voltage

Plug type

Power supply

Type

Specifications

Compare models
HS Code #
84194000
Condenser
Vertical
Cooling surface
1400 cm²
Depth
477 mm
Dimensions (WxDxH)
739 x 477 x 845 mm
Glassware
Without coating
Height
845 mm
Lift
Manual
Max. speed
280 1/min
Max. temperature
210 °C
Max. voltage
230 V

$8,947.99

Inc. GST

Available soon

Product description

The Heidolph Rotary Evaporator Hei-VAP Core HL G3-UK Hand Lift (UK-Plug) is built for efficient and precise solvent evaporation in laboratory environments. Designed with a clear digital display, intuitive manual controls, and Heidolph’s renowned engineering, this model is ideal for distillation, concentration, and solvent recovery processes. The UK plug ensures full compatibility with UK electrical systems.

Key Features:

  • Brand: Heidolph
  • Model: Hei-VAP Core HL G3-UK with hand lift (UK-Plug)
  • Display: Digital screen for monitoring current and set values
  • Controls: Two separate knobs for rotation speed and heating temperature with LED ring indicators
  • Safety Features: Lock function to prevent unintended changes; residual heat warning when temperature exceeds 50 °C
  • Lift Mechanism: Manual hand lift for smooth and precise adjustment
  • Adjustability: Immersion depth up to 155 mm; flask tilt angle adjustable from 20° to 80°
  • Design Benefits: Ergonomic heating bath handles; grease-free sealing for low maintenance; robust fire-resistant aluminum housing
  • Optional Compatibility: PTFE inlet ventilation cap with optional replenishment valve; detachable operating panel available with optional cable extension

Scope of Supply:

  • Flask clamp Easy-Clip
  • Vapour tube
  • Ventilation cap
  • Heating bath
  • 1-litre receiving flask
  • 1-litre evaporating flask
  • Supplied condenser as indicated

The Hei-VAP Core HL G3-UK rotary evaporator delivers reliability, safety, and precision—making it an essential instrument for laboratories across the UK performing routine and demanding solvent evaporation tasks.

Accessories

Heating bath liquid

ProductCapacityMax. temperatureMfr#Part#AvailabilityPrice
5 l+220 °C569-00600-004.652 675$2,955.50
20 l+90 °C569-00610-009.812 665—

Evaporator flasks for Rotary Evaporators Hei-VAP Series

ProductNominal capacityUNSPSCMfr#Part#AvailabilityPrice
250 ml41104800514-72000-007.047 221$200.22
500 ml41104800514-73000-007.047 222$219.71
100 ml41104800514-71000-007.047 220$166.56
50 ml41104800514-70000-006.206 660$294.13
1000 ml41104800514-74000-007.047 172$262.24

Compare similar models

Rotary Evaporator Hei-VAP Core HL G3-UK hand lift (UK-Plug)

Manufacturer P/N

571-01300-03

Part Number

4.666 108

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core HL G3 XL hand lift (EU-Plug)

Manufacturer P/N

571-01305-00

Part Number

4.666 087

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core HL G3B hand lift (EU-Plug)

Manufacturer P/N

571-01310-00

Part Number

4.666 091

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core HL G3B-UK hand lift (UK-Plug)

Manufacturer P/N

571-01310-03

Part Number

4.666 113

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core HL G3B XL hand lift (EU-Plug)

Manufacturer P/N

571-01315-00

Part Number

4.666 092

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core HL G3-CH hand lift (CH-Plug)

Manufacturer P/N

571-01300-04

Part Number

4.666 128

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core HL G3B XL-UK hand lift (UK-Plug)

Manufacturer P/N

571-01315-03

Part Number

4.666 114

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core HL G3B-CH hand lift (CH-Plug)

Manufacturer P/N

571-01310-04

Part Number

4.666 133

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core HL G3 XL-CH hand lift (CH-Plug)

Manufacturer P/N

571-01305-04

Part Number

4.666 129

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core HL G3 hand lift (EU-Plug)

Manufacturer P/N

571-01300-00

Part Number

4.666 086

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core HL G3B XL-CH hand lift (CH-Plug)

Manufacturer P/N

571-01315-04

Part Number

4.666 134

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core HL G3 XL-UK hand lift (UK-Plug)

Manufacturer P/N

571-01305-03

Part Number

4.666 109

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core HL G3B-US hand lift (US-Plug) 115V 50/60Hz

Manufacturer P/N

571-01310-01

Part Number

6.492 697

Manufacturer

Heidolph

Cooling surface

1400 cm²

More items to explore

Rotary Evaporators Hei-VAP Core, with motor lift, cold trap

ProductPlug typeTypeMfr#Part#AvailabilityPrice
EUG5B572-01510-004.666 103$11,763.51
EUG5572-01500-004.666 098$10,886.43
UKG5572-01500-034.666 120$10,886.43
UKG5B572-01510-034.666 125$11,763.51
CHG5B572-01510-044.666 145$11,763.51
CHG5572-01500-044.666 140$10,886.43

Rotary Evaporators Hei-VAP Core Basic Package

ProductPlug typeTypeMfr#Part#AvailabilityPrice
EUHei-VAP Core Basic571-34300-004.669 055$14,786.34
CHHei-VAP Core Basic571-34300-044.703 311$14,786.34
UKHei-VAP Core Basic571-34300-034.703 310$14,786.34
