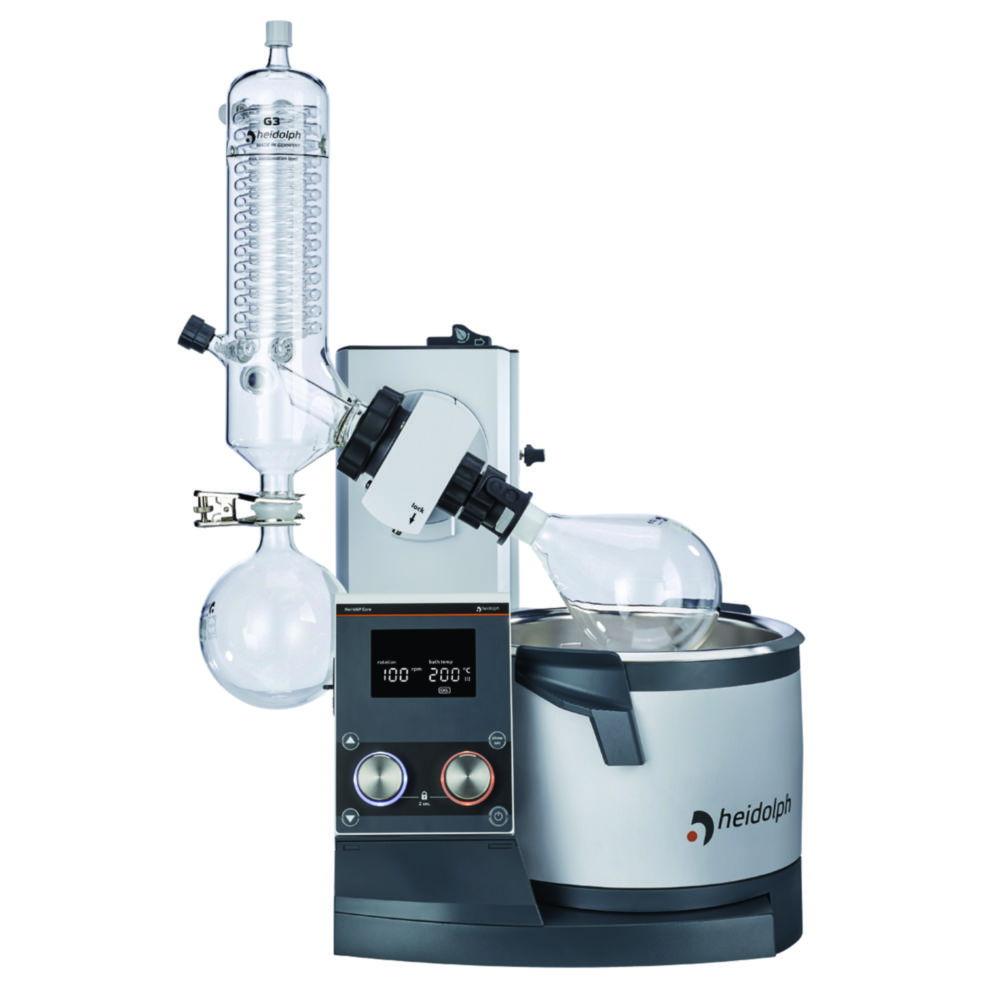

Heidolph Rotary Evaporator Hei-VAP Core ML G3-UK, Motor Lift (UK-Plug)

Brand:Heidolph

Cooling surface

Glassware

Plug type

Type

Specifications

Compare models
HS Code #
84194000
Cooling surface
1400 cm²
Depth
432 mm
Dimensions (WxDxH)
739 x 432 x 845 mm
Glassware
Without coating
Height
845 mm
Lift
Electrical
Max. speed
280 1/min
Max. temperature
210 °C
Max. voltage
230 V
Max. volume bath
4.5 l

$9,465.38

Inc. GST

Available soon

Product description

The Heidolph Rotary Evaporator Hei-VAP Core ML G3-UK with motor lift is designed for high-efficiency solvent distillation and recovery in laboratory settings. Featuring a UK plug and the G3-UK glassware configuration, this rotary evaporator offers exceptional performance for both small and large distillation tasks. The motor lift ensures smooth and automatic operation for better control over the distillation process.

Key Features:

  • Brand: Heidolph
  • Model: Hei-VAP Core ML G3-UK
  • Lift Mechanism: Motor lift for automatic operation
  • Glassware Configuration: G3-UK for effective solvent distillation
  • Plug Type: UK plug
  • Application: Ideal for high-volume solvent distillation and laboratory processes
  • Display: Clear digital display for monitoring current values; separate button for viewing set values
  • Controls: Two knobs for adjusting rotation speed and heating temperature with LED ring lights for activity indication
  • Safety: Activated lock to prevent unintended adjustments; residual heat indicator for temperatures above 50 °C
  • Standby Function: Stops all functions and lifts the evaporator flask from the heating bath (motor lift models only)
  • Ergonomics: Heating bath features ergonomically designed handles for safe and easy handling
  • Adjustability: Immersion depth adjustable up to 155 mm; tilt angle adjustable from 20° to 80°
  • Sealing: Grease-free operation enabled by advanced sealing technology
  • Ventilation Cap: PTFE inlet; free of ground joints; optional replenishment valve available
  • Optional Accessories: Cable extension; detachable control panel for external use (e.g., outside fume hoods)

Scope of Supply:

  • Flask clamp Easy-Clip
  • Vapour tube
  • Ventilation cap
  • Heating bath
  • 1-litre receiving flask
  • 1-litre evaporating flask
  • Supplied condenser as indicated

The Heidolph Hei-VAP Core ML G3-UK rotary evaporator offers precise and reliable results for laboratory solvent recovery and evaporation, ensuring efficiency and ease of use.

Downloads

Accessories

Heating bath liquid

ProductCapacityMax. temperatureMfr#Part#AvailabilityPrice
5 l+220 °C569-00600-004.652 675$2,955.50
20 l+90 °C569-00610-009.812 665—

Evaporator flasks for Rotary Evaporators Hei-VAP Series

ProductNominal capacityUNSPSCMfr#Part#AvailabilityPrice
250 ml41104800514-72000-007.047 221$200.22
500 ml41104800514-73000-007.047 222$219.71
100 ml41104800514-71000-007.047 220$166.56
50 ml41104800514-70000-006.206 660$294.13
1000 ml41104800514-74000-007.047 172$262.24

Compare similar models

Rotary Evaporator Hei-VAP Core ML G3-UK motor lift (UK-Plug)

Manufacturer P/N

572-01300-03

Part Number

4.666 118

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core ML G3 XL motor lift (EU-Plug)

Manufacturer P/N

572-01305-00

Part Number

4.666 097

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core ML G3 motor lift (EU-Plug)

Manufacturer P/N

572-01300-00

Part Number

4.666 096

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core ML G3B motor lift (EU-Plug)

Manufacturer P/N

572-01310-00

Part Number

4.666 101

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core ML G3B XL motor lift (EU-Plug)

Manufacturer P/N

572-01315-00

Part Number

4.666 102

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core ML G3 XL-UK motor lift (UK-Plug)
Available soon
Heidolph Hei-VAP Core ML G3 XL-UK Motor Lift (UK-Plug)

$10,085.54

Inc. GST

Manufacturer P/N

572-01305-03

Part Number

4.666 119

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core ML G3 XL-CH motor lift (CH-Plug)

Manufacturer P/N

572-01305-04

Part Number

4.666 139

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core ML G3B-UK motor lift (UK-Plug)

Manufacturer P/N

572-01310-03

Part Number

4.666 123

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core ML G3B-CH motor lift (CH-Plug)

Manufacturer P/N

572-01310-04

Part Number

4.666 143

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core ML G3-CH motor lift (CH-Plug)

Manufacturer P/N

572-01300-04

Part Number

4.666 138

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core ML G3B XL-CH motor lift (CH-Plug)

Manufacturer P/N

572-01315-04

Part Number

4.666 144

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core ML G3B XL-UK motor lift (UK-Plug)

Manufacturer P/N

572-01315-03

Part Number

4.666 124

Manufacturer

Heidolph

Cooling surface

2200 cm²
