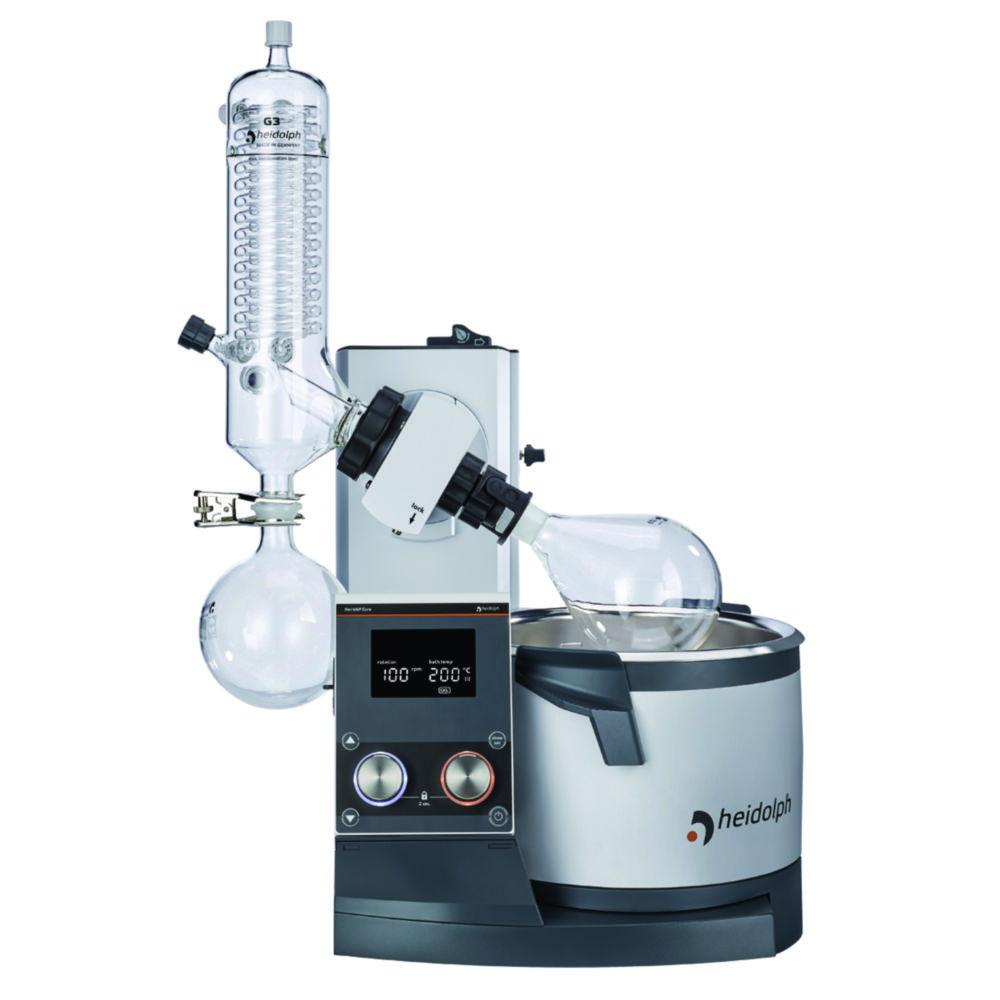

Heidolph Rotary Evaporator Hei-VAP Core ML G3B XL-UK Motor Lift (UK-Plug)
Sold by: John Morris Scientific Pty Ltd
Available Soon
Part #: 4.666 124Manufacturer #: 572-01315-03
Estimated shipping time:Contact us via live chat or via contact us page
See the available (29) variant productsProduct overview
The Heidolph Rotary Evaporator Hei-VAP Core ML G3B XL-UK Motor Lift (UK-Plug) is a high-performance model designed for efficient solvent evaporation in laboratory environments. Featuring a motorized lift mechanism and UK-Plug compatibility, this evaporator provides precise height adjustment with ease. Ideal for distillation, concentration, and solvent recovery, it offers automated operation for consistent and reliable performance in high-throughput laboratory settings.
Key Features:
- Brand: Heidolph
- Model: Hei-VAP Core ML G3B XL-UK with motor lift (UK-Plug)
- Application: Suitable for solvent evaporation, distillation, and concentration tasks
- Lift Mechanism: Motorized lift for automated height control
- Compatibility: UK-Plug for UK electrical systems
- Packaging: Sold individually
This Heidolph Rotary Evaporator is the ideal choice for laboratories that require automated and precise solvent evaporation for high-efficiency applications.
Product Specifications
- HS Code #84194000
- DescriptionG3B XL Vertical condenser
- Glassware setcoated
- Cooling surface2200 cm²
- Depth407 mm
- Dimensions (WxDxH)739 x 407 x 920 mm
- Height920 mm
- Max. speed280 1/min
- Max. temperature210 °C
- Max. voltage230 V
- Max. volume bath4.5 l
- Min. speed10 1/min
- Min. temperatureRT
- Plug typeUK
- Power supply230 V
- Speed10 ... 280 1/min
- TemperatureRT ... 210 °C
- Width739 mm
- Manufacturer Article Number572-01315-03
Heidolph Rotary Evaporator Hei-VAP Core ML G3B XL-UK Motor Lift (UK-Plug)
$10,939.03
