Representative Image

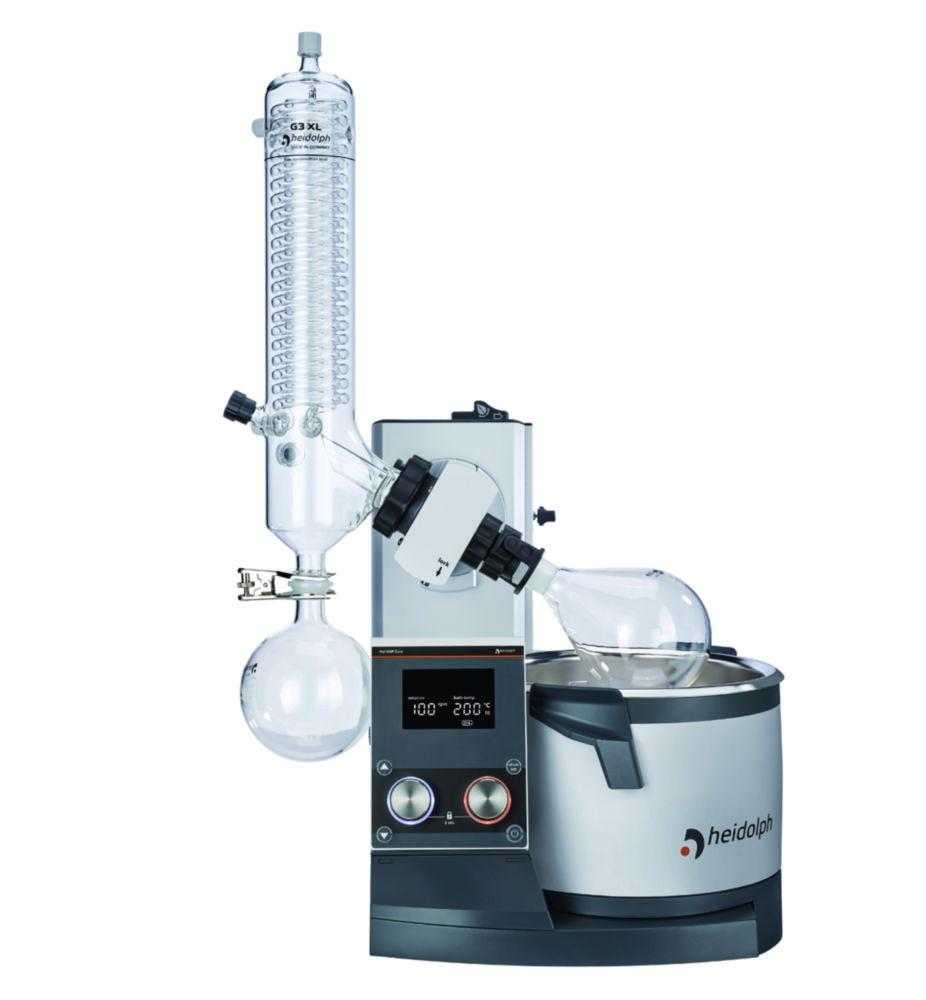

Heidolph Rotary Evaporator Hei-VAP Core ML G3B XL, Motor Lift (EU-Plug)

Brand:Heidolph

Cooling surface

Glassware

Plug type

Type

Specifications

Compare models
HS Code #
84194000
Cooling surface
2200 cm²
Glassware
Coated
Lift
Electrical
Max. speed
280 1/min
Max. temperature
210 °C
Max. voltage
230 V
Max. volume bath
4.5 l
Min. speed
10 1/min
Min. temperature
RT
Plug type
EU

$10,487.76

Inc. GST

Available soon

Product description

The Heidolph Rotary Evaporator Hei-VAP Core ML G3B XL with motor lift is designed for efficient, high-performance solvent distillation in laboratory environments. Featuring the G3B XL glassware configuration, this model provides optimal results for large-volume evaporation tasks. The motor lift mechanism ensures precise control and ease of operation for both small and large samples.

Key Features:

  • Brand: Heidolph
  • Model: Hei-VAP Core ML G3B XL
  • Lift Mechanism: Motor lift for automatic operation
  • Glassware Configuration: G3B XL for optimal evaporation efficiency
  • Plug Type: EU plug
  • Application: Ideal for high-volume solvent distillation and recovery in laboratories
  • Display: Clear digital display for monitoring current values; separate button to show set values
  • Controls: Two dedicated knobs for rotation speed and heating temperature, with LED ring lights for activity indication
  • Safety: Lock feature prevents unintended adjustments; residual heat warning activates at temperatures above 50 °C
  • Standby Function: Stops all operations and automatically lifts the evaporator flask from the heating bath (motor lift models only)
  • Ergonomics: Heating bath includes ergonomically optimized handles for comfortable and secure handling
  • Adjustability: Immersion depth adjustable up to 155 mm; tilt angle of evaporating flask adjustable from 20° to 80°
  • Sealing Technology: Grease-free, maintenance-friendly operation with advanced sealing technology
  • Ventilation Cap: Equipped with PTFE inlet and free of ground joints; optionally available with replenishment valve
  • Optional Accessories: Detachable control panel for external operation (e.g., outside fume hoods); cable extension available

Scope of Supply:

  • Flask clamp Easy-Clip
  • Vapour tube
  • Ventilation cap
  • Heating bath
  • 1-litre receiving flask
  • 1-litre evaporating flask
  • Supplied condenser as indicated

The Heidolph Hei-VAP Core ML G3B XL rotary evaporator offers reliable and precise solvent removal for various laboratory processes, ensuring superior performance and ease of use.

Downloads

Accessories

Heating bath liquid

ProductCapacityMax. temperatureMfr#Part#AvailabilityPrice
5 l+220 °C569-00600-004.652 675$2,955.50
20 l+90 °C569-00610-009.812 665—

Evaporator flasks for Rotary Evaporators Hei-VAP Series

ProductNominal capacityUNSPSCMfr#Part#AvailabilityPrice
250 ml41104800514-72000-007.047 221$200.22
500 ml41104800514-73000-007.047 222$219.71
100 ml41104800514-71000-007.047 220$166.56
50 ml41104800514-70000-006.206 660$294.13
1000 ml41104800514-74000-007.047 172$262.24

Compare similar models

Rotary Evaporator Hei-VAP Core ML G3B XL motor lift (EU-Plug)

Manufacturer P/N

572-01315-00

Part Number

4.666 102

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core ML G3 XL motor lift (EU-Plug)

Manufacturer P/N

572-01305-00

Part Number

4.666 097

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core ML G3 motor lift (EU-Plug)

Manufacturer P/N

572-01300-00

Part Number

4.666 096

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core ML G3B motor lift (EU-Plug)

Manufacturer P/N

572-01310-00

Part Number

4.666 101

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core ML G3-UK motor lift (UK-Plug)

Manufacturer P/N

572-01300-03

Part Number

4.666 118

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core ML G3 XL-UK motor lift (UK-Plug)
Available soon
Heidolph Hei-VAP Core ML G3 XL-UK Motor Lift (UK-Plug)

$10,085.54

Inc. GST

Manufacturer P/N

572-01305-03

Part Number

4.666 119

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core ML G3 XL-CH motor lift (CH-Plug)

Manufacturer P/N

572-01305-04

Part Number

4.666 139

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core ML G3B-UK motor lift (UK-Plug)

Manufacturer P/N

572-01310-03

Part Number

4.666 123

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core ML G3B-CH motor lift (CH-Plug)

Manufacturer P/N

572-01310-04

Part Number

4.666 143

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core ML G3-CH motor lift (CH-Plug)

Manufacturer P/N

572-01300-04

Part Number

4.666 138

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core ML G3B XL-CH motor lift (CH-Plug)

Manufacturer P/N

572-01315-04

Part Number

4.666 144

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core ML G3B XL-UK motor lift (UK-Plug)

Manufacturer P/N

572-01315-03

Part Number

4.666 124

Manufacturer

Heidolph

Cooling surface

2200 cm²

Frequently asked questions

It is designed for efficient, high-performance solvent distillation in laboratory environments. Featuring the G3B XL glassware configuration, this model provides optimal results for large-volume evaporation tasks. The motor lift mechanism ensures precise control and ease of operation for both small and large samples.
