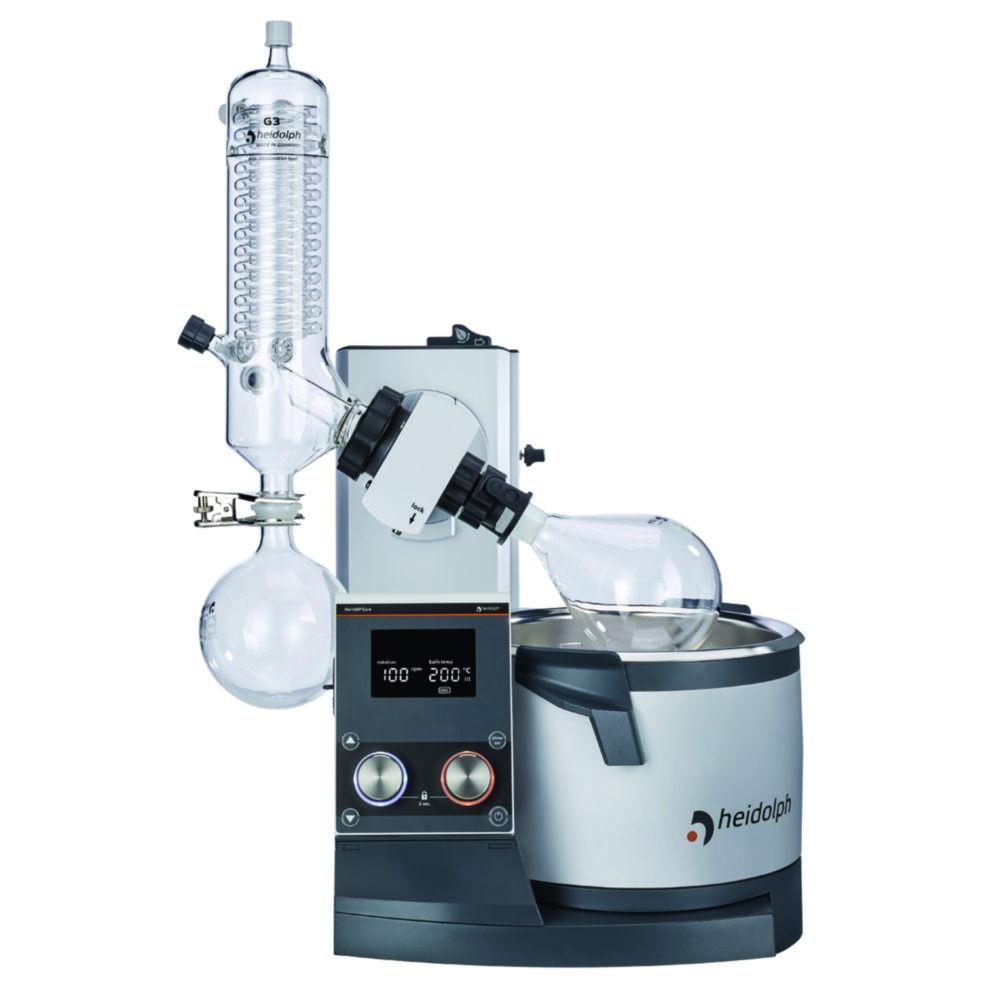

Heidolph Rotary Evaporator Hei-VAP Core ML G3B XL-CH Motor Lift (CH-Plug)

Brand:Heidolph

Cooling surface

Glassware

Plug type

Type

Specifications

Compare models
HS Code #
84194000
Cooling surface
2200 cm²
Glassware
Coated
Lift
Electrical
Max. speed
280 1/min
Max. temperature
210 °C
Max. voltage
230 V
Max. volume bath
4.5 l
Min. speed
10 1/min
Min. temperature
RT
Plug type
CH

$10,487.76

Inc. GST

Available soon

Product description

The Heidolph Rotary Evaporator Hei-VAP Core ML G3B XL-CH Motor Lift (CH-Plug) offers advanced performance for solvent evaporation tasks in laboratories. Equipped with a robust motor lift system and XL configuration, this model delivers high capacity and precision. It is ideal for demanding lab applications such as distillation, concentration, and solvent recovery, ensuring consistent and reproducible results across workflows.

Key Features:

  • Brand: Heidolph
  • Model: Hei-VAP Core ML G3B XL-CH with motor lift (CH-Plug)
  • Application: Ideal for solvent evaporation, distillation, and concentration
  • Configuration: XL version for increased volume capacity
  • Lift Mechanism: Motor lift for automated and precise operation
  • Plug Type: CH plug
  • Display: Clear digital display for current values, with a separate button for displaying set values
  • Controls: Two dedicated knobs for adjusting rotation speed and heating temperature, featuring LED ring lights for operation indication
  • Safety: Activated lock feature prevents accidental changes; residual heat indicator activates above 50 °C
  • Standby Function: Stops all functions and automatically lifts the evaporator flask from the heating bath (motor lift only)
  • Ergonomics: Ergonomically optimized heating bath handles ensure secure grip and comfort
  • Adjustability: Immersion depth adjustable up to 155 mm; flask tilt angle adjustable from 20° to 80°
  • Sealing Technology: Grease-free operation with innovative sealing system
  • Ventilation Cap: PTFE inlet, ground joint-free; optionally available with replenishment valve
  • Optional Accessories: Cable extension; detachable control panel for use outside closed fume hoods

Scope of Supply:

  • Flask clamp Easy-Clip
  • Vapour tube
  • Ventilation cap
  • Heating bath
  • 1-litre receiving flask
  • 1-litre evaporating flask
  • Supplied condenser as indicated

This Heidolph Rotary Evaporator is a powerful and dependable solution for laboratories requiring high-volume solvent evaporation with maximum precision and ease of use.

Downloads

Accessories

Heating bath liquid

ProductCapacityMax. temperatureMfr#Part#AvailabilityPrice
5 l+220 °C569-00600-004.652 675$2,955.50
20 l+90 °C569-00610-009.812 665—

Evaporator flasks for Rotary Evaporators Hei-VAP Series

ProductNominal capacityUNSPSCMfr#Part#AvailabilityPrice
250 ml41104800514-72000-007.047 221$200.22
500 ml41104800514-73000-007.047 222$219.71
100 ml41104800514-71000-007.047 220$166.56
50 ml41104800514-70000-006.206 660$294.13
1000 ml41104800514-74000-007.047 172$262.24

Compare similar models

Rotary Evaporator Hei-VAP Core ML G3B XL-CH motor lift (CH-Plug)

Manufacturer P/N

572-01315-04

Part Number

4.666 144

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core ML G3 XL motor lift (EU-Plug)

Manufacturer P/N

572-01305-00

Part Number

4.666 097

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core ML G3 motor lift (EU-Plug)

Manufacturer P/N

572-01300-00

Part Number

4.666 096

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core ML G3B motor lift (EU-Plug)

Manufacturer P/N

572-01310-00

Part Number

4.666 101

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core ML G3B XL motor lift (EU-Plug)

Manufacturer P/N

572-01315-00

Part Number

4.666 102

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core ML G3-UK motor lift (UK-Plug)

Manufacturer P/N

572-01300-03

Part Number

4.666 118

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core ML G3 XL-UK motor lift (UK-Plug)
Available soon
Heidolph Hei-VAP Core ML G3 XL-UK Motor Lift (UK-Plug)

$10,085.54

Inc. GST

Manufacturer P/N

572-01305-03

Part Number

4.666 119

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core ML G3 XL-CH motor lift (CH-Plug)

Manufacturer P/N

572-01305-04

Part Number

4.666 139

Manufacturer

Heidolph

Cooling surface

2200 cm²

Rotary Evaporator Hei-VAP Core ML G3B-UK motor lift (UK-Plug)

Manufacturer P/N

572-01310-03

Part Number

4.666 123

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core ML G3B-CH motor lift (CH-Plug)

Manufacturer P/N

572-01310-04

Part Number

4.666 143

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core ML G3-CH motor lift (CH-Plug)

Manufacturer P/N

572-01300-04

Part Number

4.666 138

Manufacturer

Heidolph

Cooling surface

1400 cm²

Rotary Evaporator Hei-VAP Core ML G3B XL-UK motor lift (UK-Plug)

Manufacturer P/N

572-01315-03

Part Number

4.666 124

Manufacturer

Heidolph

Cooling surface

2200 cm²
